Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

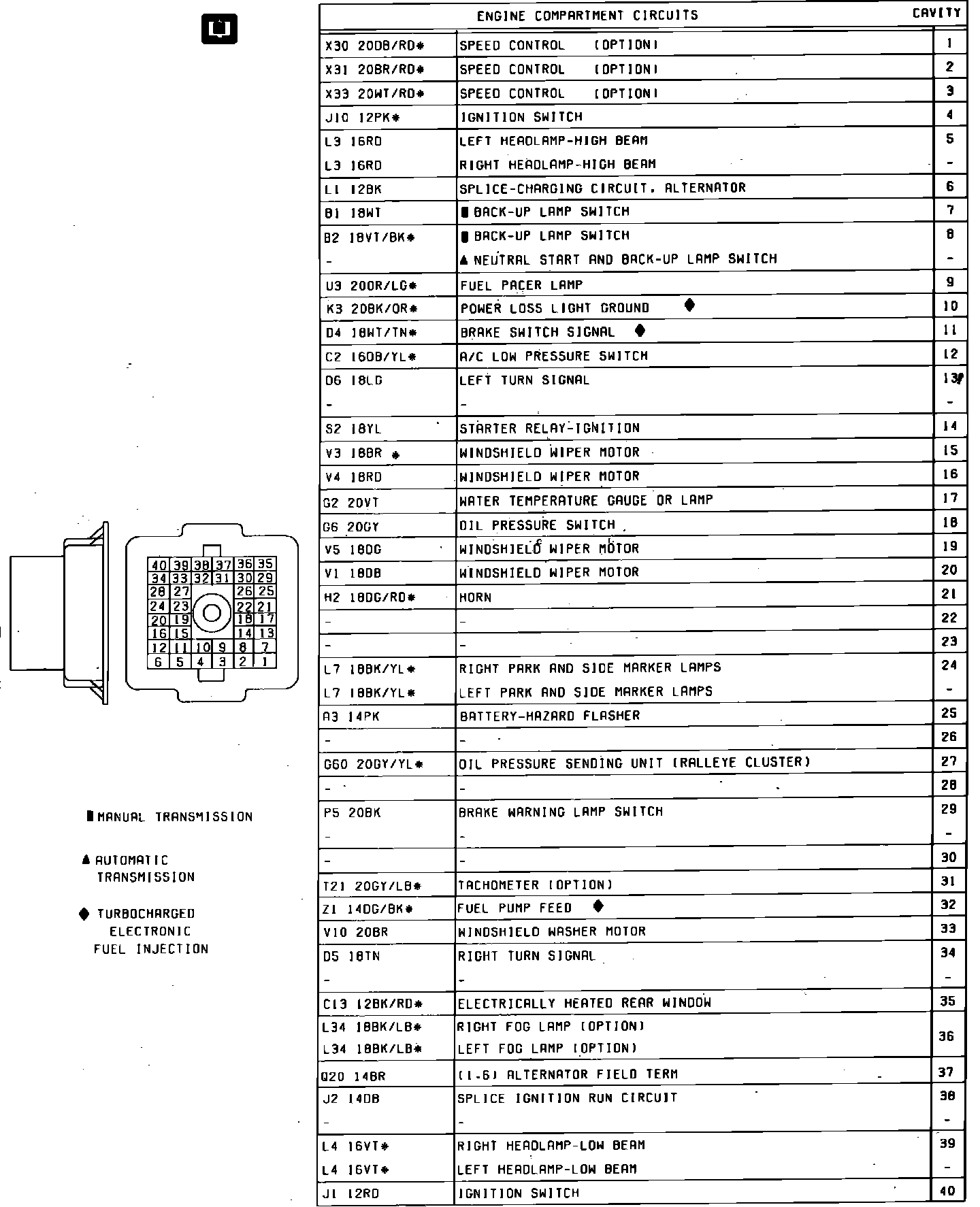

Fig. 4 Bulkhead Connector (40 Way). Engine Side:
