Multiple Junction Connector
>>
Instrument Panel Side
Instrument Panel Side

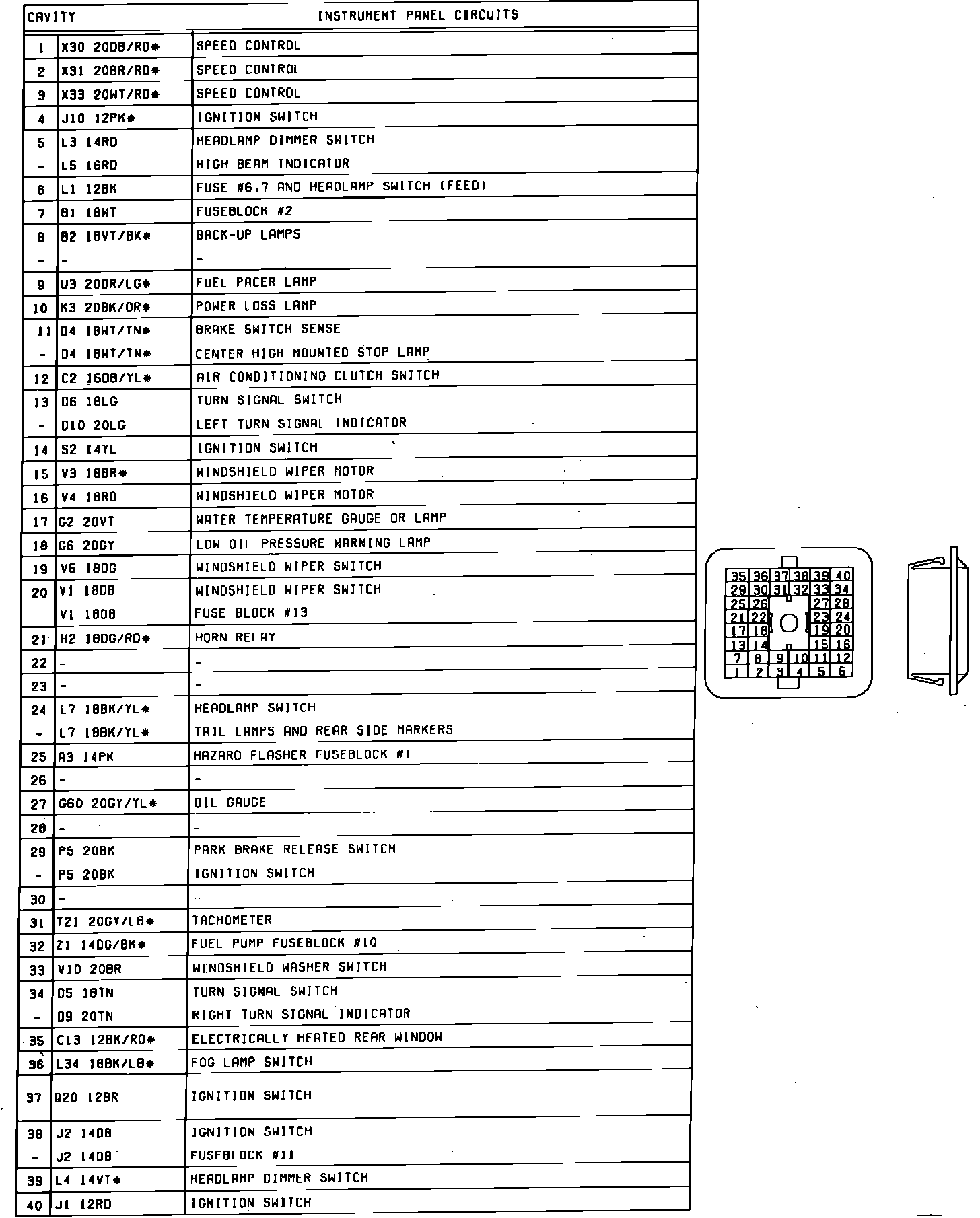

Fig. 4 Bulkhead Connector (40 Way). Instrument Panel Side:
