Turn Signal Switch

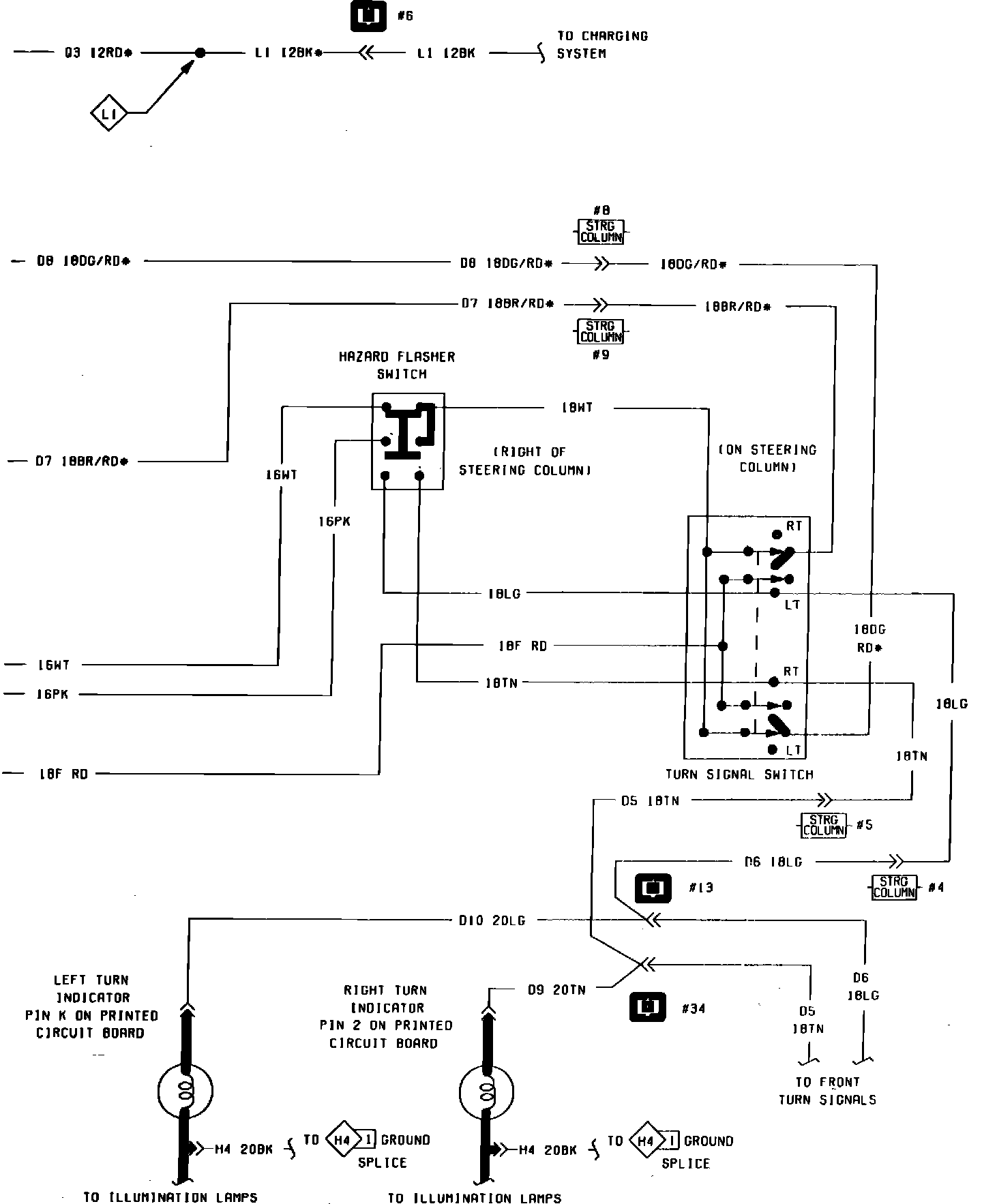

Fig. 39 Turn Signal Switch Wiring Circuit (Part 1 of 2):

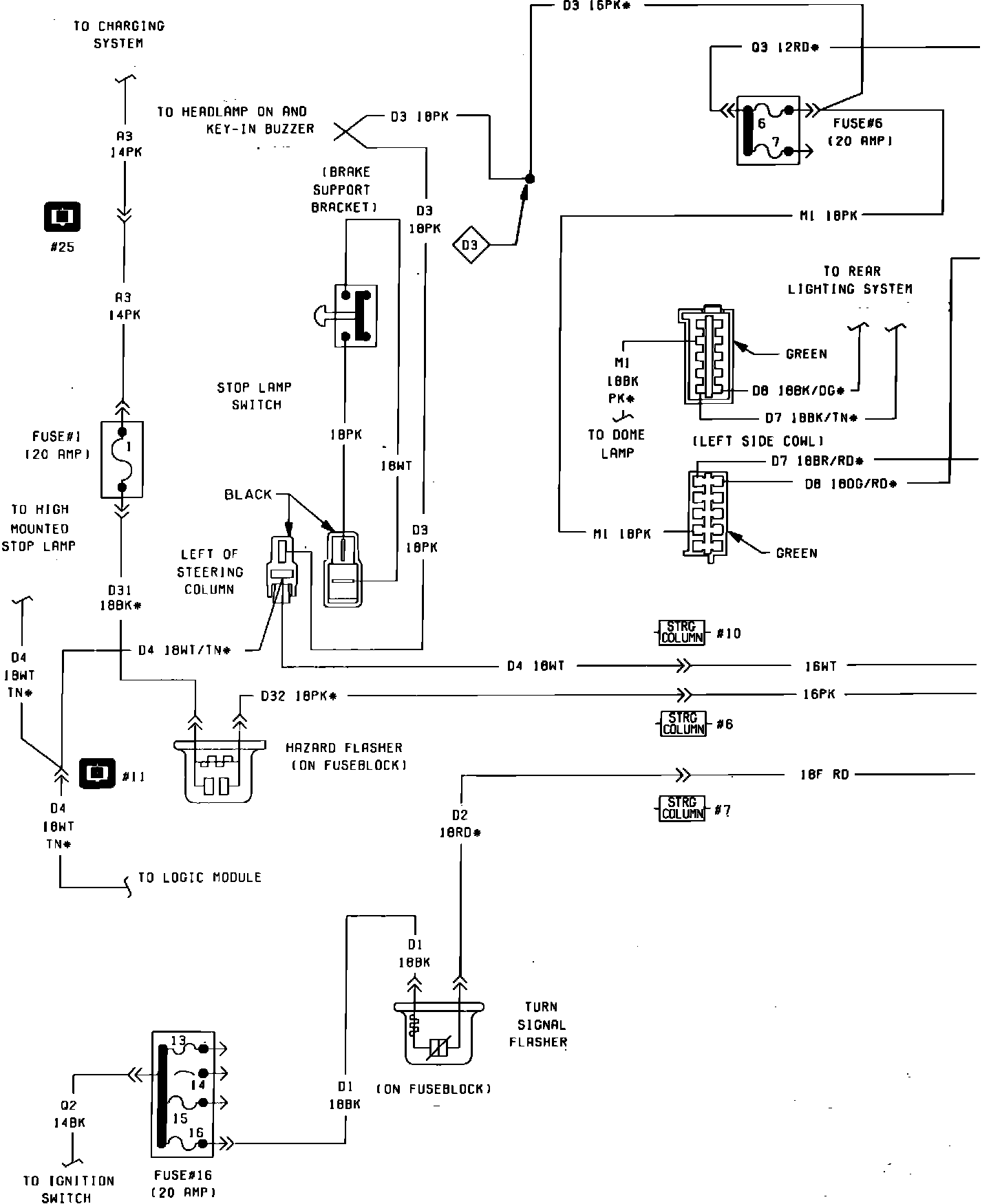

Fig. 39 Turn Signal Switch Wiring Circuit (Part 2 of 2):
