Instrument Cluster / Carrier: Service and Repair

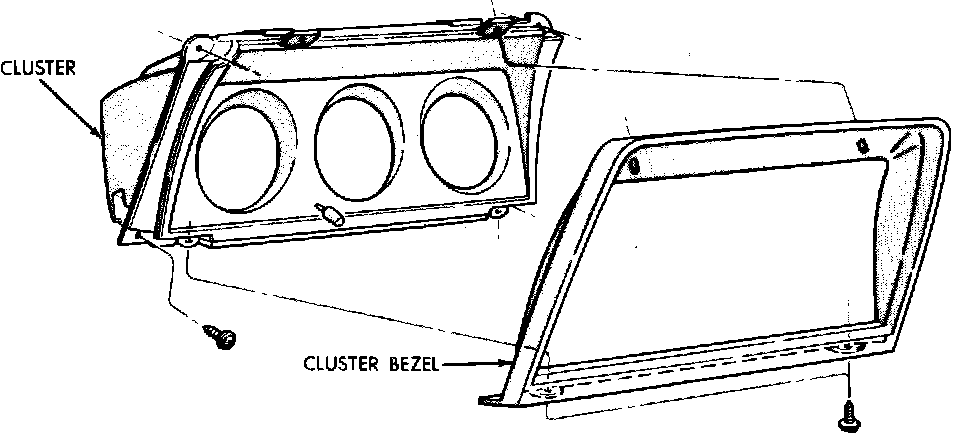

Fig. 16 Instrument cluster & bezel. 1984---88 Charger, Horizon, Omni & Turismo:

1984-88 CHARGER, HORIZON, OMNI & TURISMO

1. Disconnect battery ground cable.
2. Remove 2 lower cluster bezel retaining screws.
3. Allow bezel to drop slightly, then remove bezel.
4. Remove 4 screws securing instrument cluster and pull cluster away from dash.
5. Disconnect electrical connectors and speedometer cable, then remove cluster.
6. Reverse procedure to install.
