Fusible Link: Application and ID

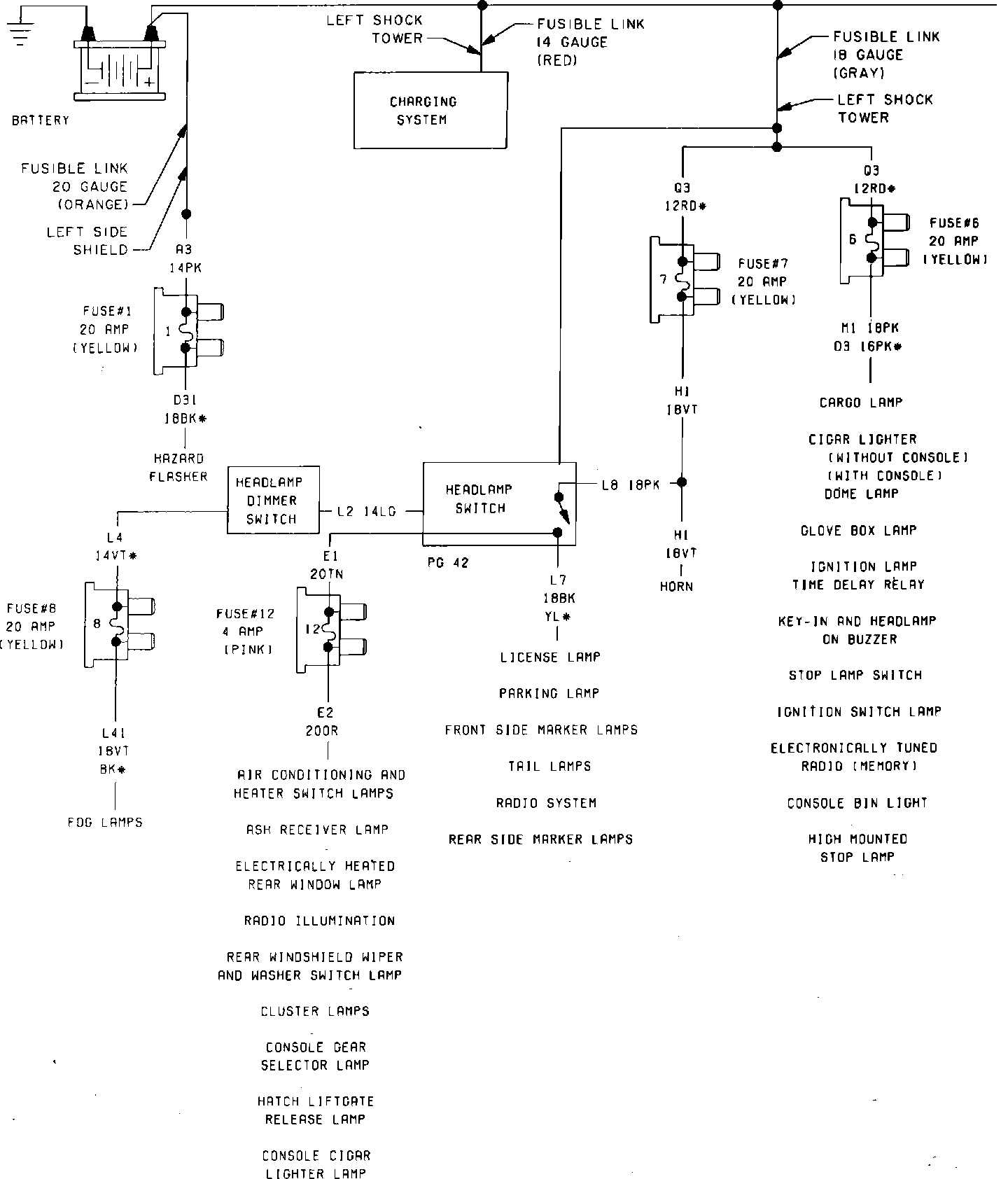

Fig. 21 Fuse Panel Wiring Circuit (Part 1 of 2):
Fig. 21 Fuse Panel Wiring Circuit (Part 2 of 2):
