Operation CHARM: Car repair manuals for everyone.

Home >> Plymouth >> 1986 >> Turismo L4-97 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 1

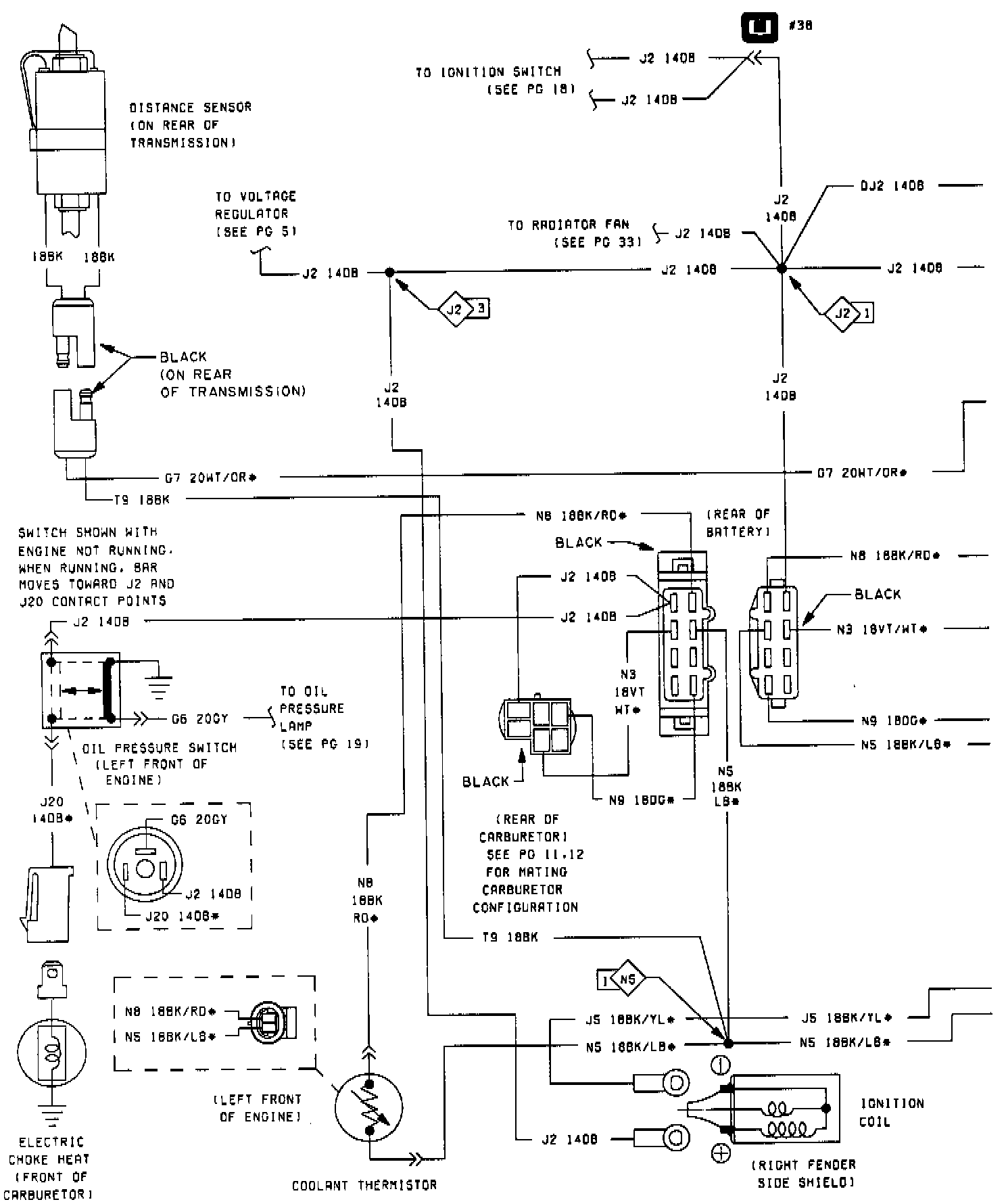

Part 1

Part 1 Of 2:
