Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1986
>>
Turismo L4-97 1.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Engine Compartment Components
Engine Compartment Components

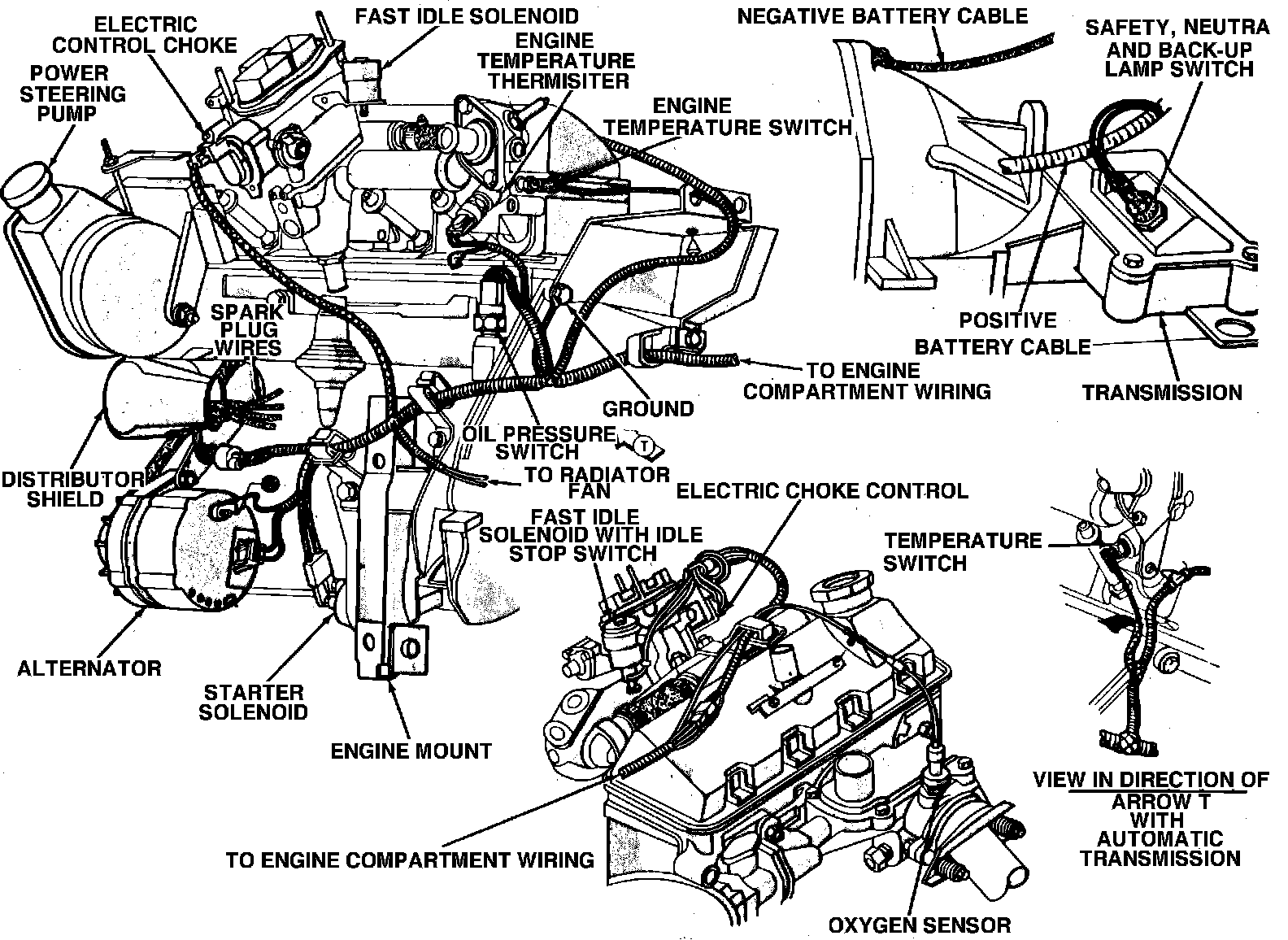

Compartment location. 1983-84 4-97/1.6L engine (1985 - 86 similar):
