Clearance and Design Specifications

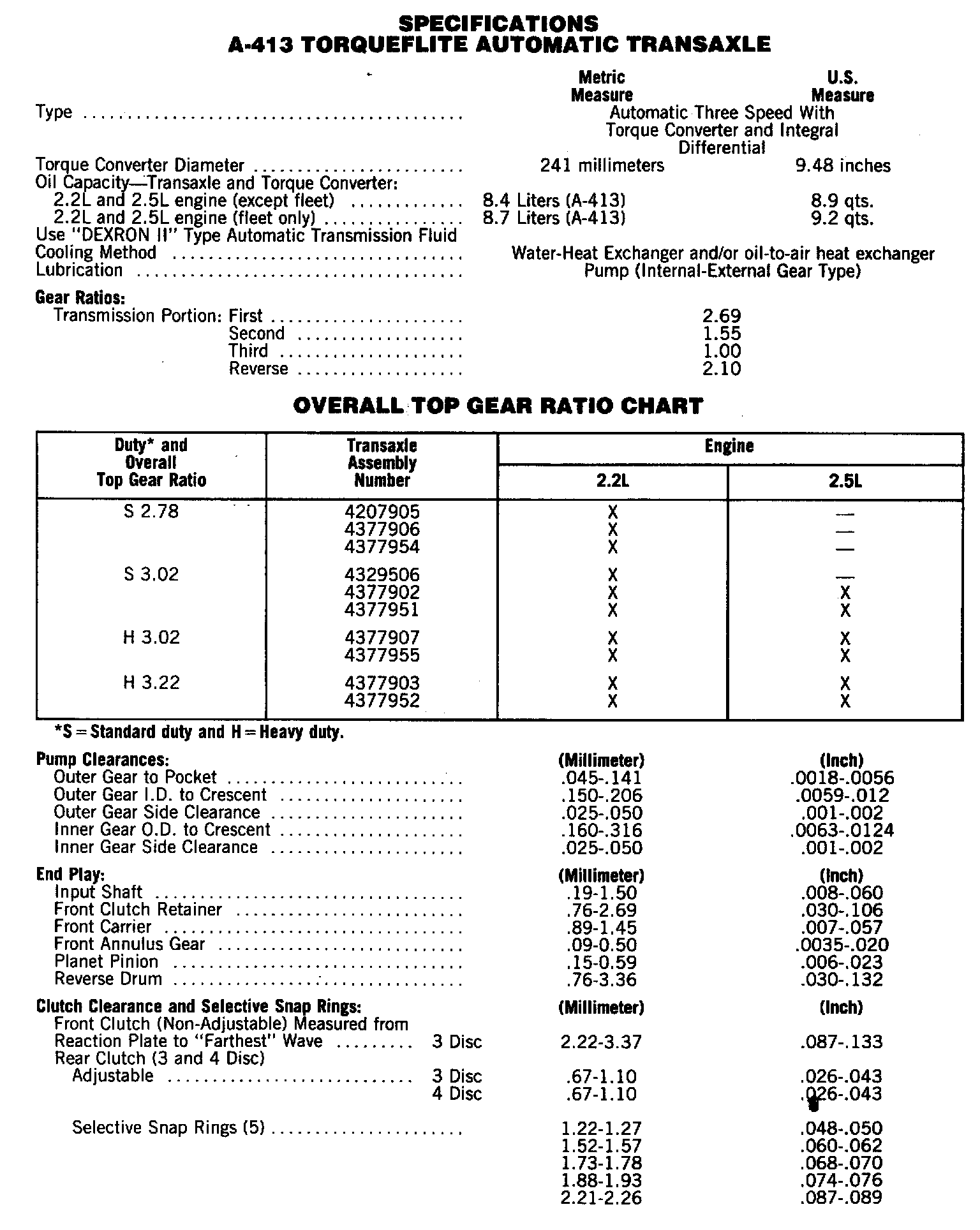

A-413 TORQUEFLITE Transaxle Specifications:

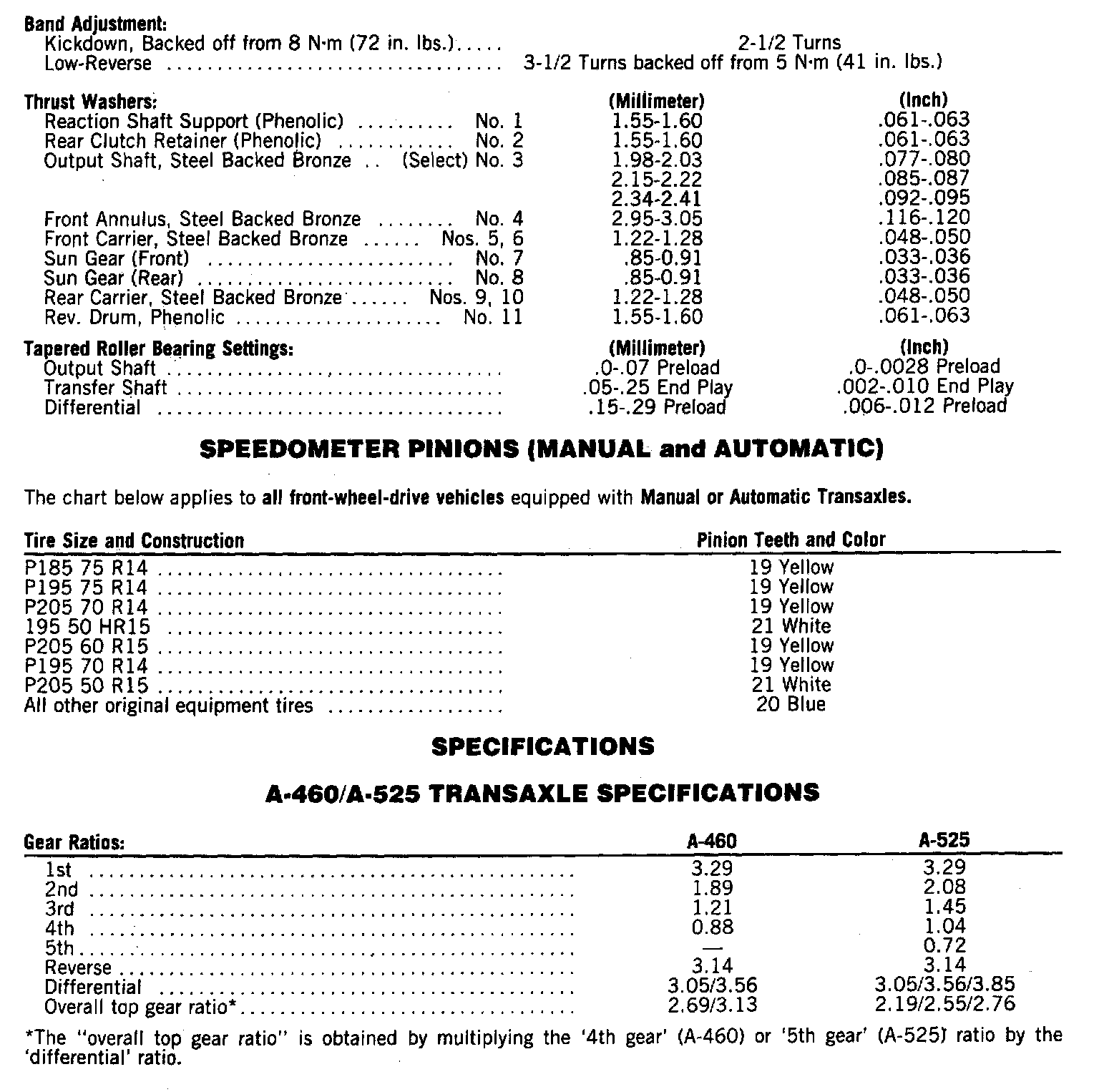

Continued:

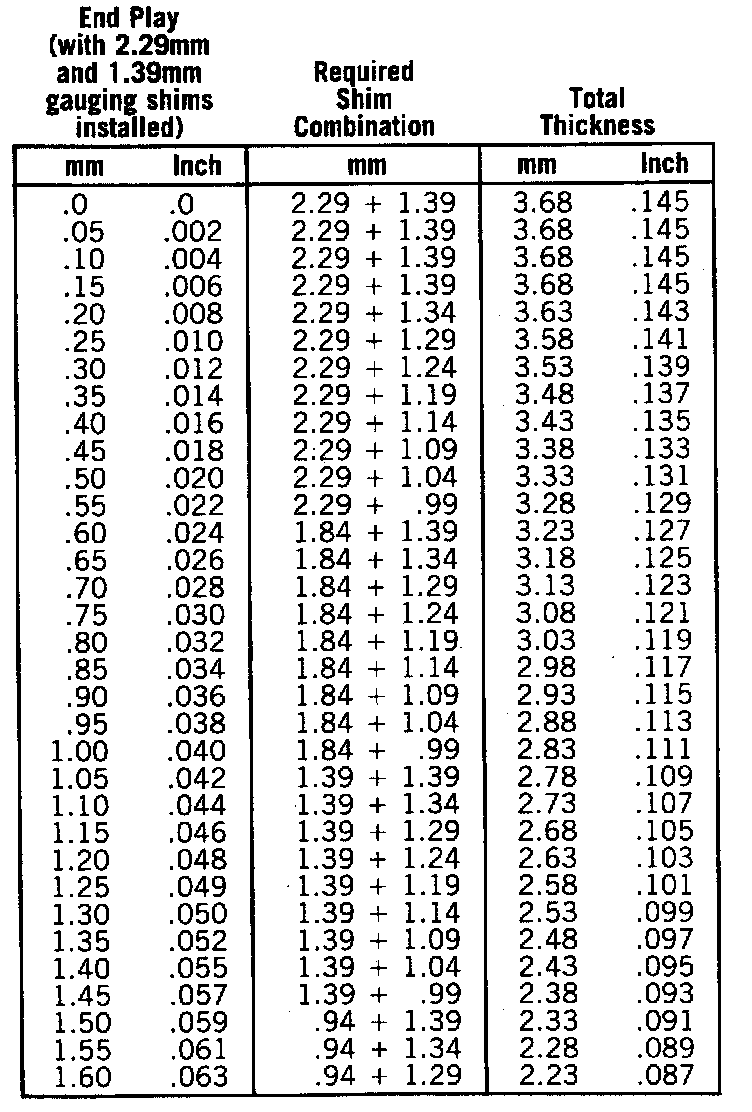

Transfer Bearing Shim Chart:

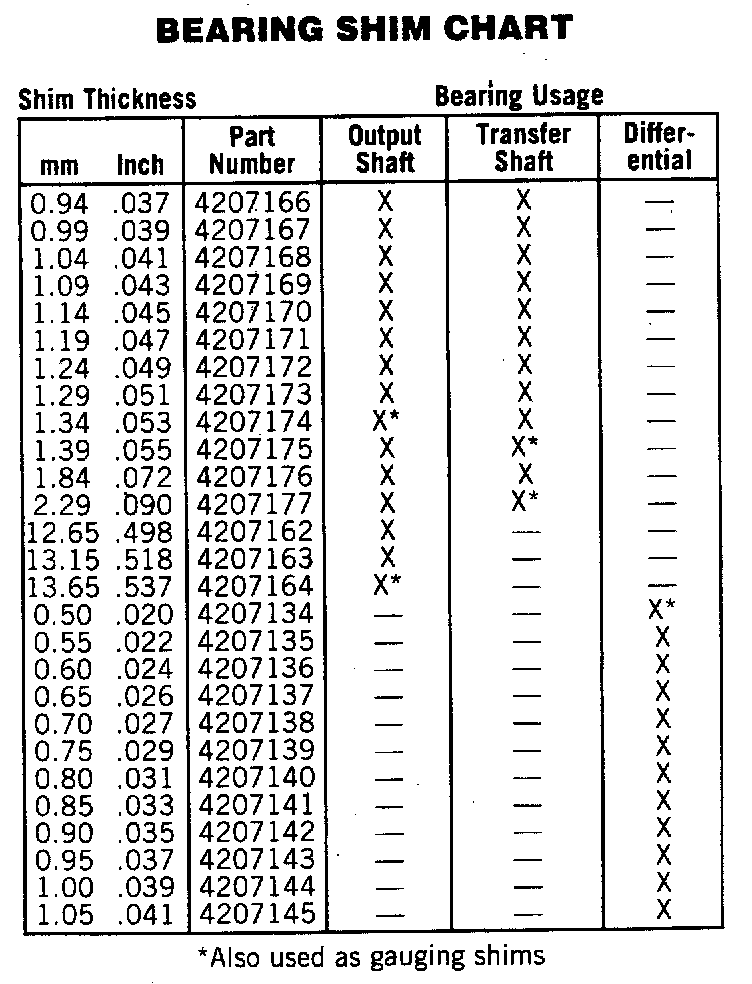

Bearing Shim Chart:

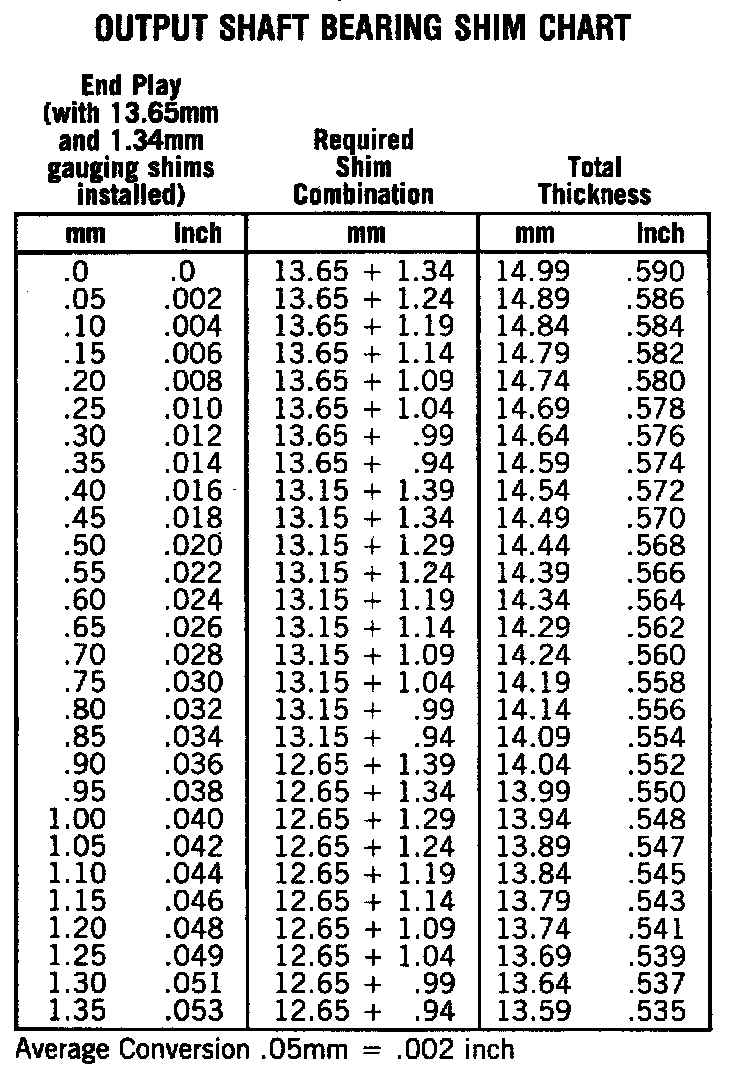

Output Shaft Bearing Shim Chart:





Differential Bearing Shim Chart:
