Cooling System

Air Conditioning & Heater System (Part 1 Of 2):

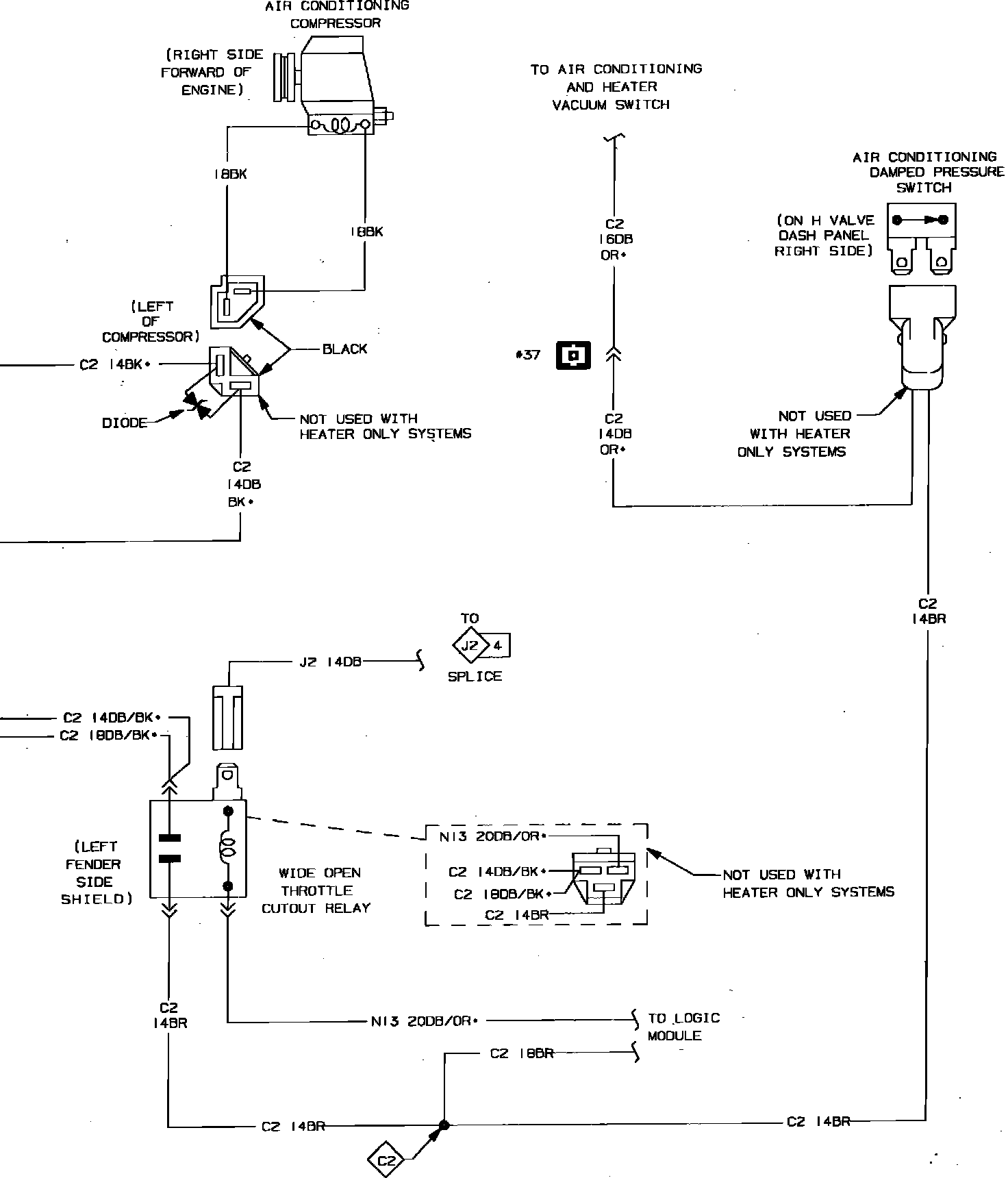

Air Conditioning & Heater System (Part 2 Of 2):
