Heated Glass Element

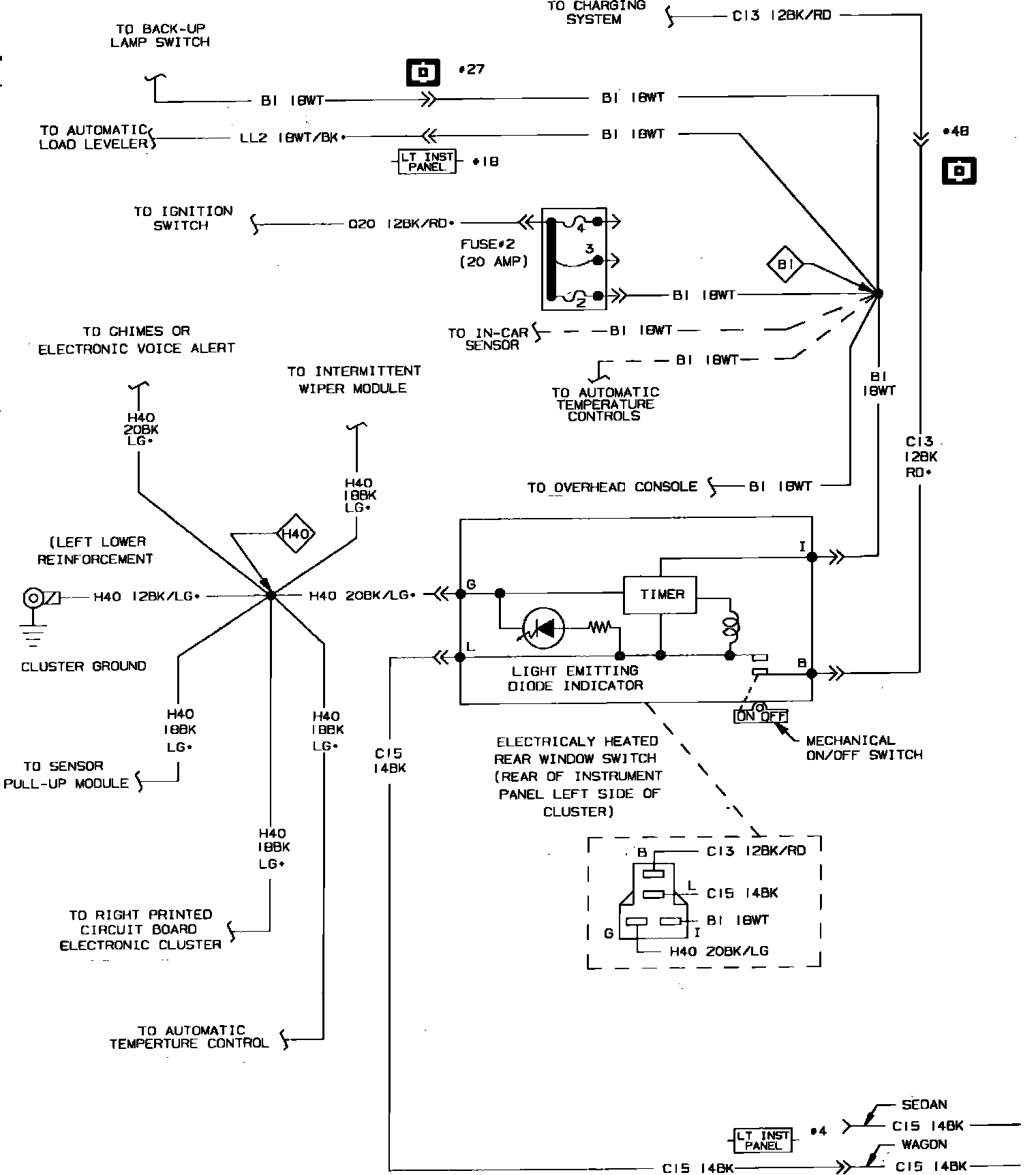

Fig. 37 Heated Rear Window Wiring Circuit (Part 1 Of 2):

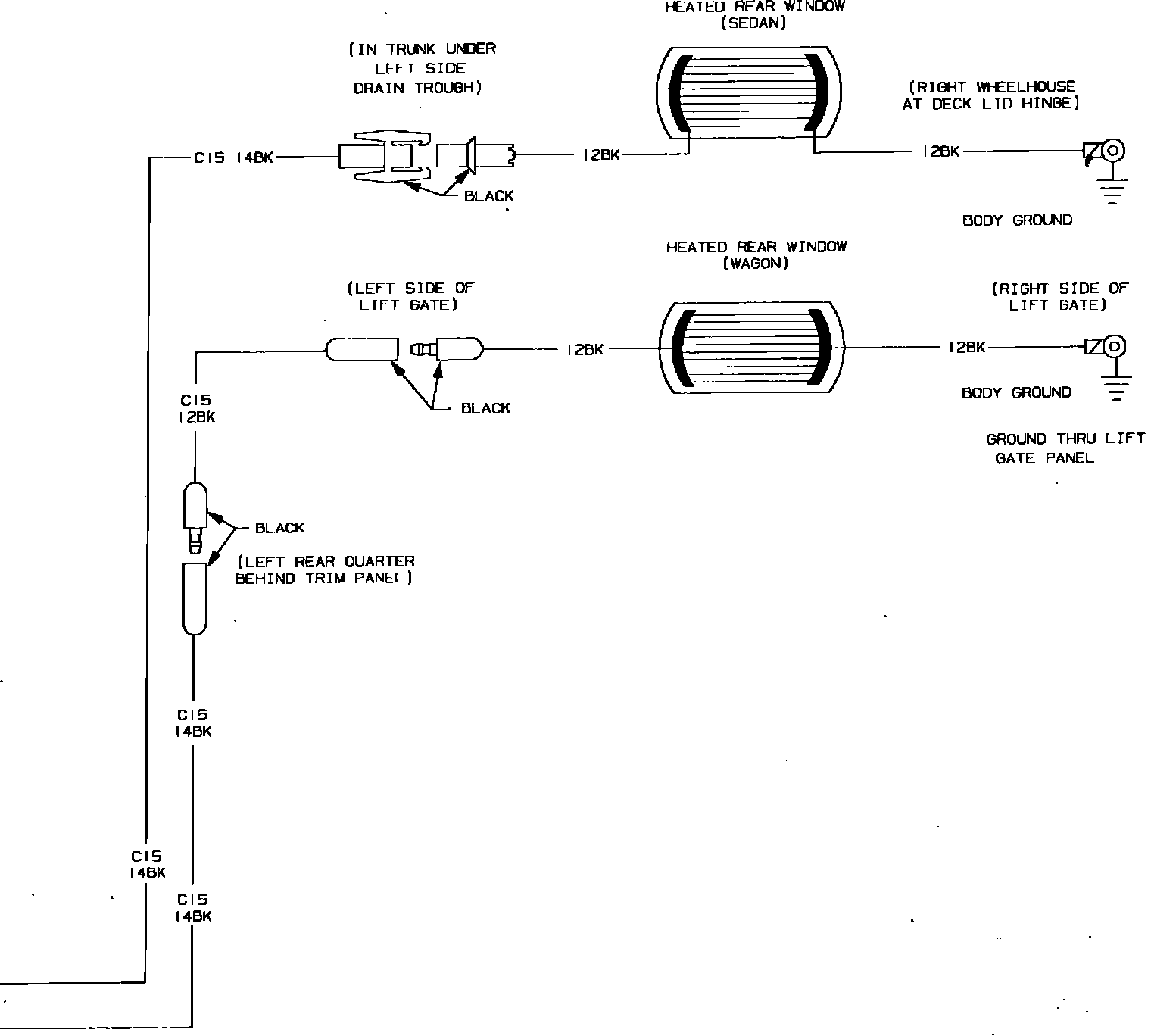

Fig. 37 Heated Rear Window Wiring Circuit (Part 2 Of 2):
