Fusible Link: Application and ID

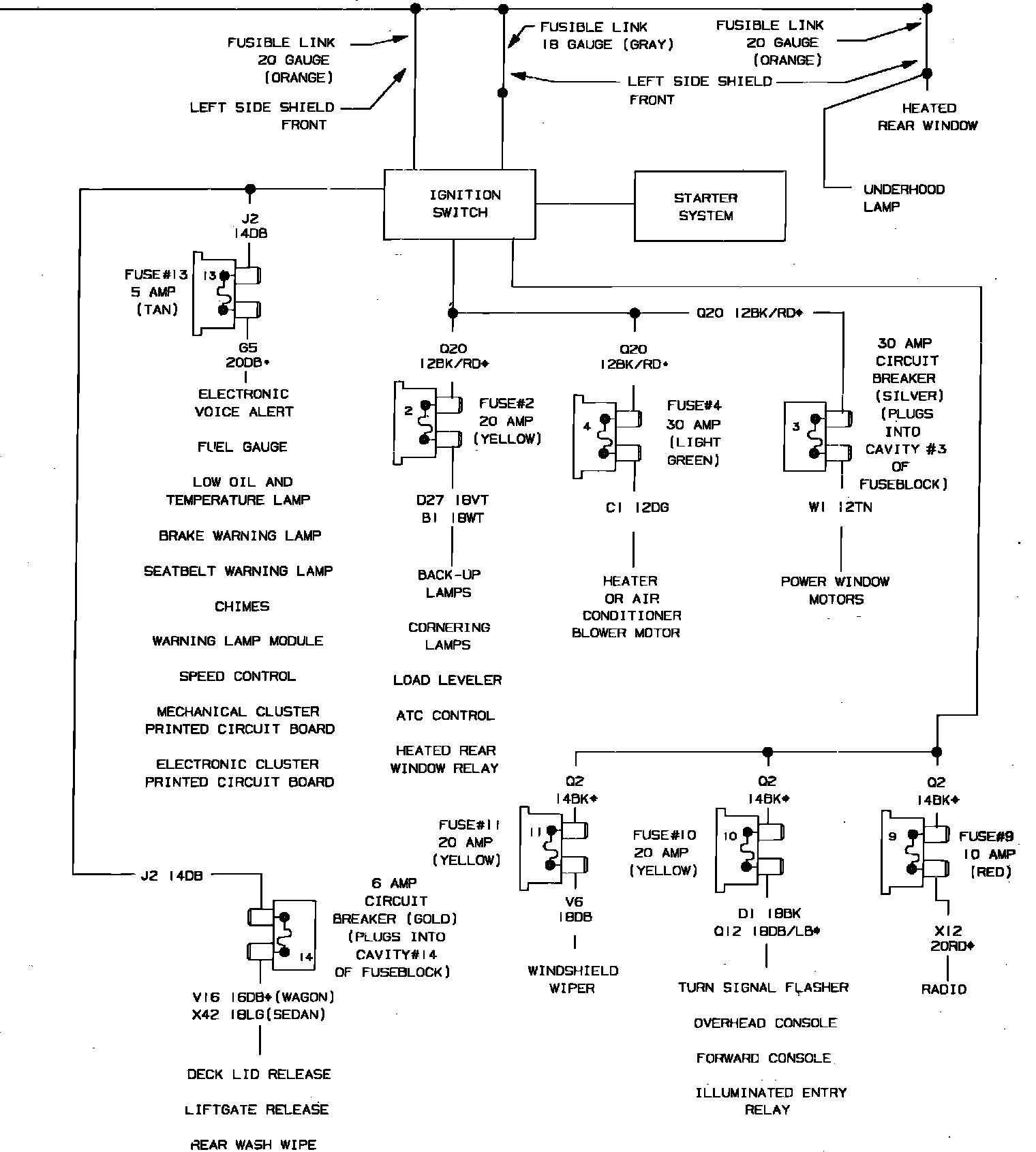

Fig. 31 Fuse Application Chart (Part 1 Of 2):
Fig. 31 Fuse Application Chart (Part 2 Of 2):
