Electrical Diagrams

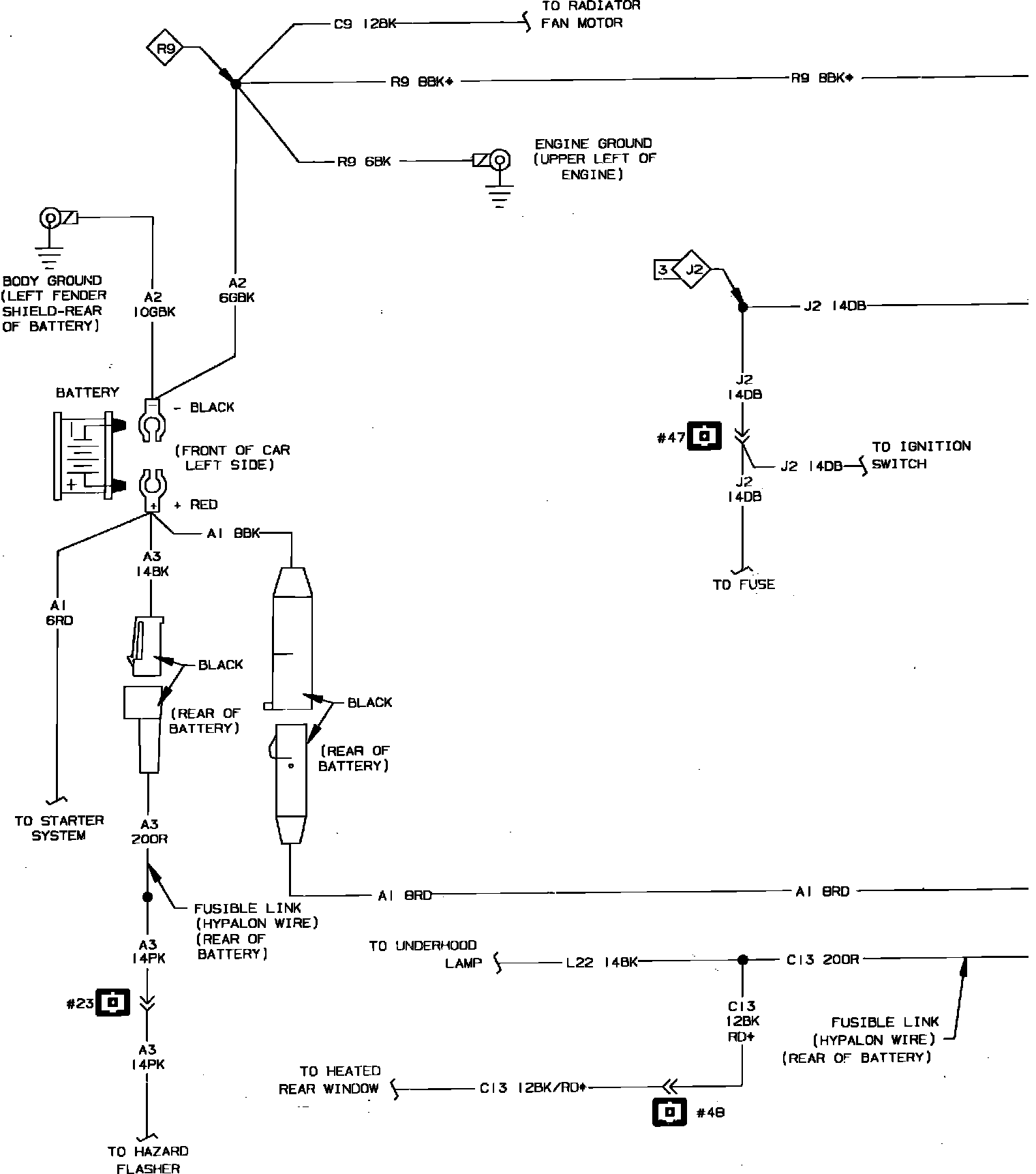

Fig. 19 Charging System Wiring Circuit (Part 1 Of 2):

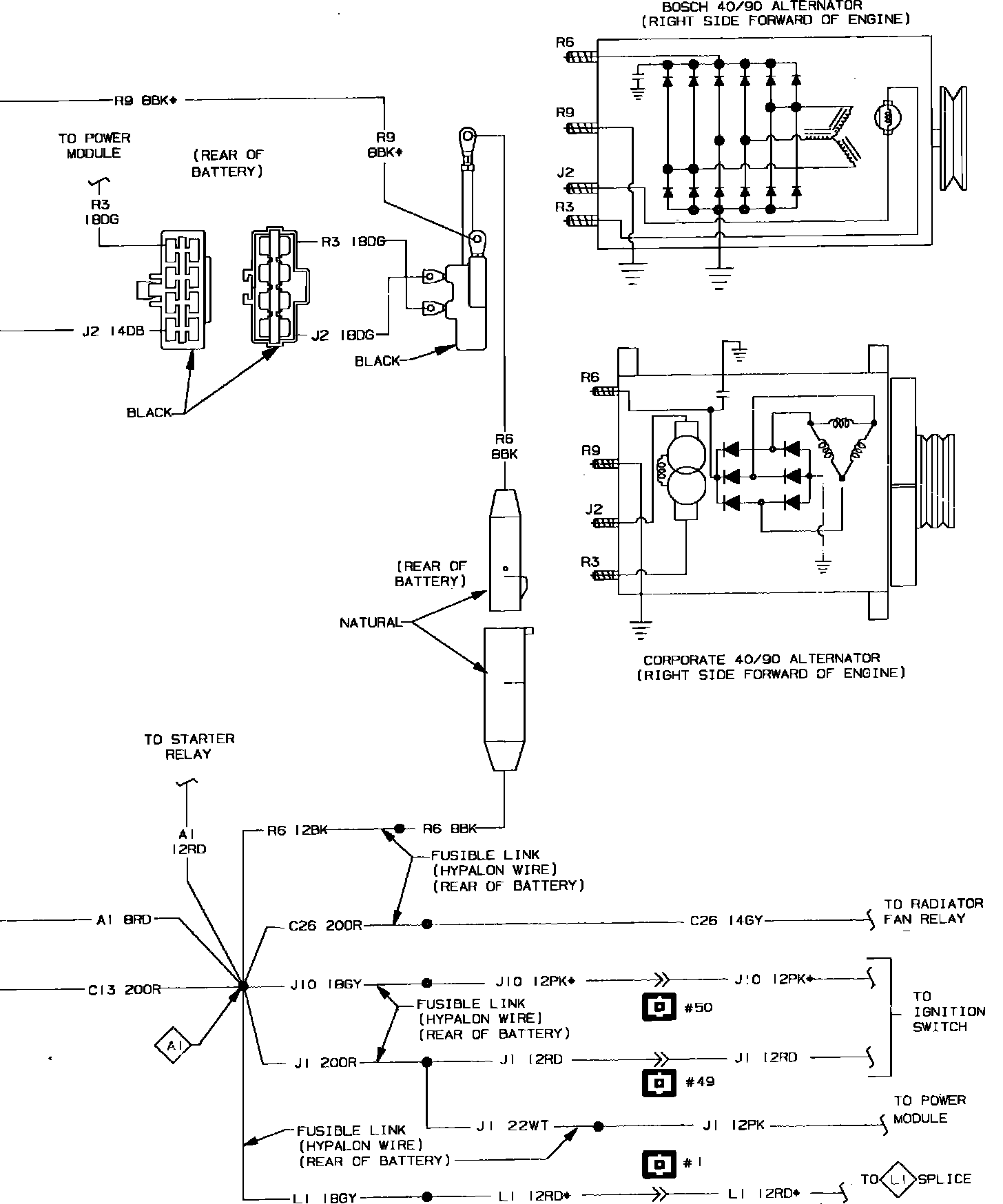

Fig. 19 Charging System Wiring Circuit (Part 2 Of 2):

Fig. 65 Starter System Wiring Circuit (Part 1 of 2):

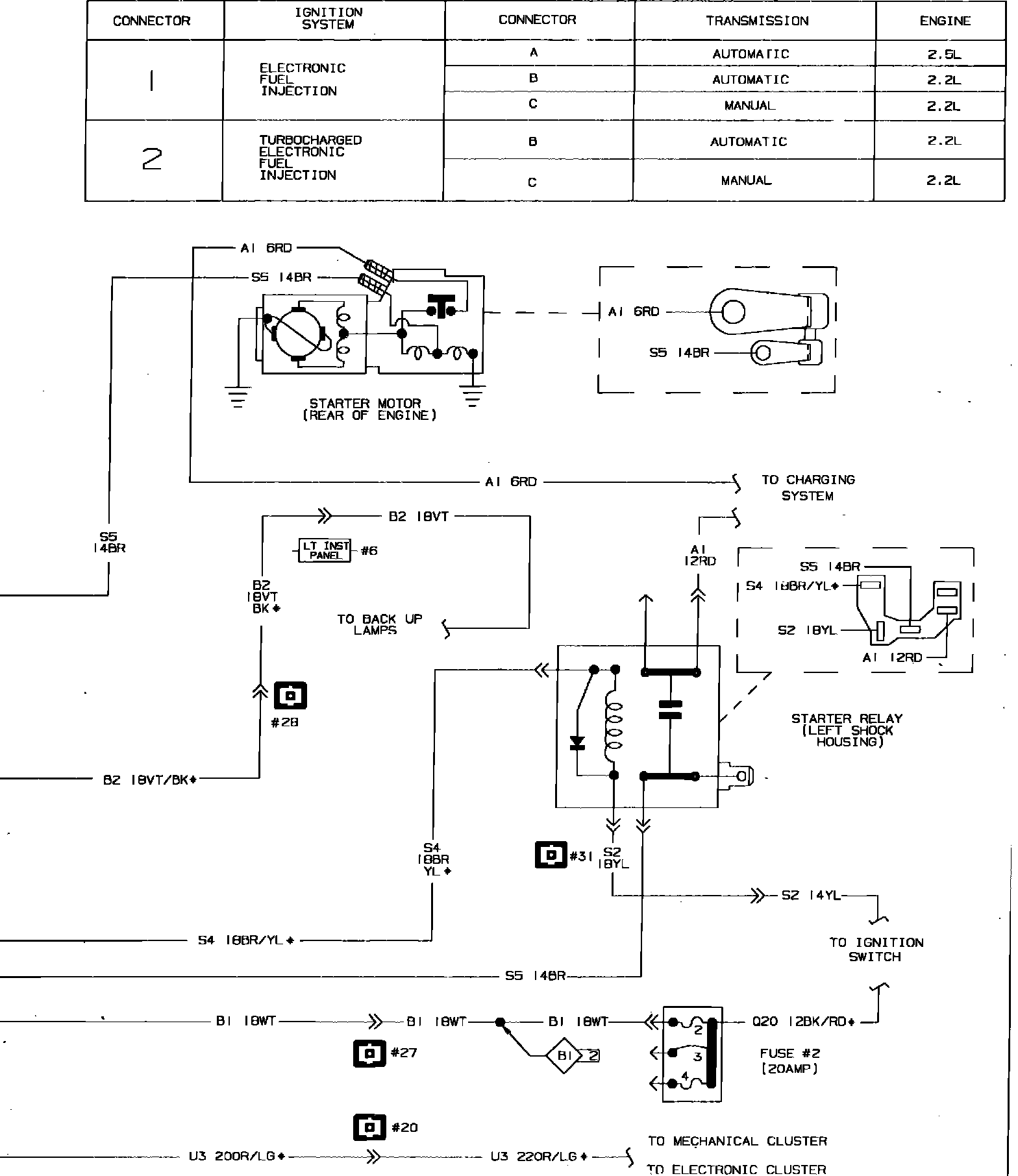

Fig. 65 Starter System Wiring Circuit (Part 2 of 2):
