Voice Alert - Excessive Volume Level

87chrysler13

Models


1987 Front Wheel Drive New Yorker, Dodge 600 & Caravelle Equipped With Electronic Voice Alert


Subject


Excessive Voice Alert Volume Level


Index


ELECTRICAL


Date

February 23, 1987

No..

08-05-87 (C6-08)


P-539
SYMPTOM/CONDITION

All messages given by electronic voice alert system are at an excessive volume level.

REPAIR PROCEDURE

The above condition may be caused by an improperly positioned voice alert message speaker wire (X53). This wire must be removed from cavity 3 and inserted into cavity 4 (previously not used).

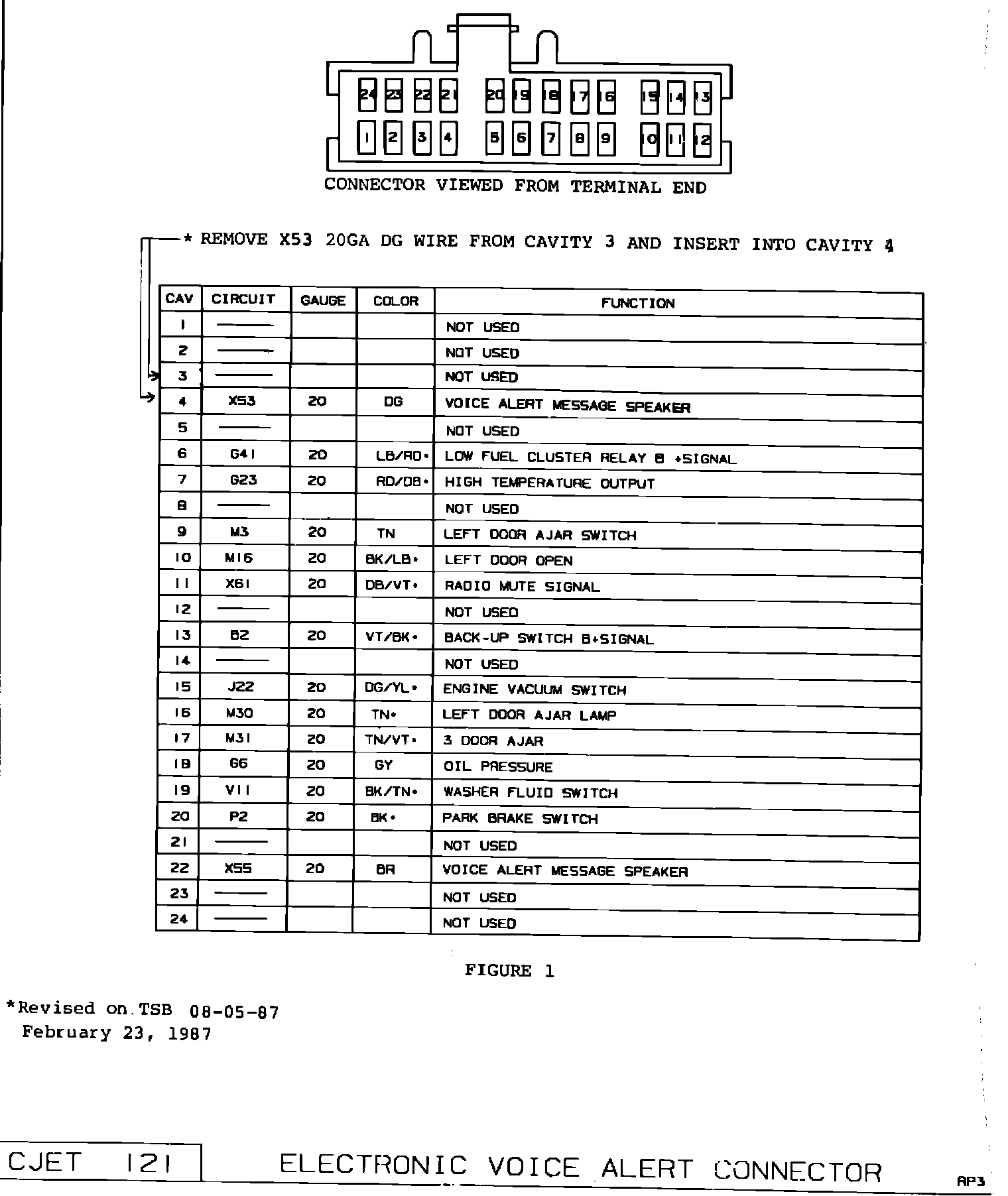

FIGURE 1:

Please make this change in your 1987 Front Wheel Drive Wiring Diagram Service Manual, publication #81-270-7004, page 8H-128 and 8H-70 (Figure 1).
In addition, note that the EVA uses its own speaker in 1987, not the radio speaker as shown on page 8H-70 of the service manual.


POLICY: Reimbursable within the provisions of the warranty

TIME ALLOWANCE:
Labor Operation No. 08-80-34-91 . . . . . . . . 0.3 Hrs.

FAILURE CODE: 85 - Improperly Installed Wiring
