Heated Glass Element
>>
U.S. Models
U.S. Models

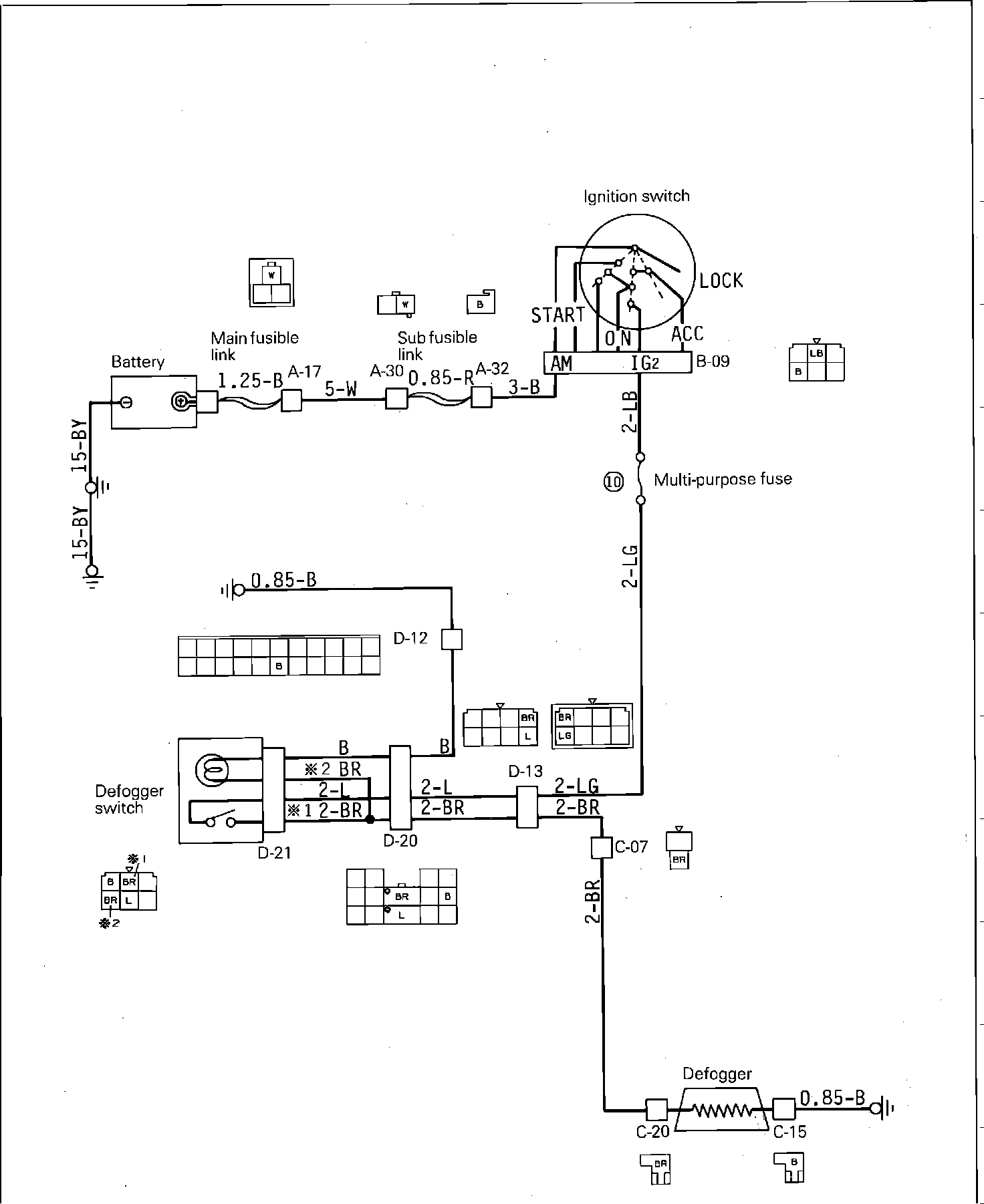

Rear Window Defogger Wiring Circuit:
Rear Window Defogger Wiring Circuit:
