Home >> Plymouth >> 1987 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> U.S Models

U.S Models

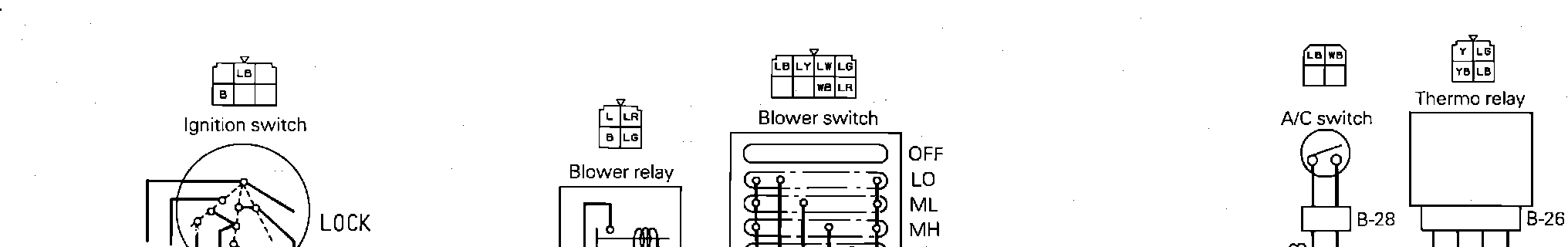

Air Conditioning System Wiring Circuit US Models:

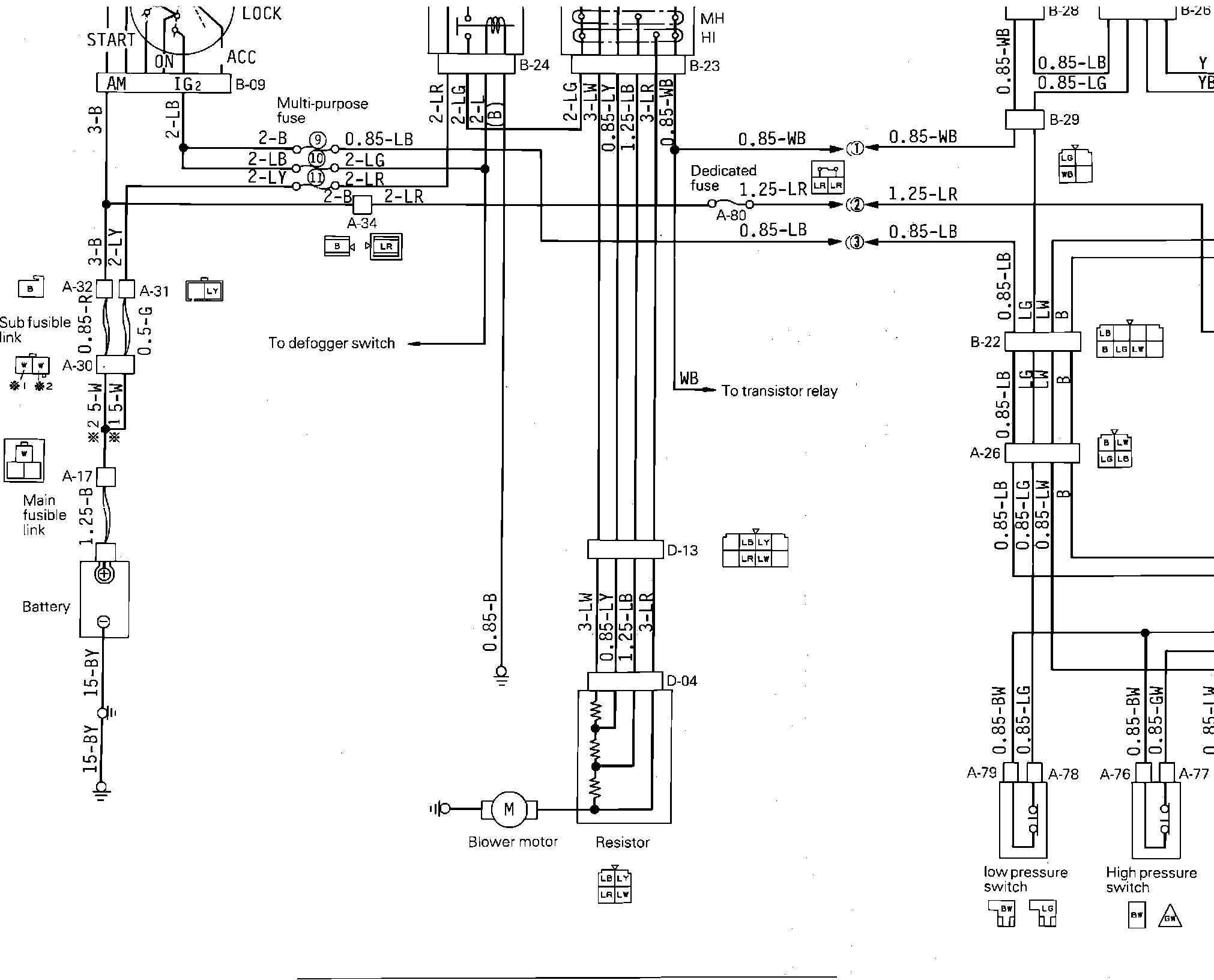

Air Conditioning System Wiring Circuit US Models:

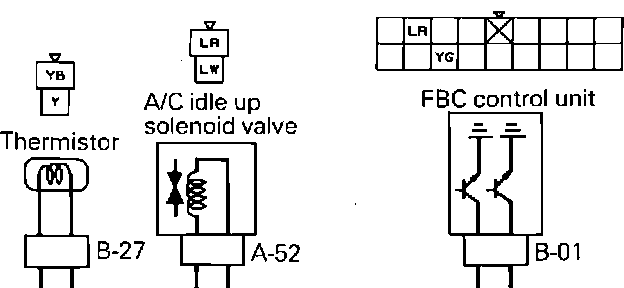

Air Conditioning System Wiring Circuit US Models:

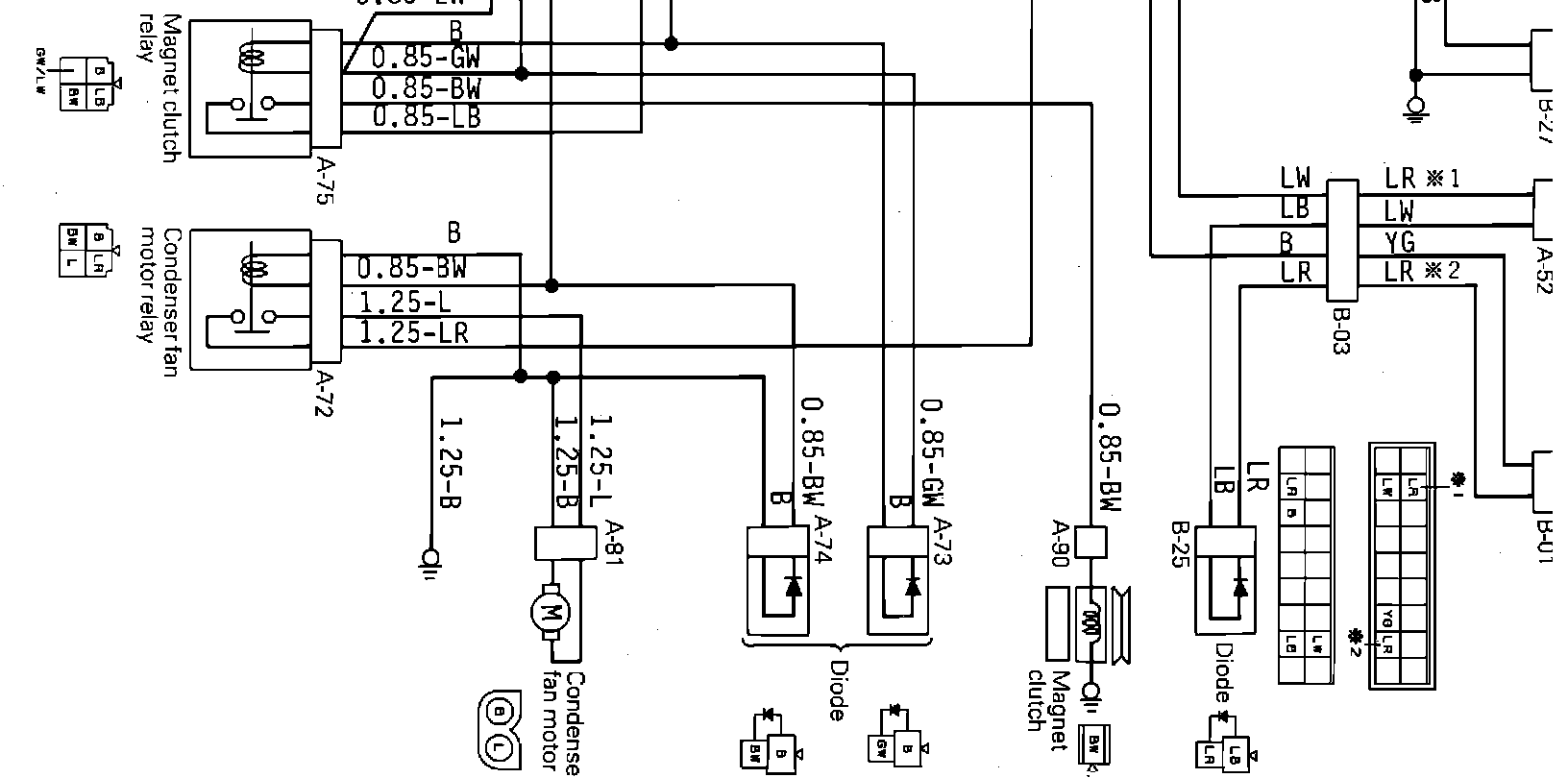

Air Conditioning System Wiring Circuit US Models:
