Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1987
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
With Automatic Transmission
With Automatic Transmission

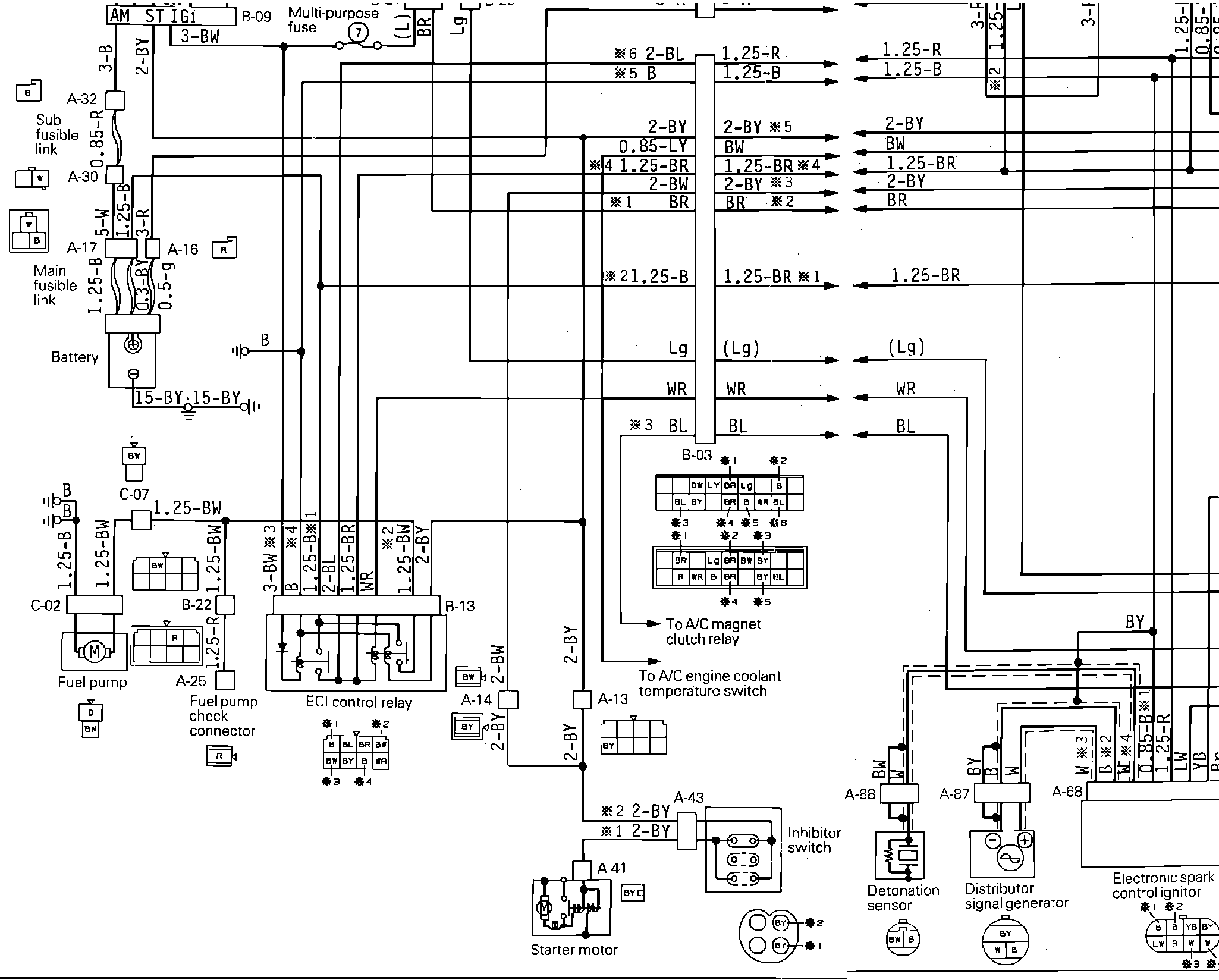

.�2w�2�w�2(��2��2Electronic Controlled Injection (ECI) Wiring Circuit:
