Colt Vista 2WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

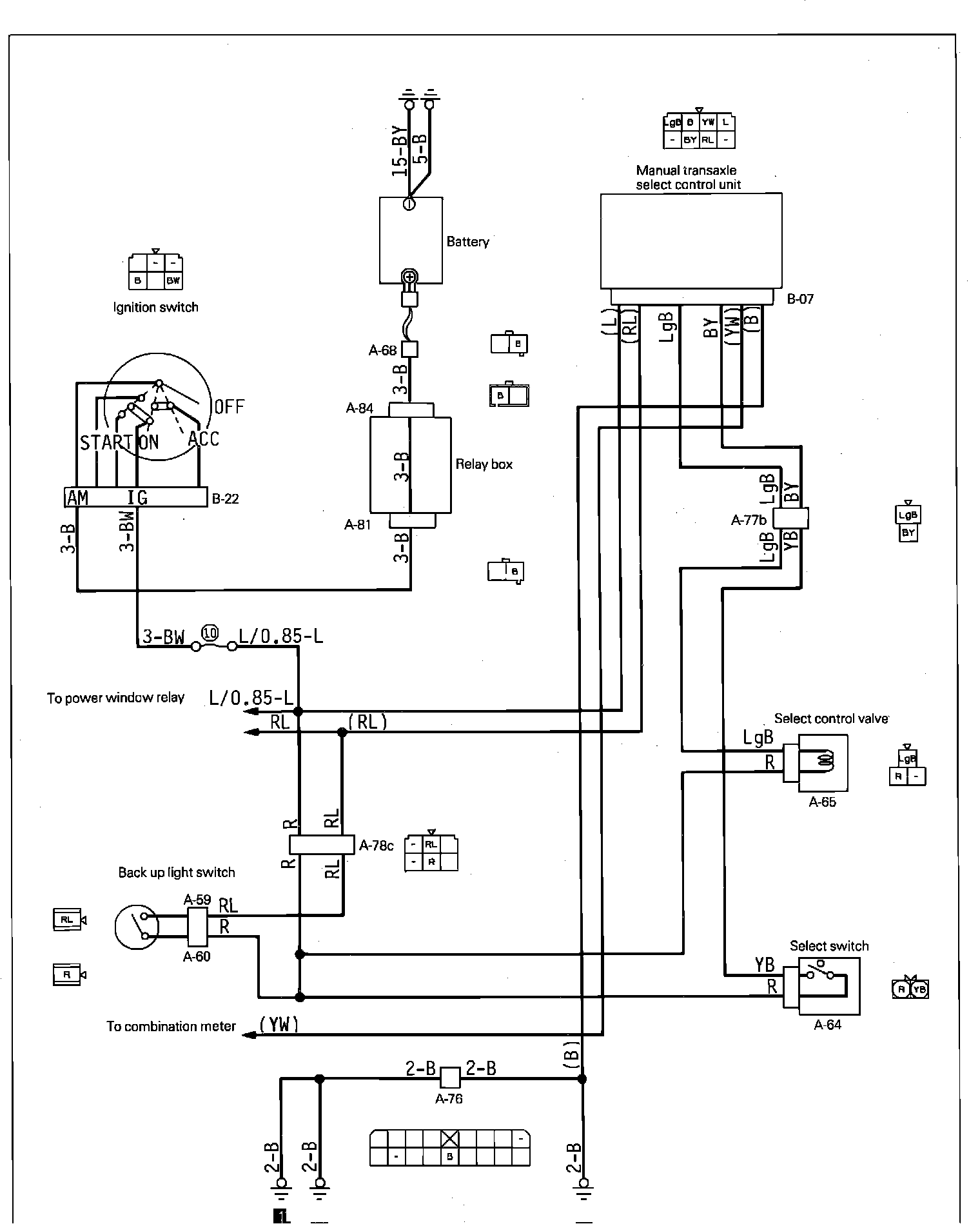

5-Speed Manual Control Wiring Circuit:
