Home >> Plymouth >> 1987 >> Colt Vista 2WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams

Electrical Diagrams

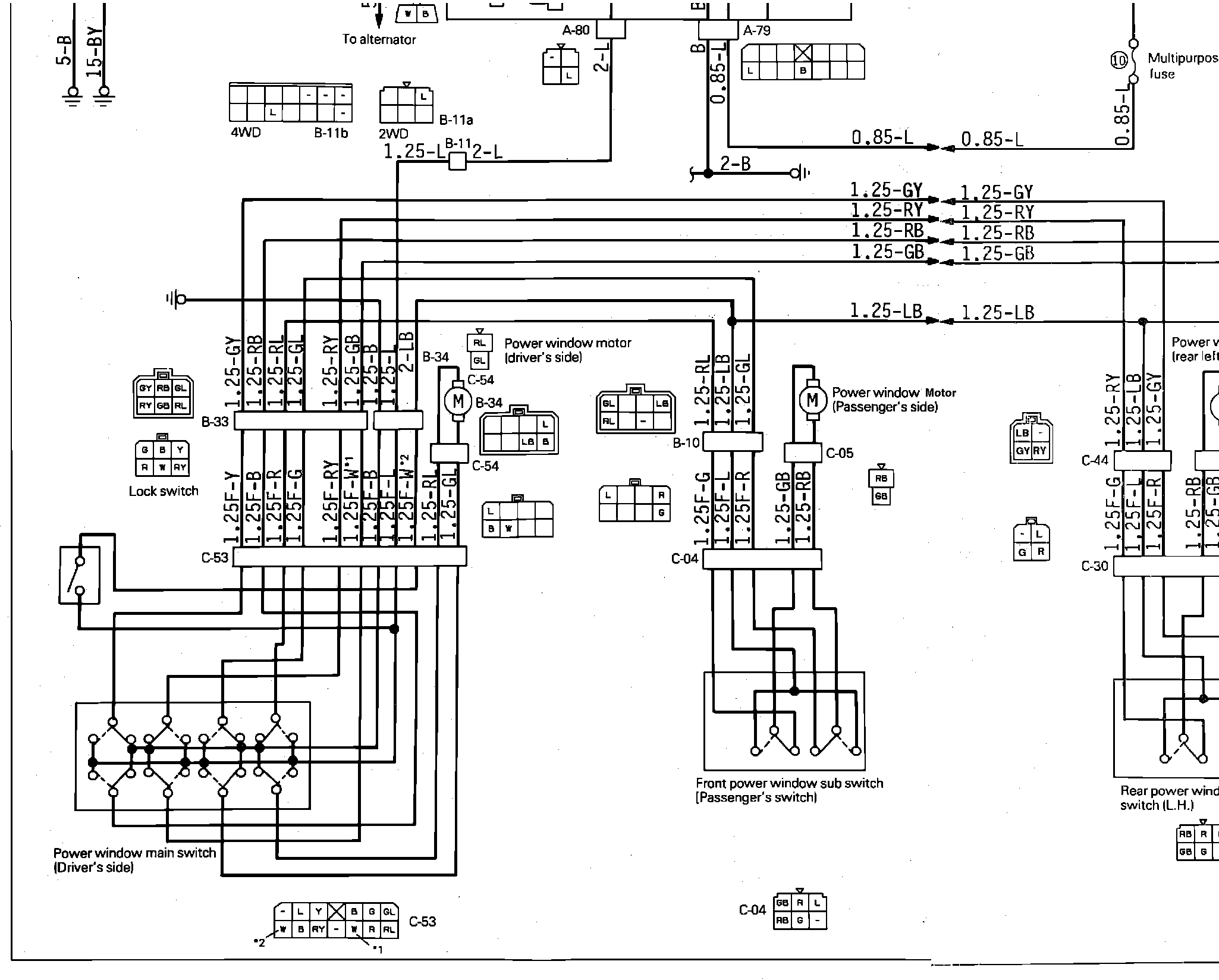

lHSKvWSKkSKPower Windows Wiring Circuit:
