Home >> Plymouth >> 1987 >> Grand Fury/Salon V8-318 5.2L VIN 4 2-BBL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Part 1 of 2

Part 1 of 2

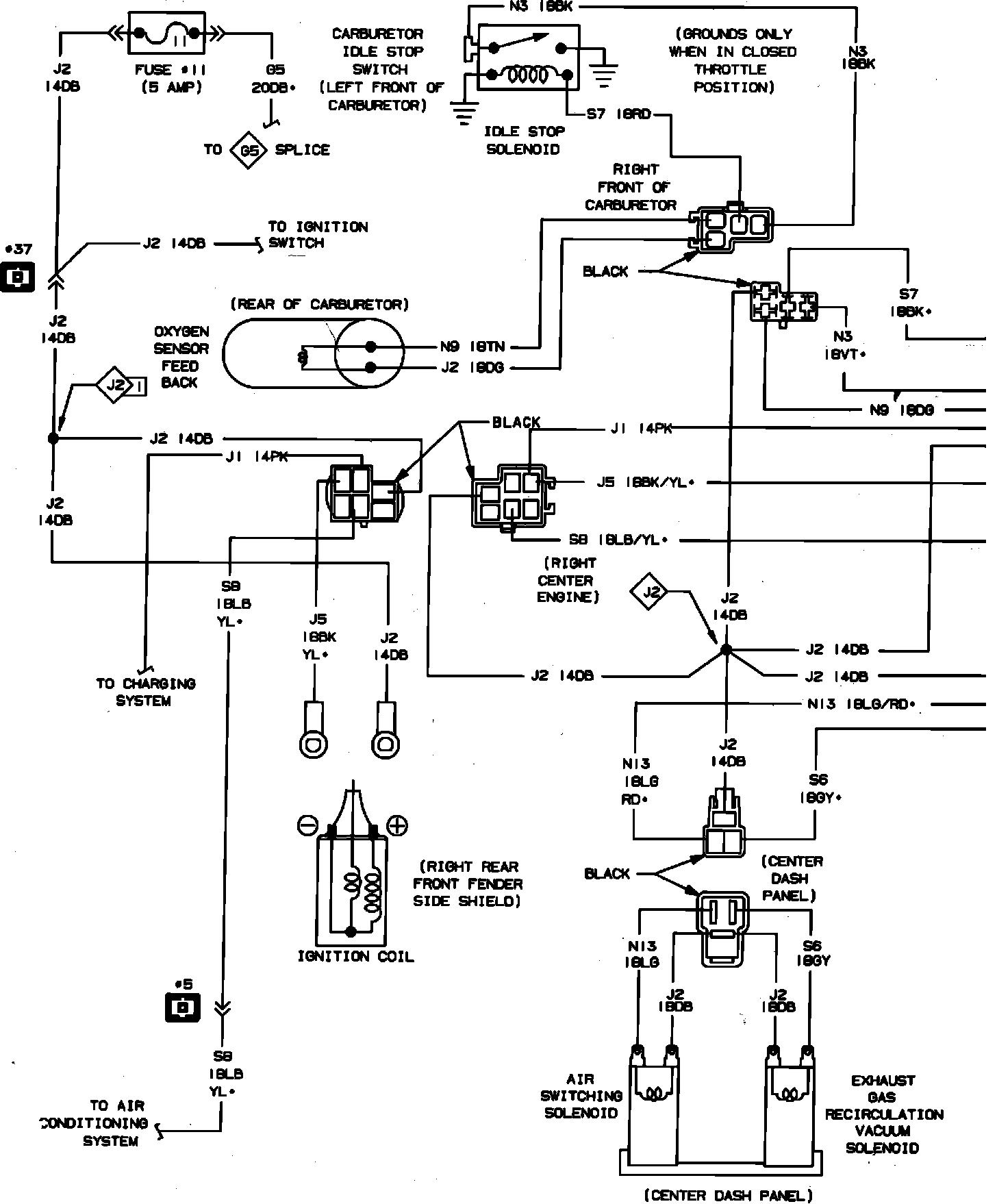

Fig. 24 Ignition System Wiring Circuit (Part 1 of 2). 2 Barrel Carburetor:
