Home >> Plymouth >> 1987 >> Horizon L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Fluid Pressure Sensor/Switch

Brake Fluid Pressure Sensor/Switch

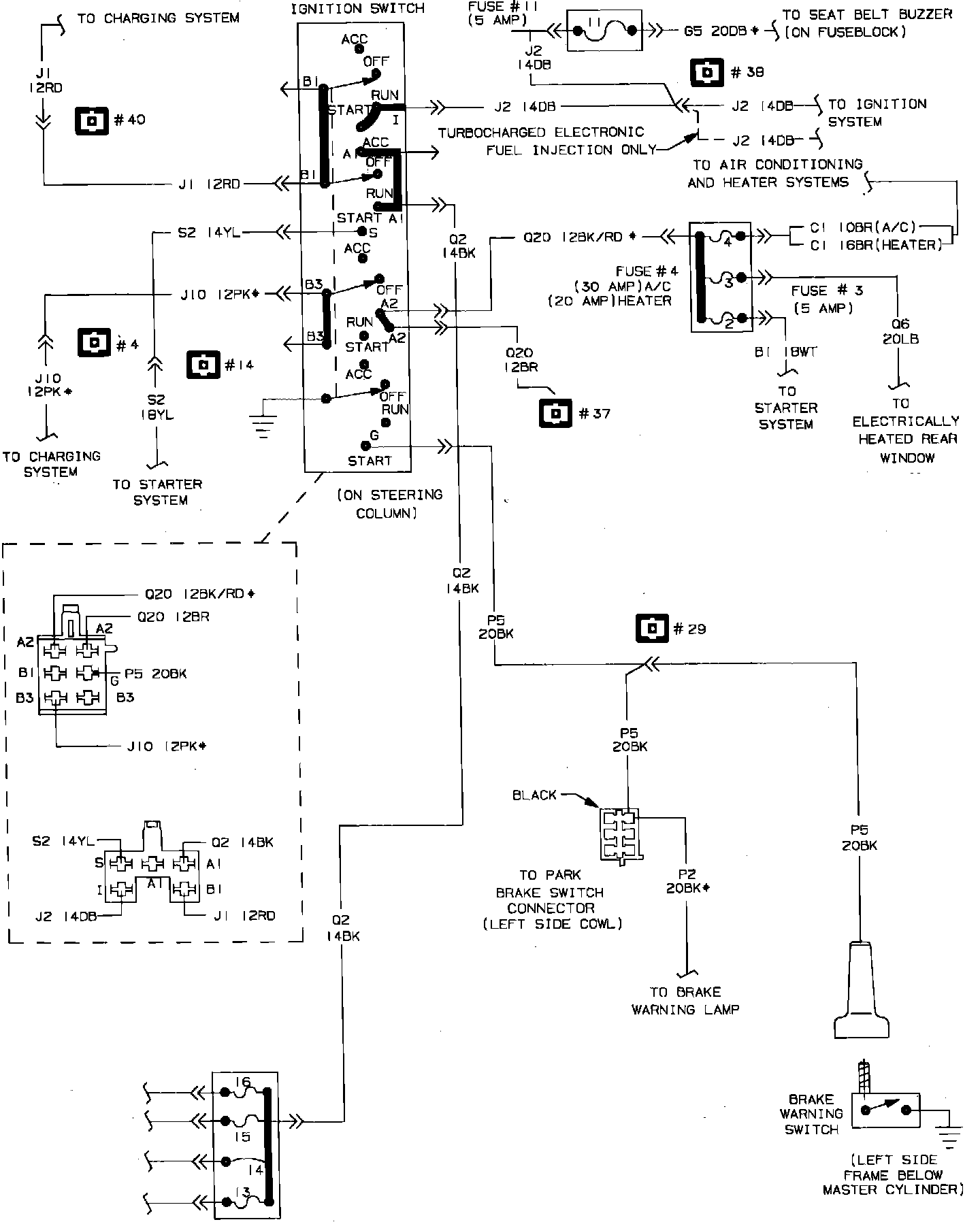

Fig. 28 Ignition Switch Wiring Circuit:
