Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

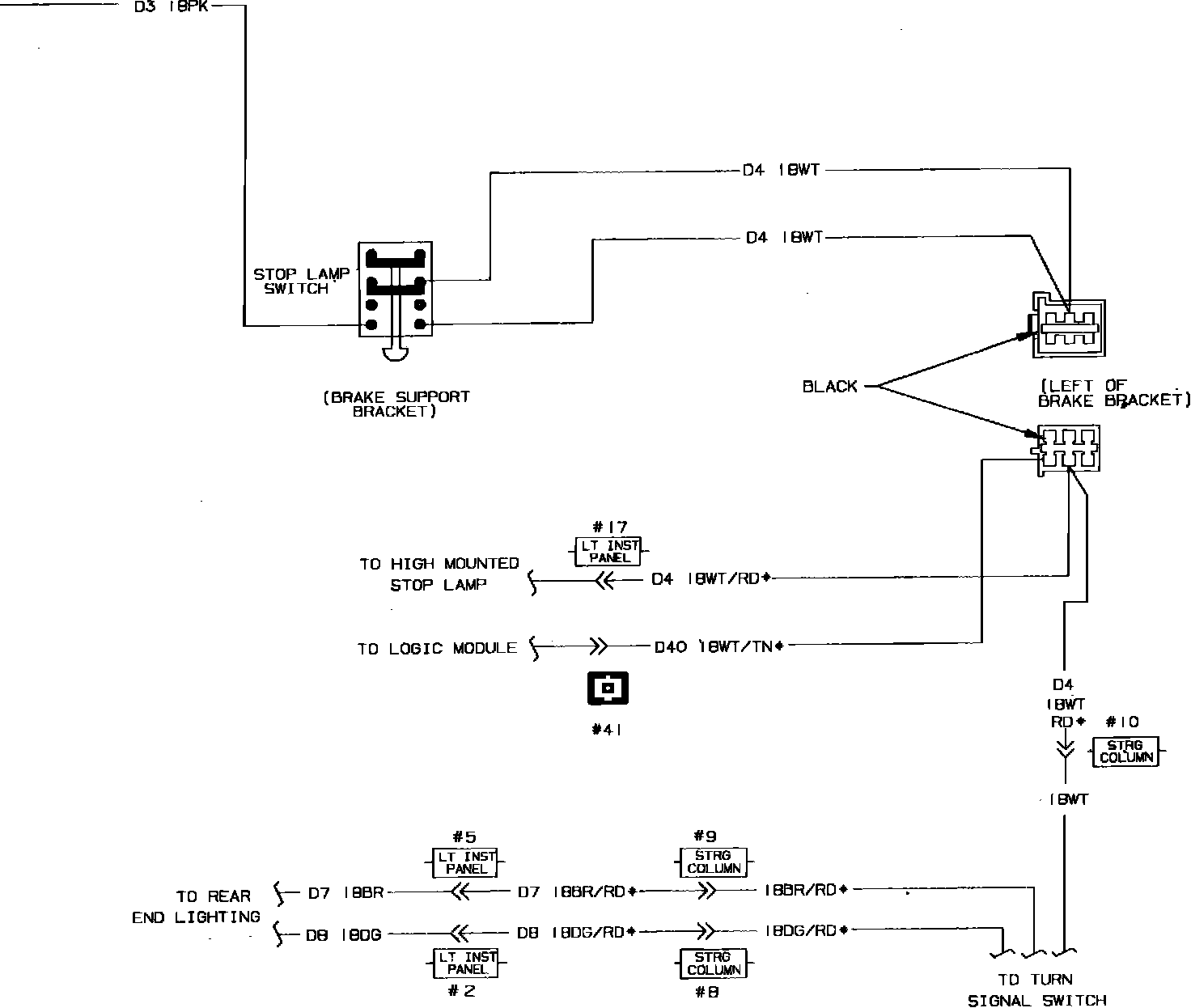

Fig. 25 Hazard & Stop/Turn Flasher Wiring Circuit (Part 1 of 2):

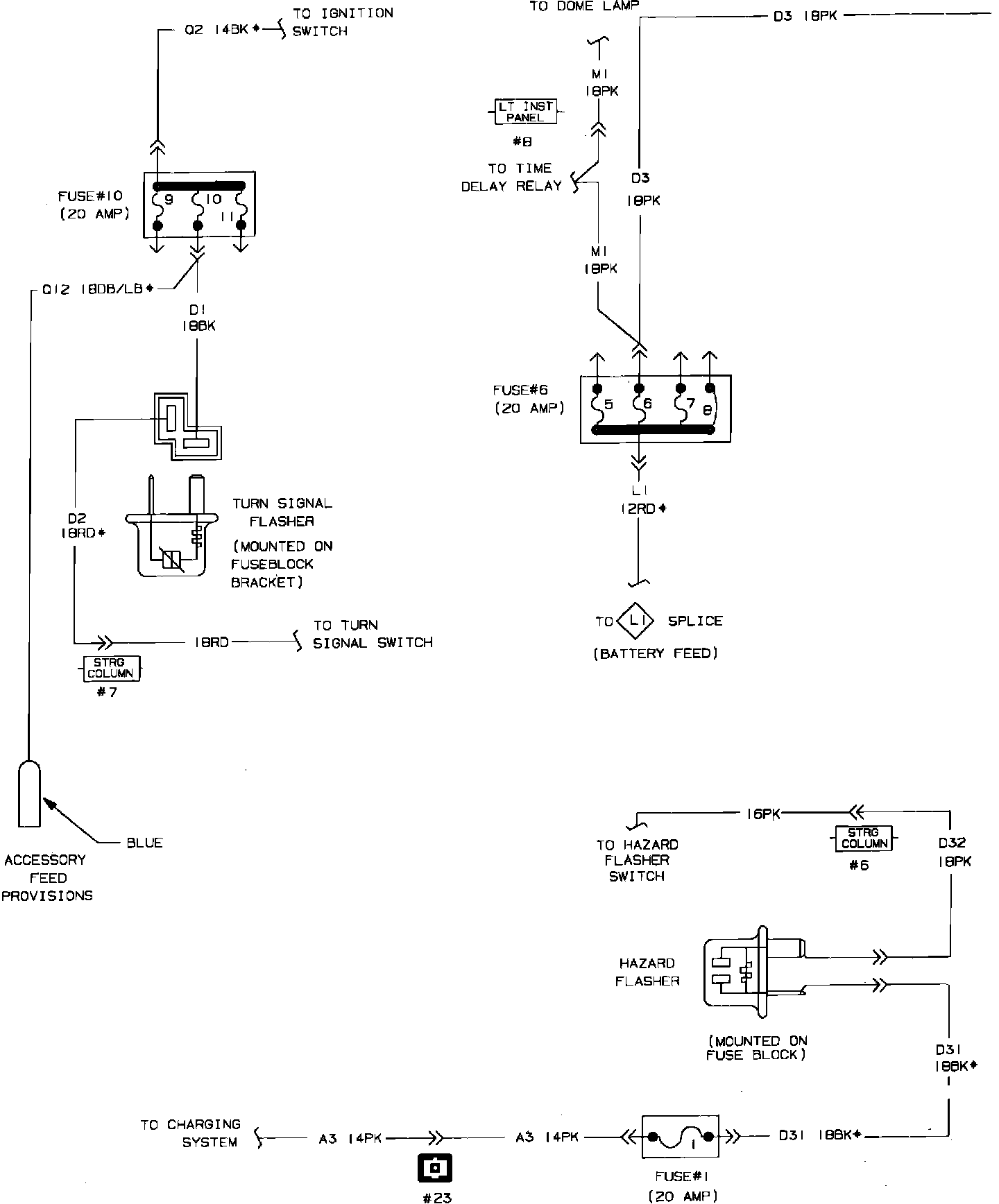

Fig. 25 Hazard & Stop/Turn Flasher Wiring Circuit (Part 2 of 2):
