System Diagram

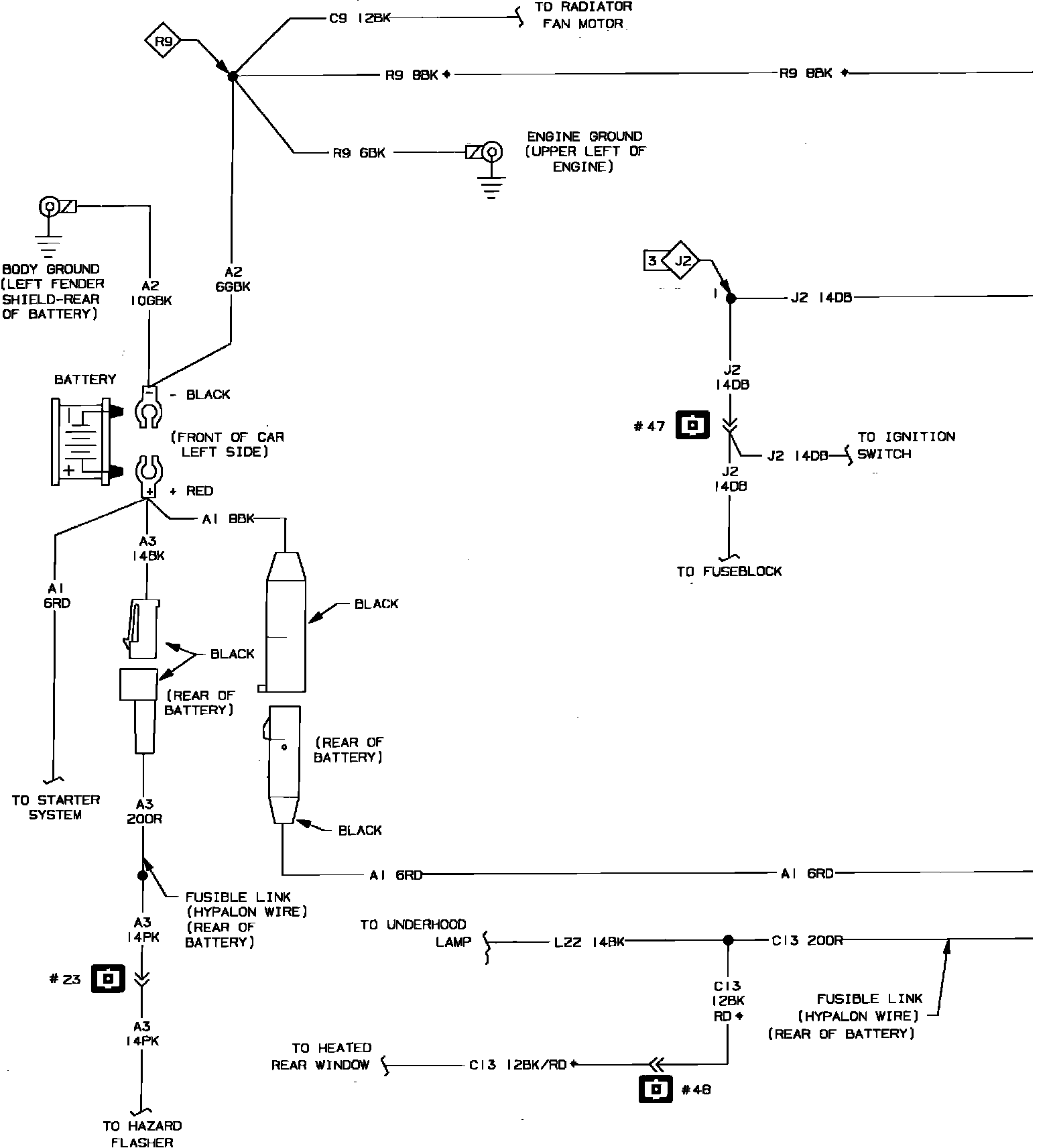

Fig. 17 Charging System Wiring Circuit (Part 1 of 2):

Fig. 17 Charging System Wiring Circuit (Part 2 of 2):

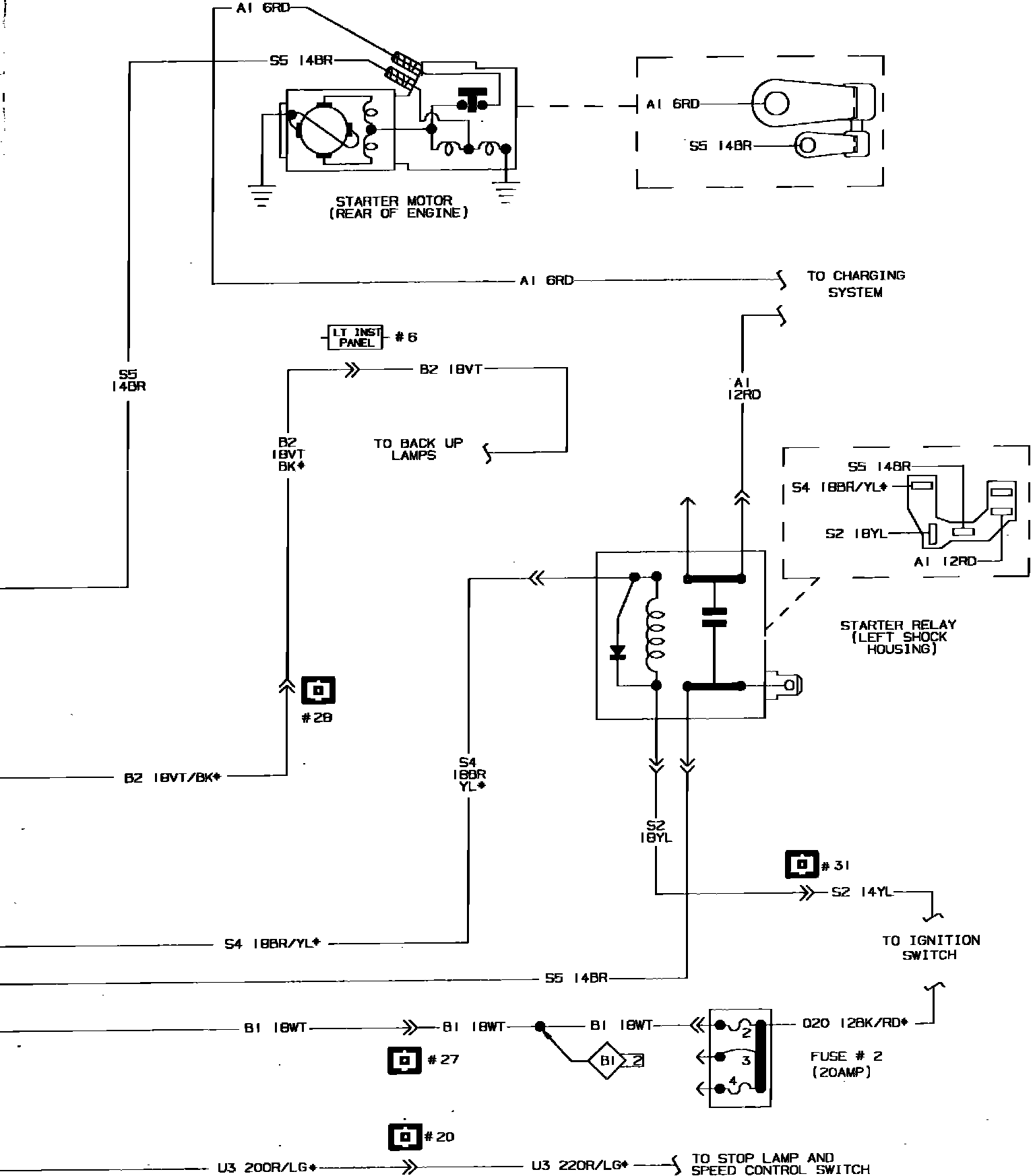

Fig. 42 Starter System Wiring Circuit (Part 1 of 2):

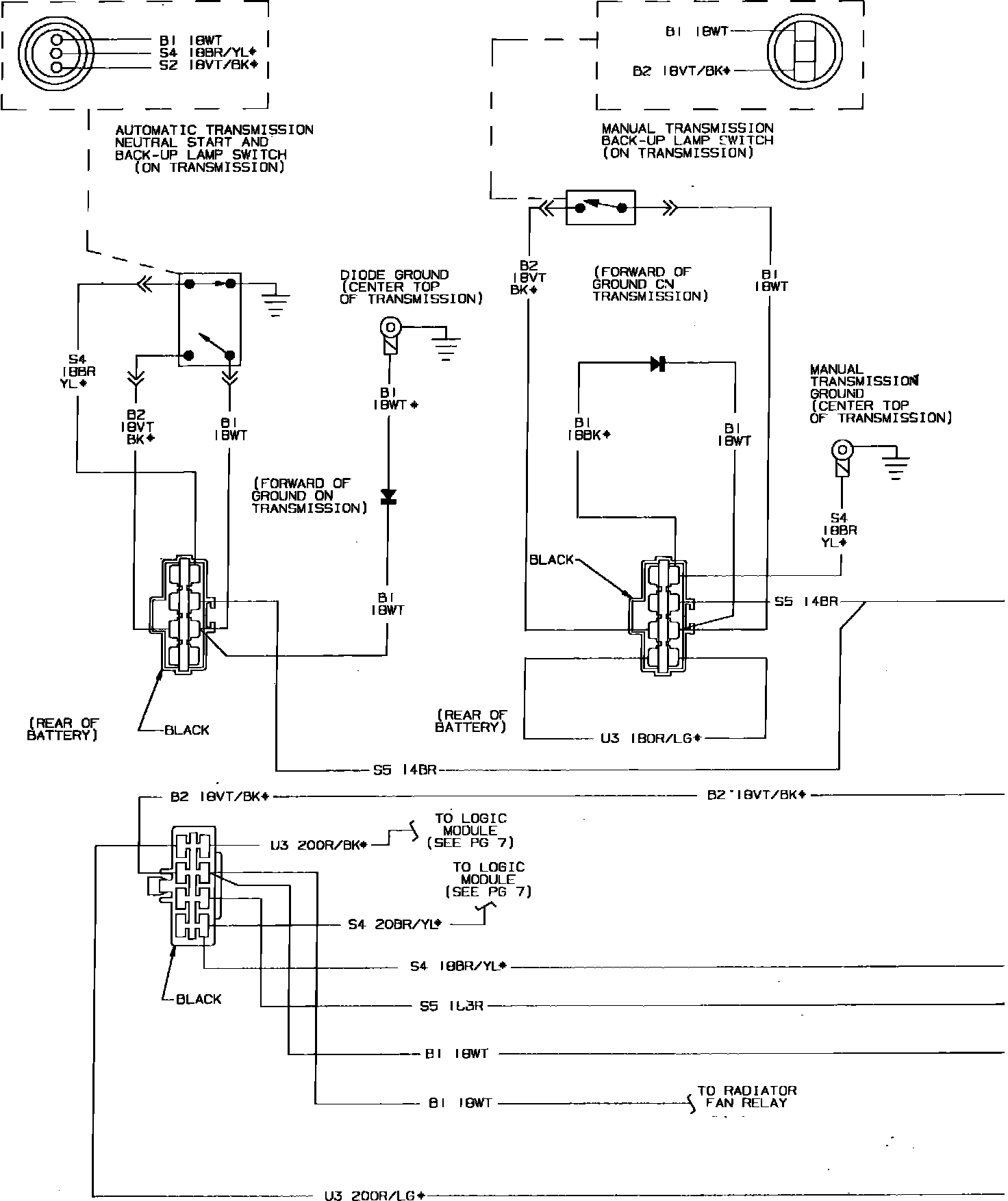

Fig. 42 Starter System Wiring Circuit (Part 2 of 2):
