Computers and Control Systems: Locations

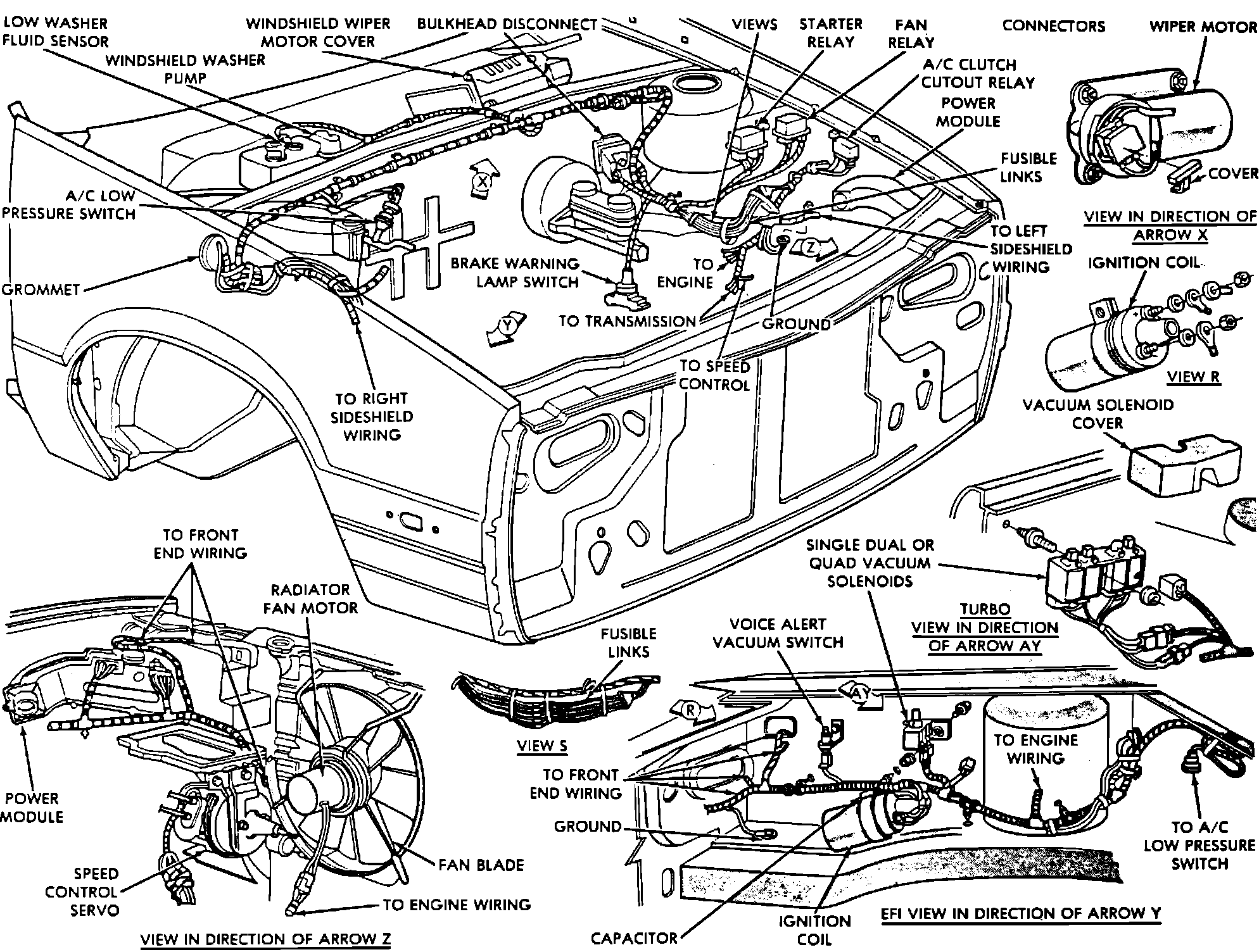

Front end & engine compartment components.:

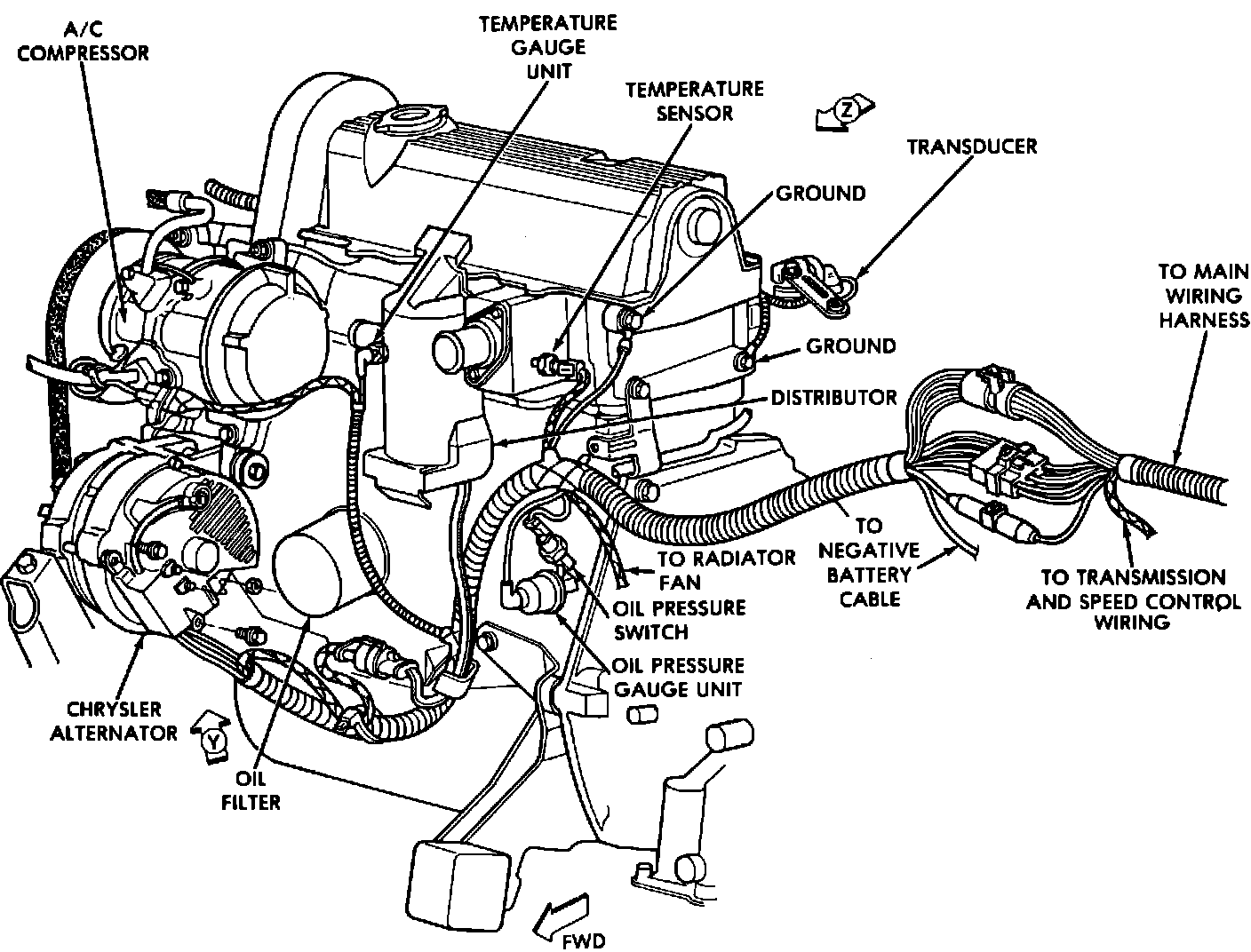

Engine compartment components.:






Applicable to: 1986-87 Aries & Reliant
