Home >> Plymouth >> 1987 >> Reliant L4-153 2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 2

Part 2

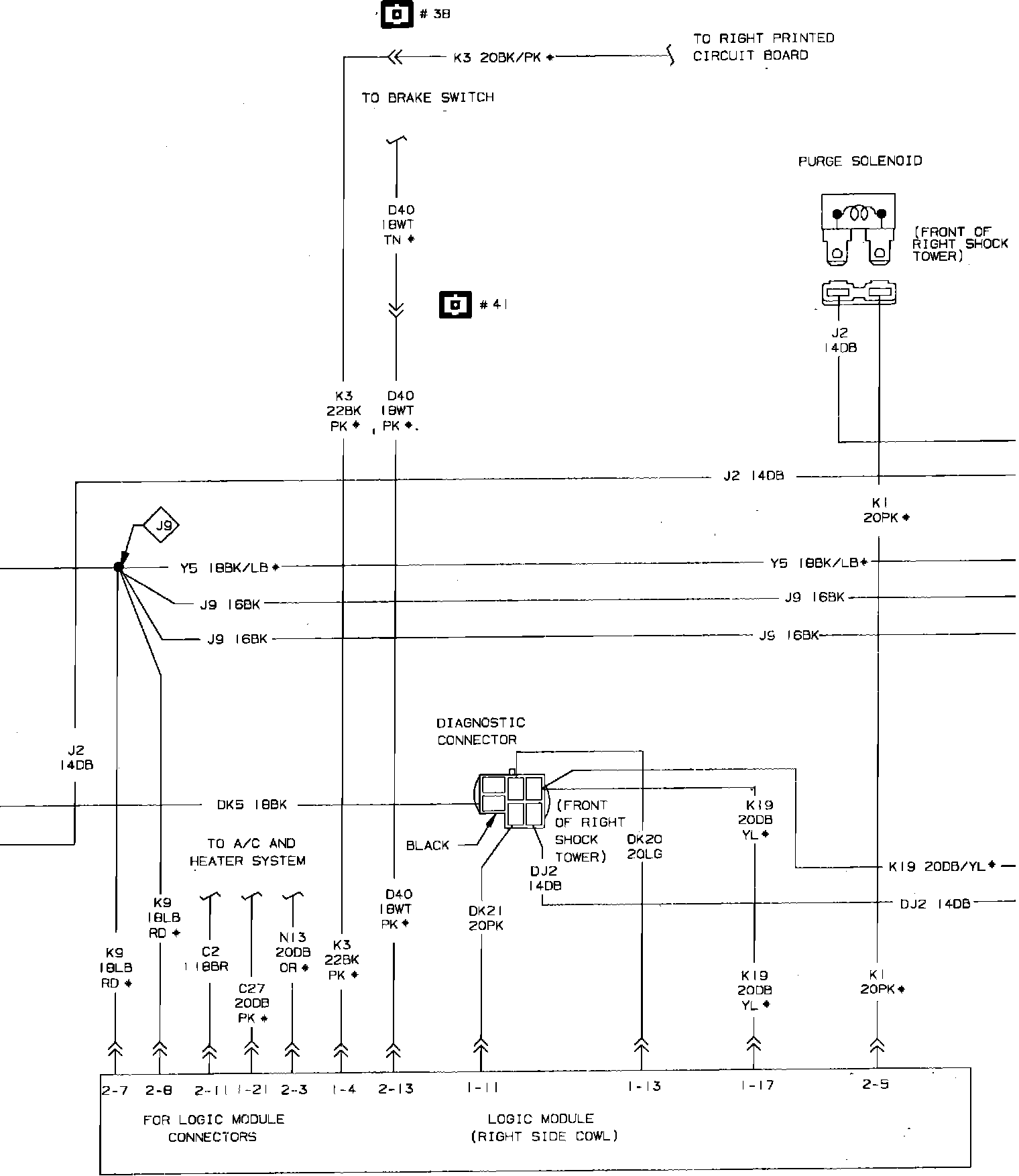

Fig. 32 Ignition System Wiring Circuit (Part 2 of 4):
