Electrical Diagrams

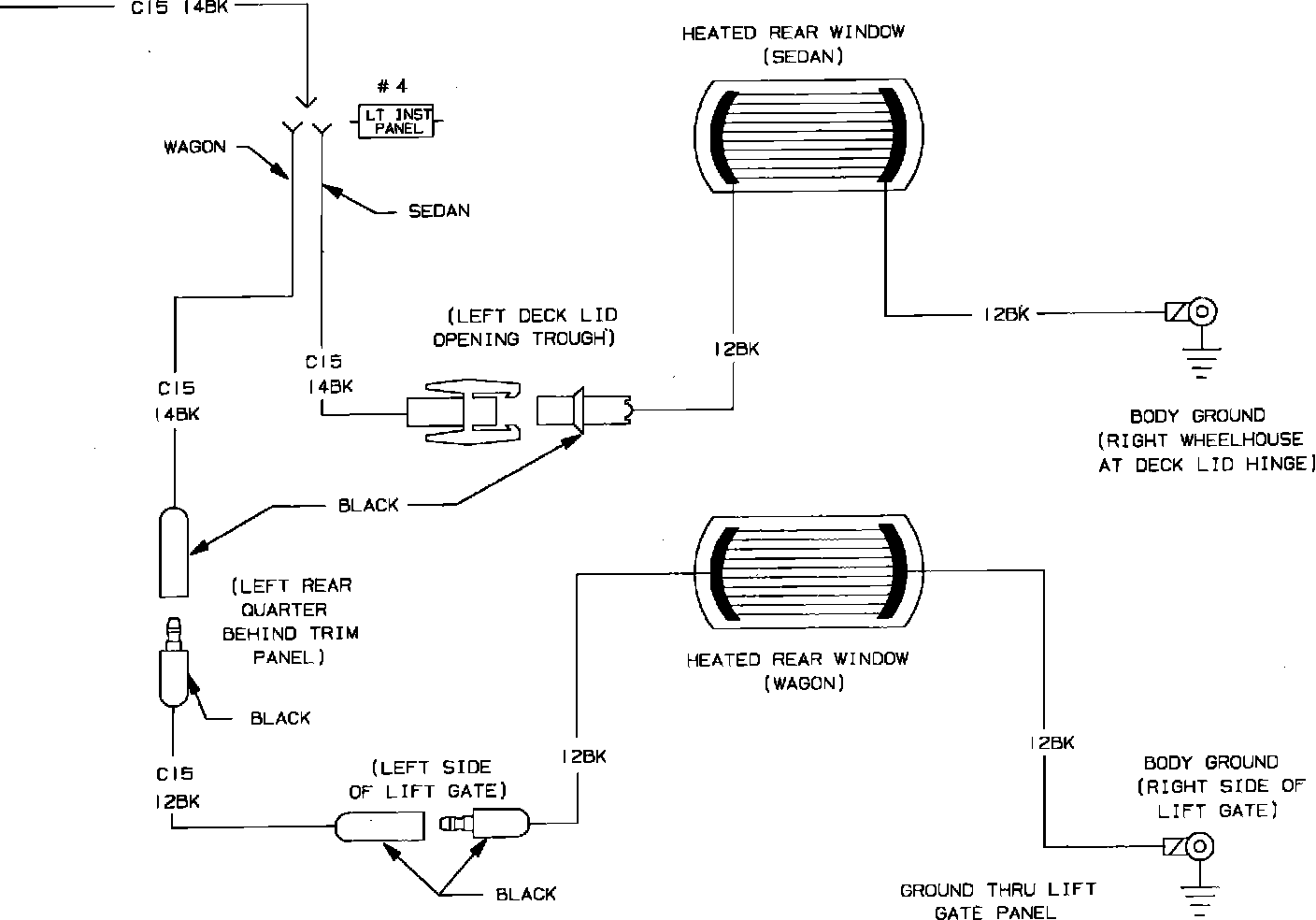

Fig. 28 Heated Rear Window Wiring Circuit (Part 1 of 2):



Fig. 28 Heated Rear Window Wiring Circuit (Part 2 of 2):
