Cooling System

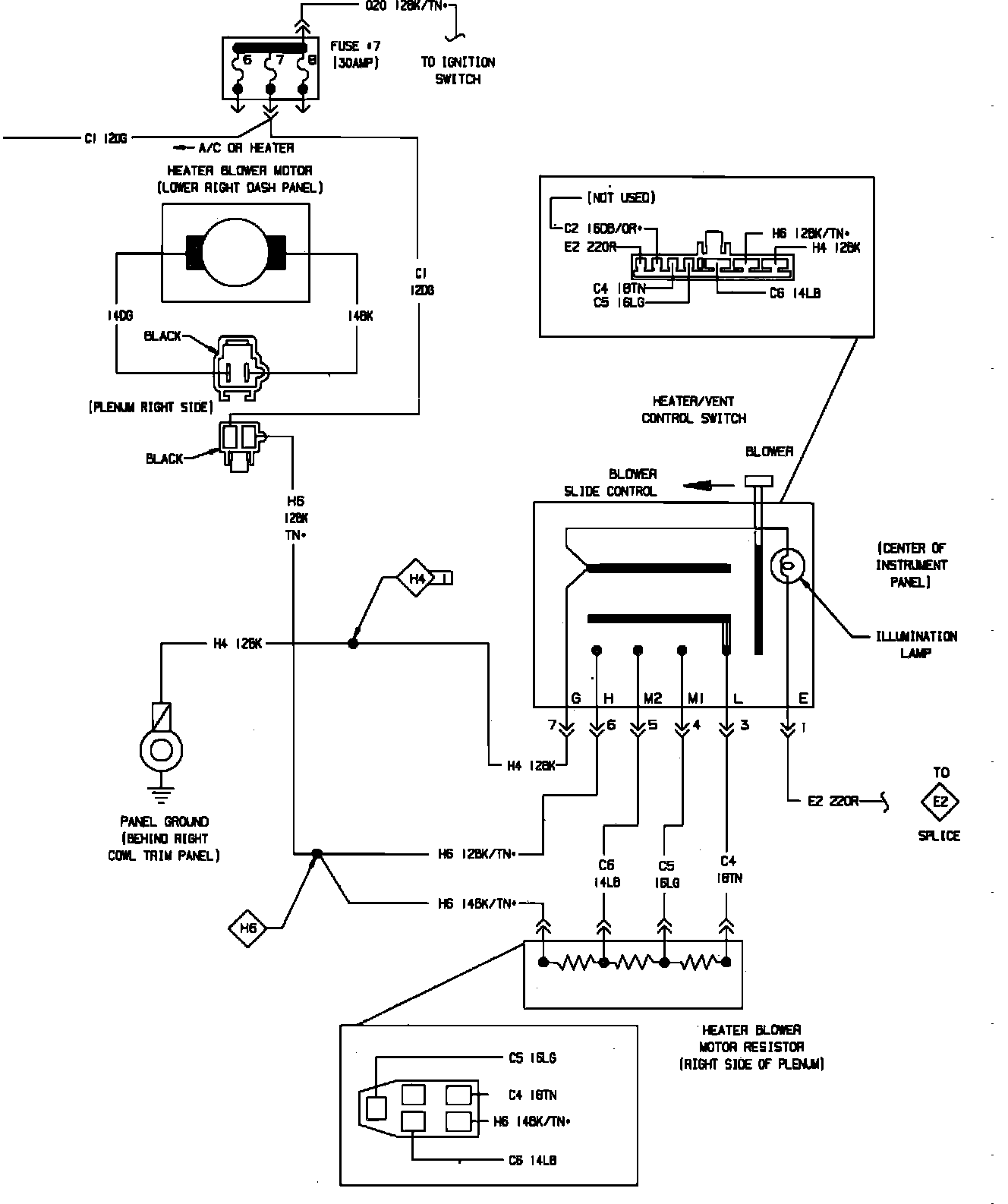

Air Conditioning And Heater System (Part 1 Of 4):

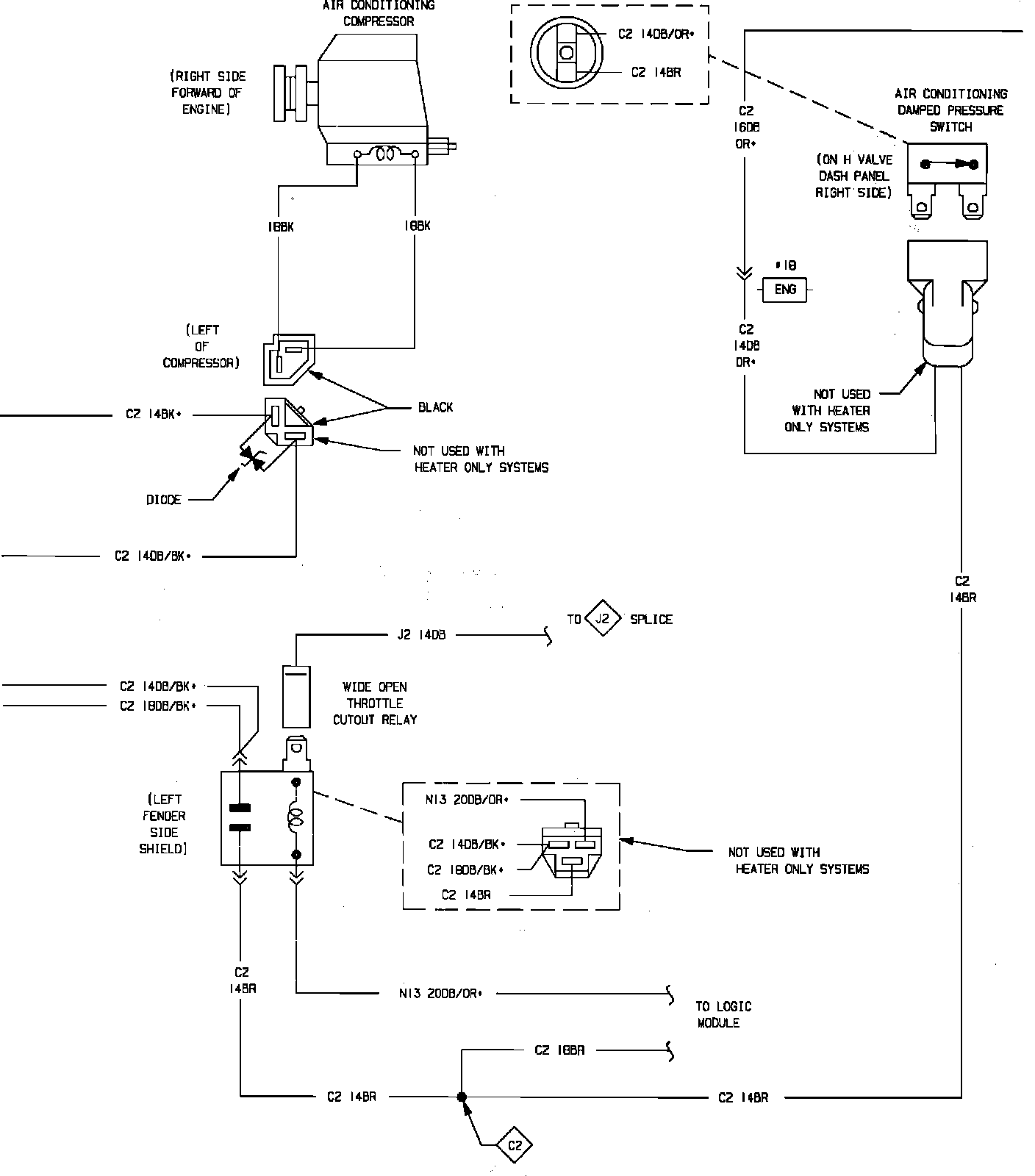

Air Conditioning And Heater System (Part 2 Of 4):

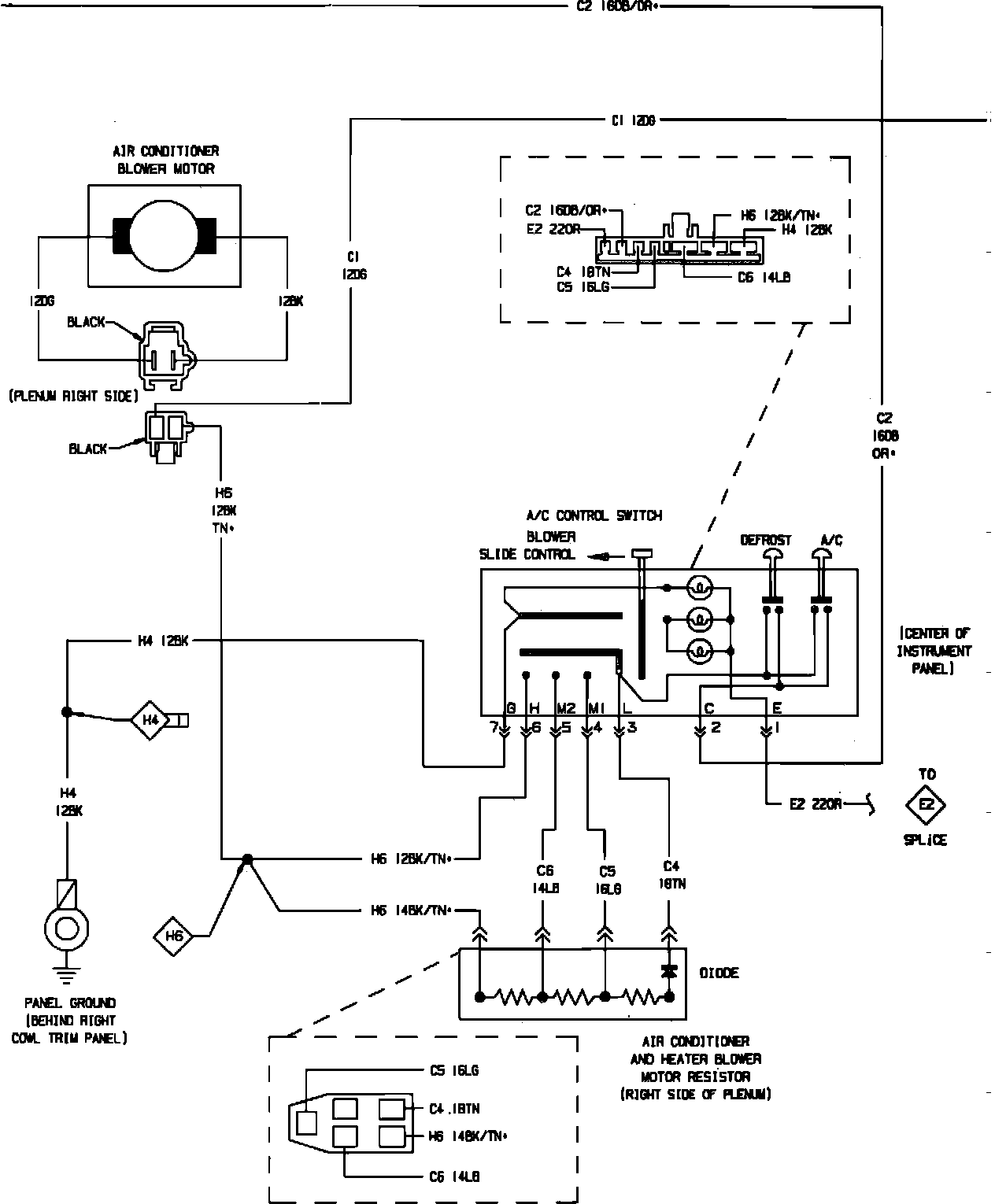

Air Conditioning And Heater System (Part 3 Of 4):



Air Conditioning And Heater System (Part 4 Of 4):
