Brake Switch (Cruise Control)
Brake Switch (Cruise Control)

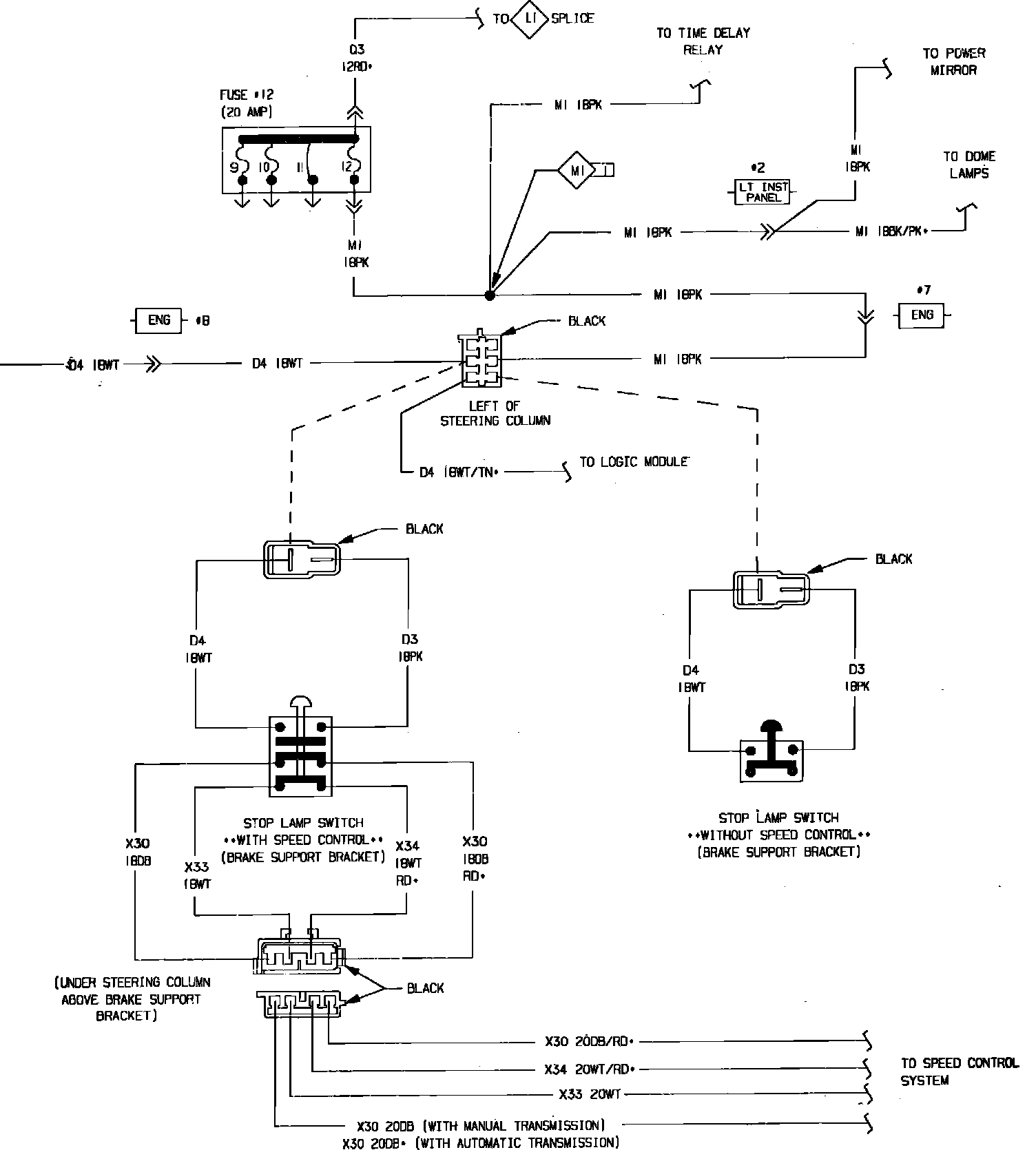

Fig. 23 Hazard Flasher & Stop/Turn System Wiring Circuit (Part 1 of 2):

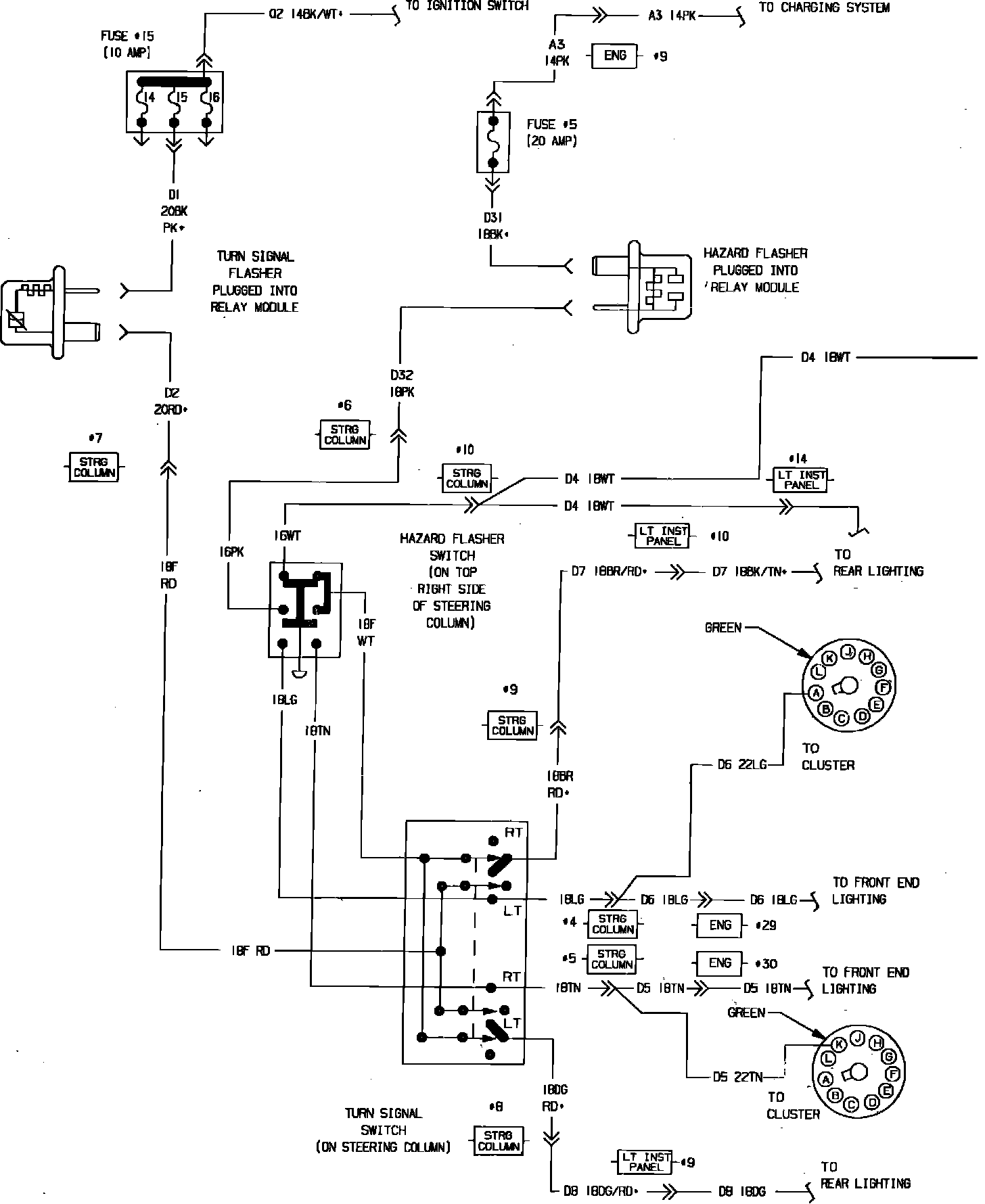

Fig. 23 Hazard Flasher & Stop/Turn System Wiring Circuit (Part 2 of 2):
