Home >> Plymouth >> 1987 >> Sundance L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp Dimmer Switch

Headlamp Dimmer Switch

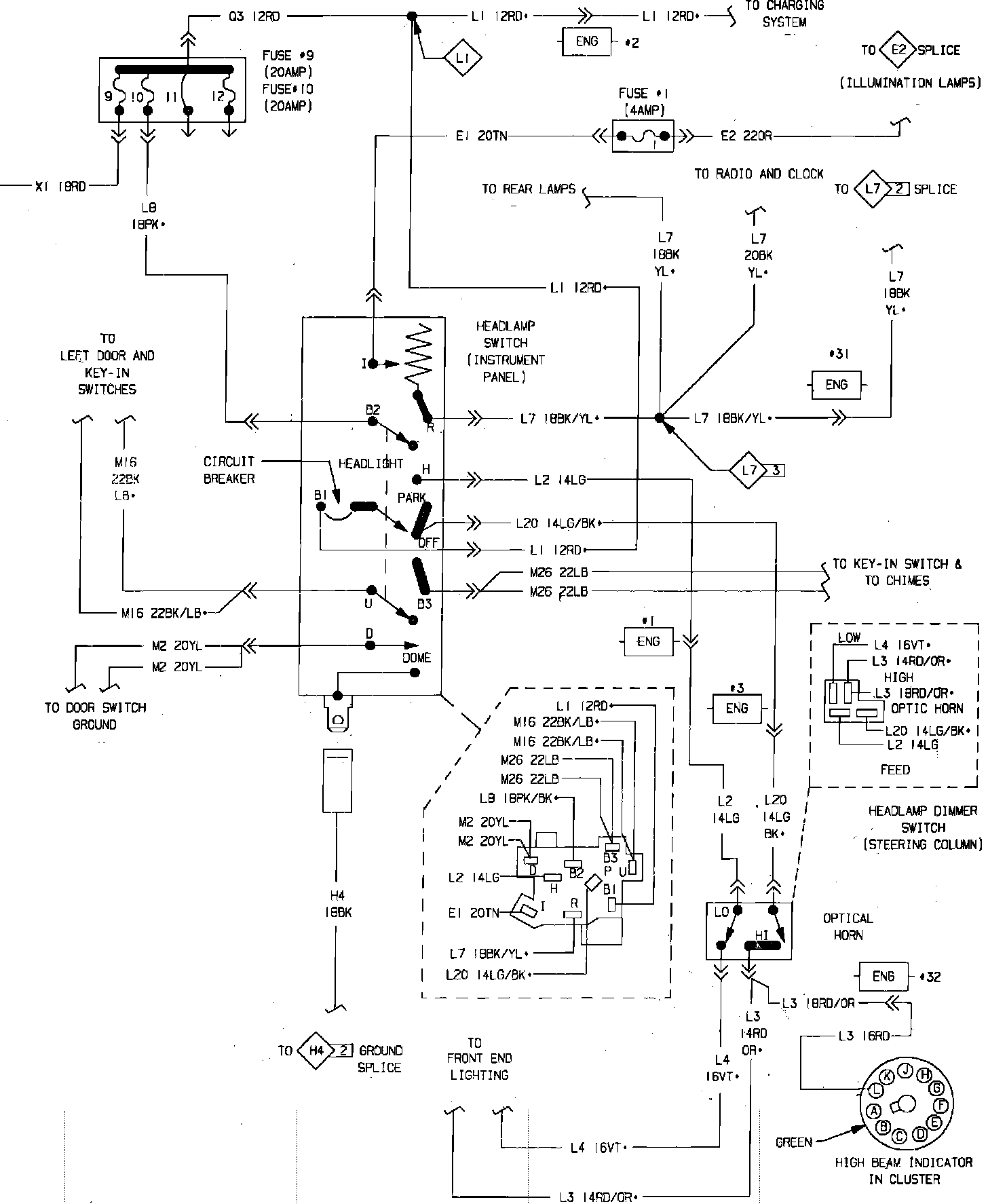

Fig. 24 Headlamp Switch & Horn System Wiring Circuit (Part 1 of 2):



Fig. 24 Headlamp Switch & Horn System Wiring Circuit (Part 2 of 2):
