Home >> Plymouth >> 1987 >> Sundance L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 4

Part 4

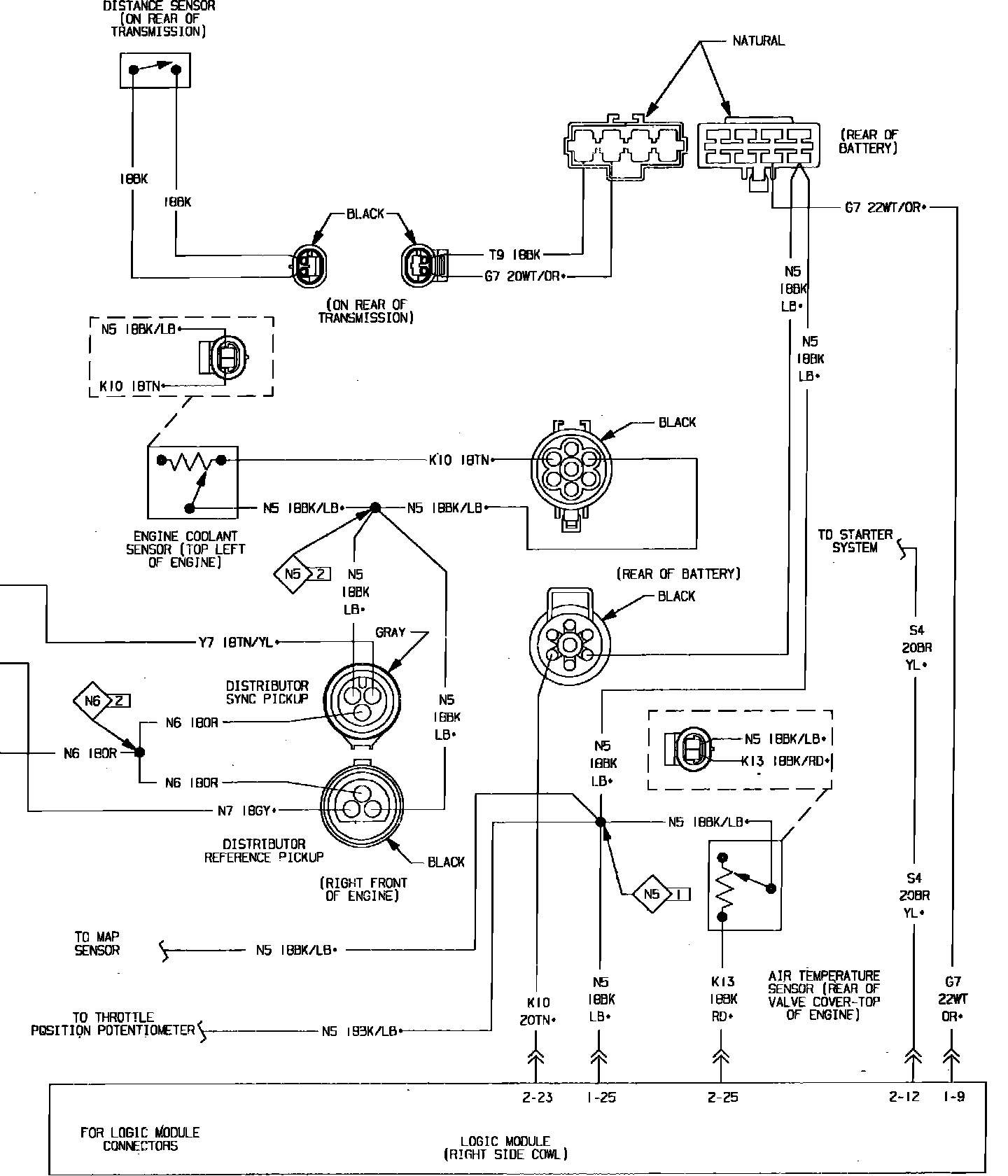

Fig. 19 Electronic Fuel Injection Ignition System Wiring Circuit (Part 4 of 5). With Turbocharger:
