Cruise Control Switch

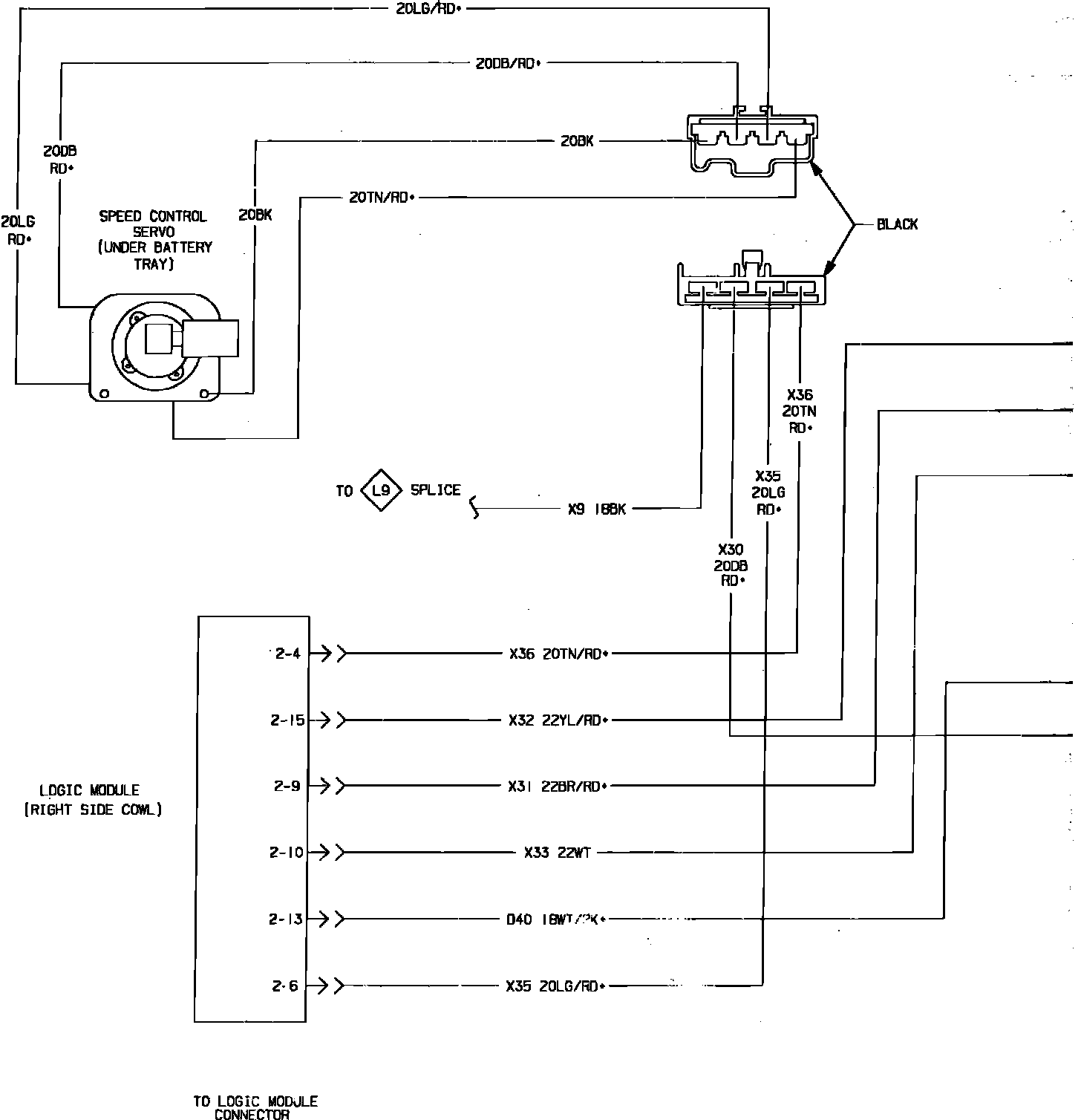

Fig. 36 Speed Control & Stop Lamp Switch Wiring Circuit (Part 1 of 2):

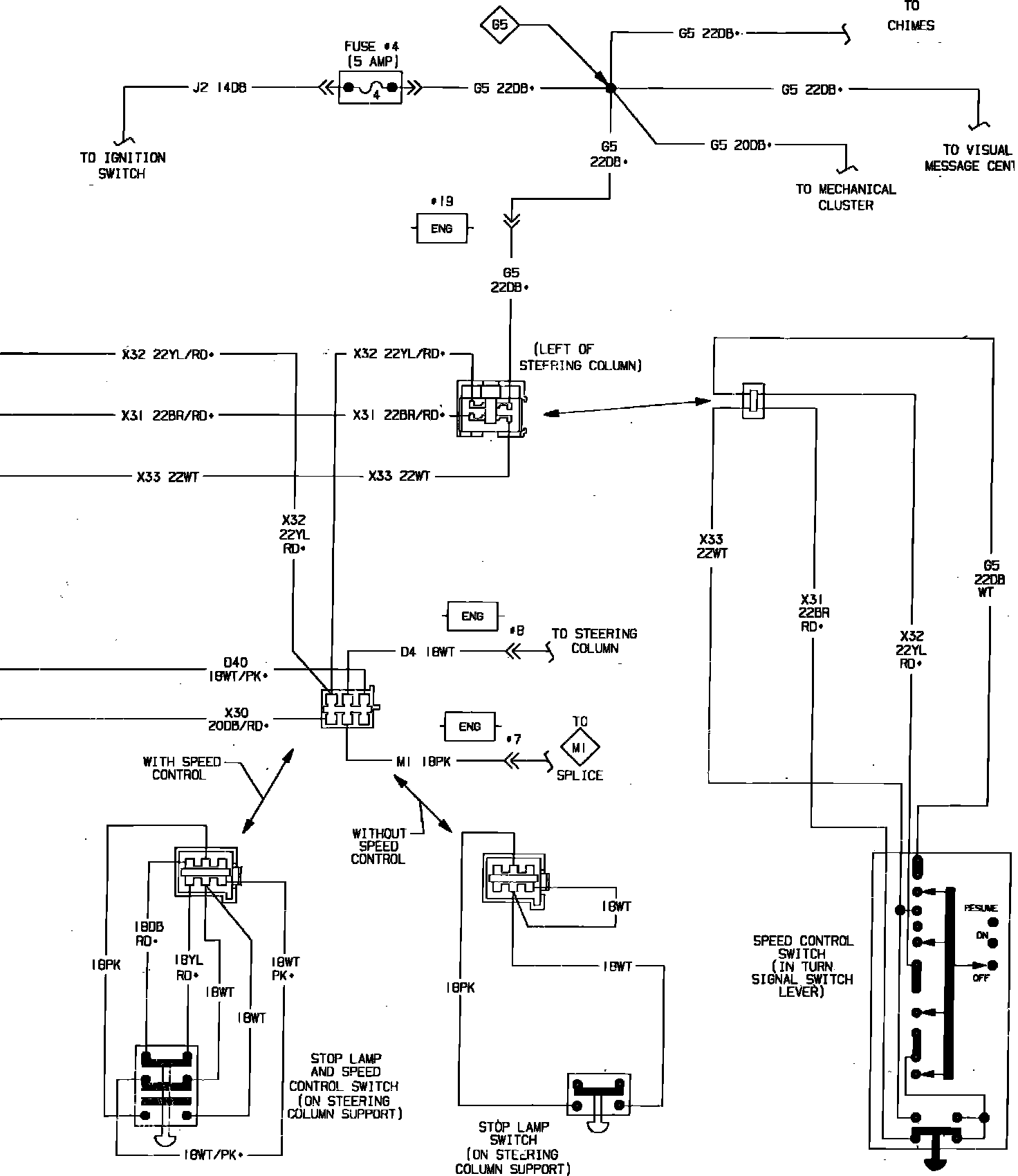

Fig. 36 Speed Control & Stop Lamp Switch Wiring Circuit (Part 2 of 2):
