Dome Lamp

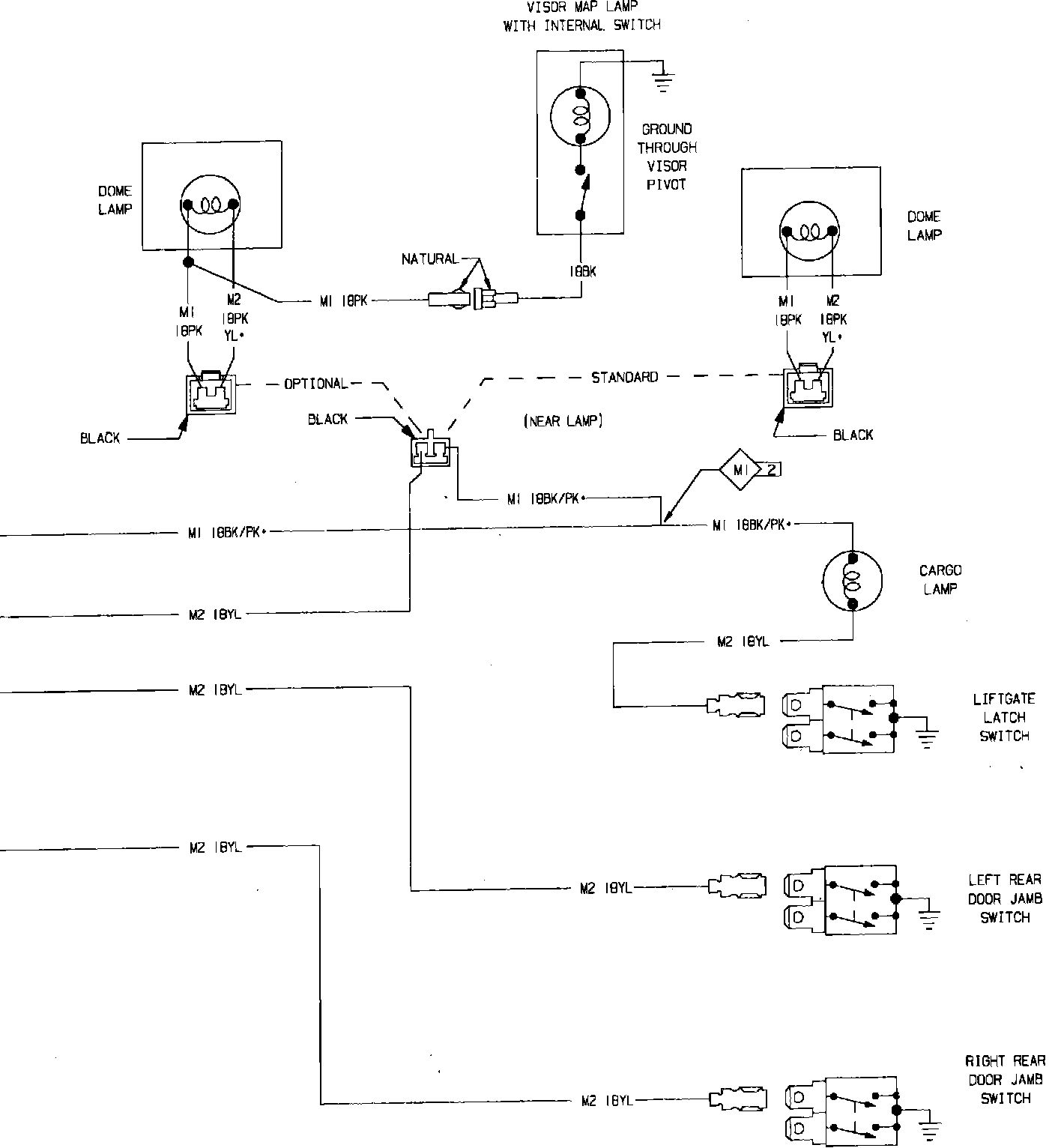

Fig. 16 Dome Lamp System Wiring Circuit (Part 1 of 2):

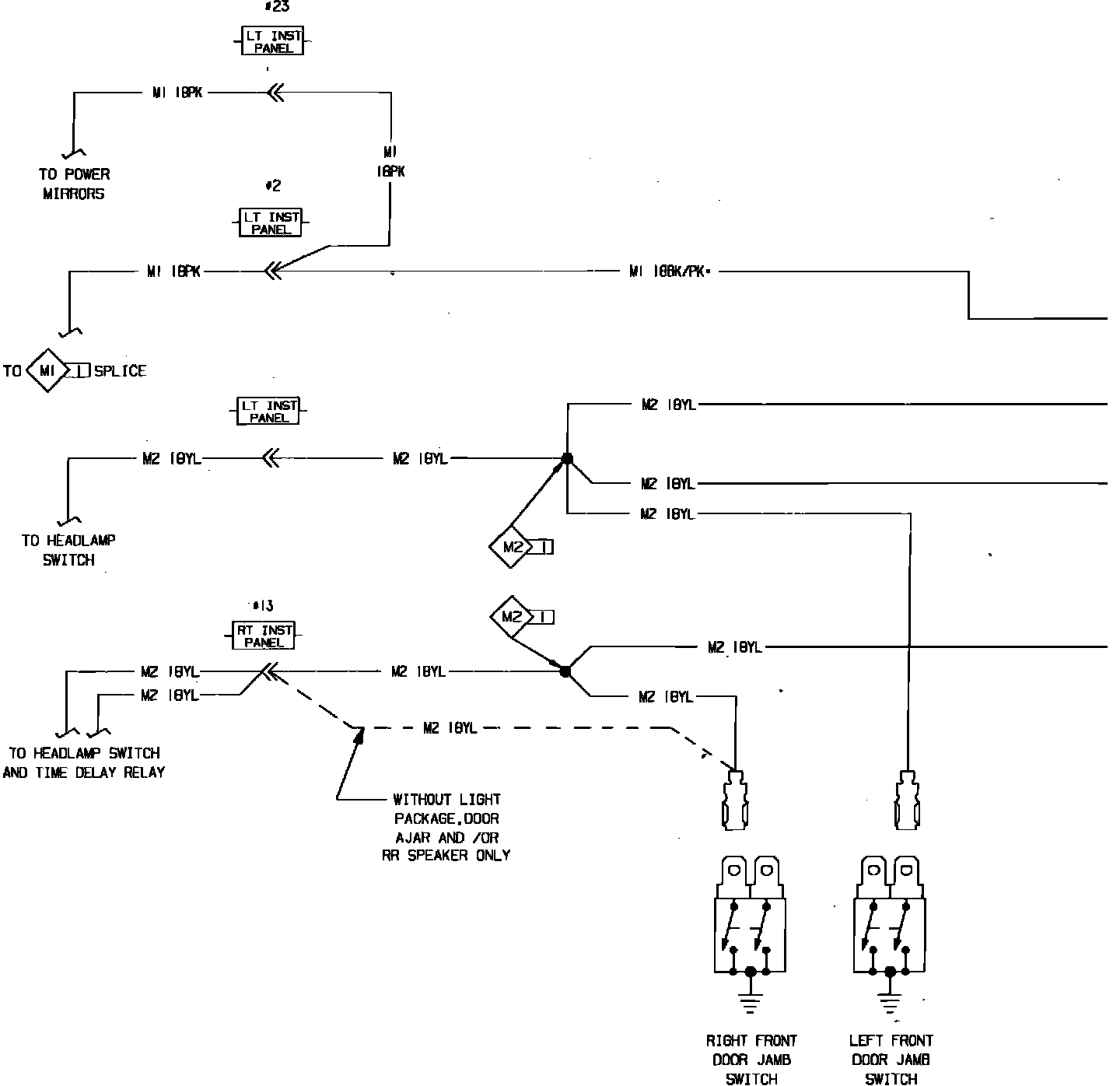

Fig. 16 Dome Lamp System Wiring Circuit (Part 2 of 2):
