System Diagram

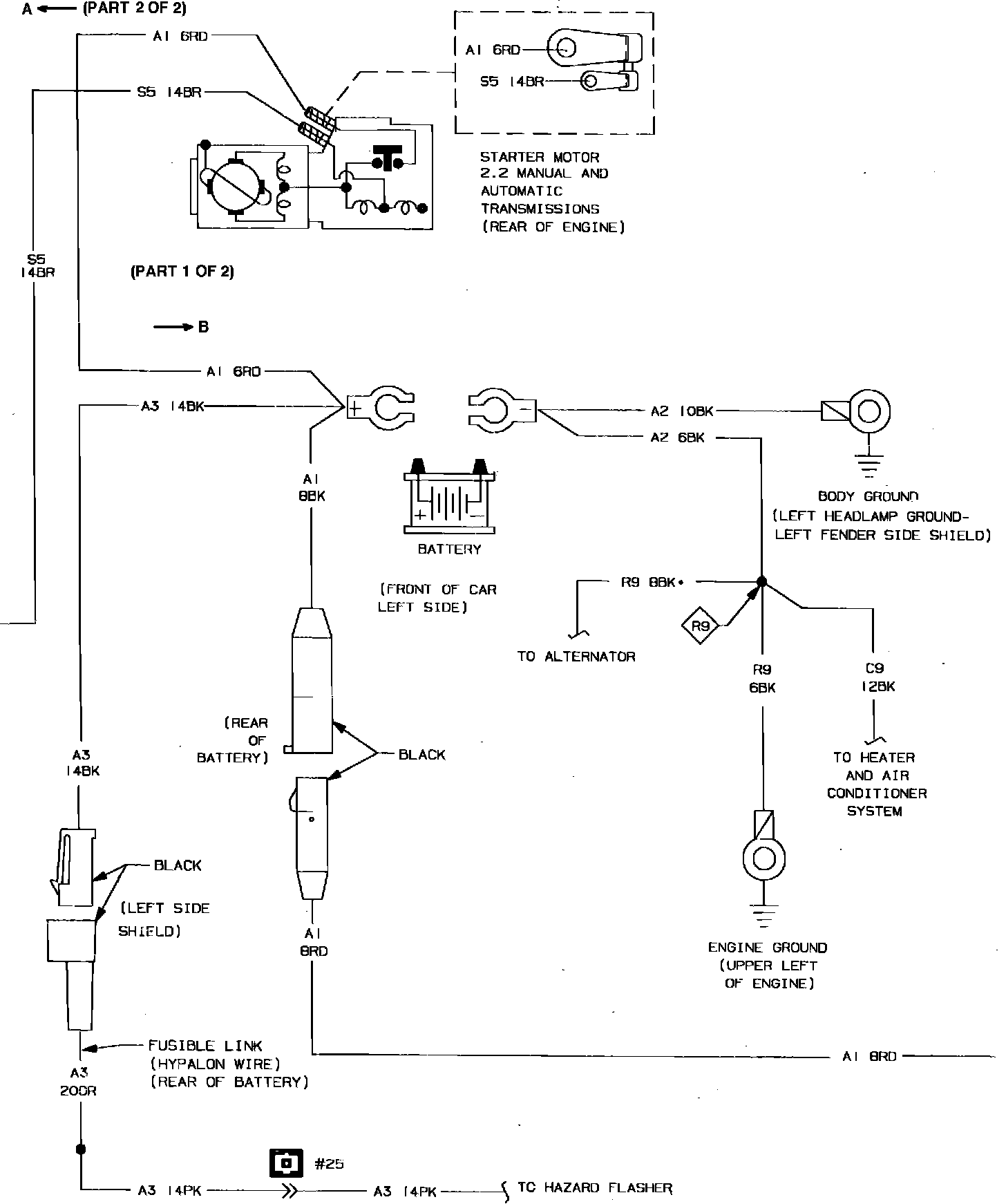

Fig. 16 Charging & Starting system Wiring Circuit (Part 1 of 4):



Fig. 16 Charging & Starting System Wiring Circuit (Part 2 of 4):



Fig. 16 Charging & Starting System Wiring Circuit (Part 3 of 4):



Fig. 16 Charging & Starting System Wiring Circuit (Part 4 of 4):
