Front End Lighting

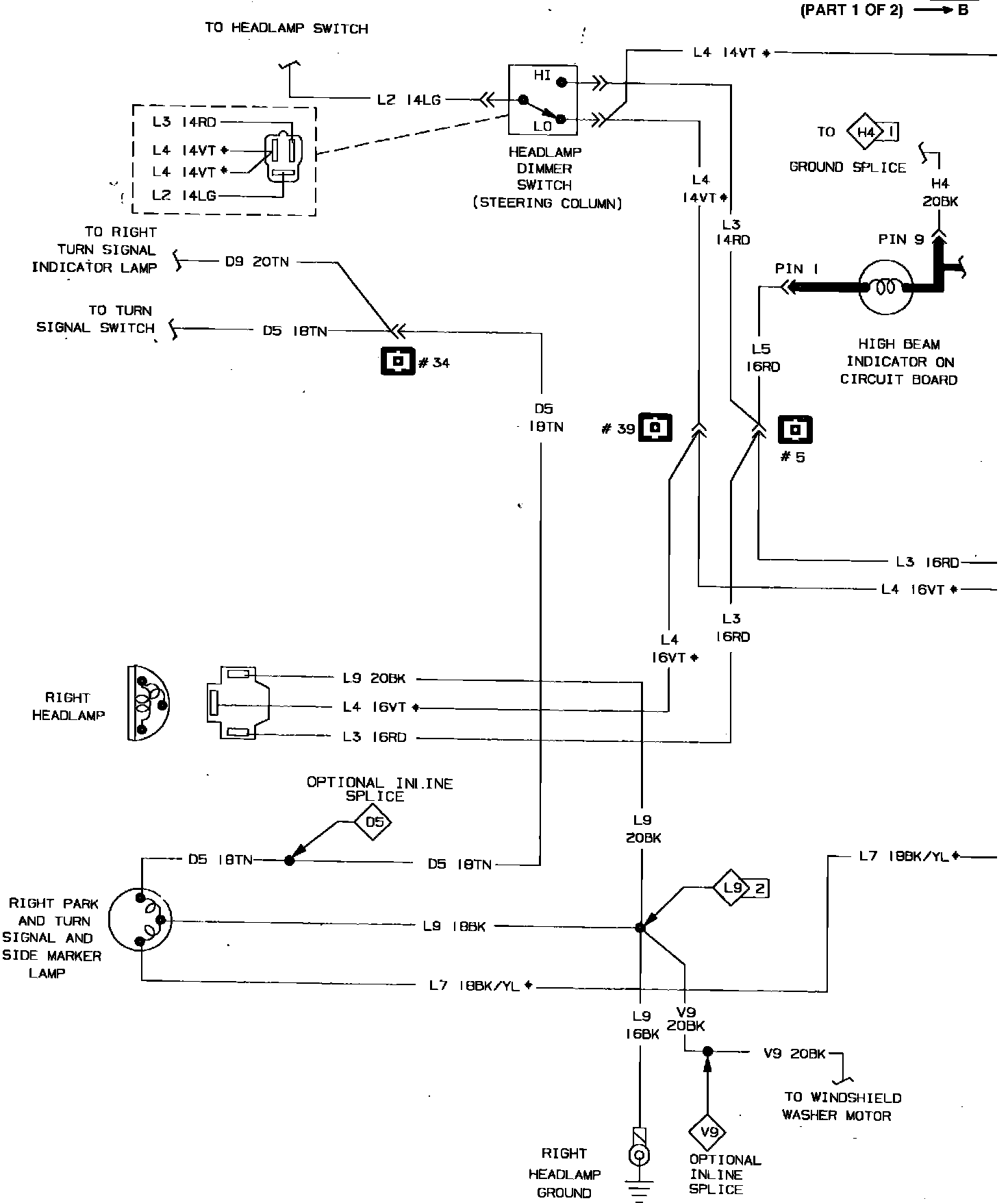

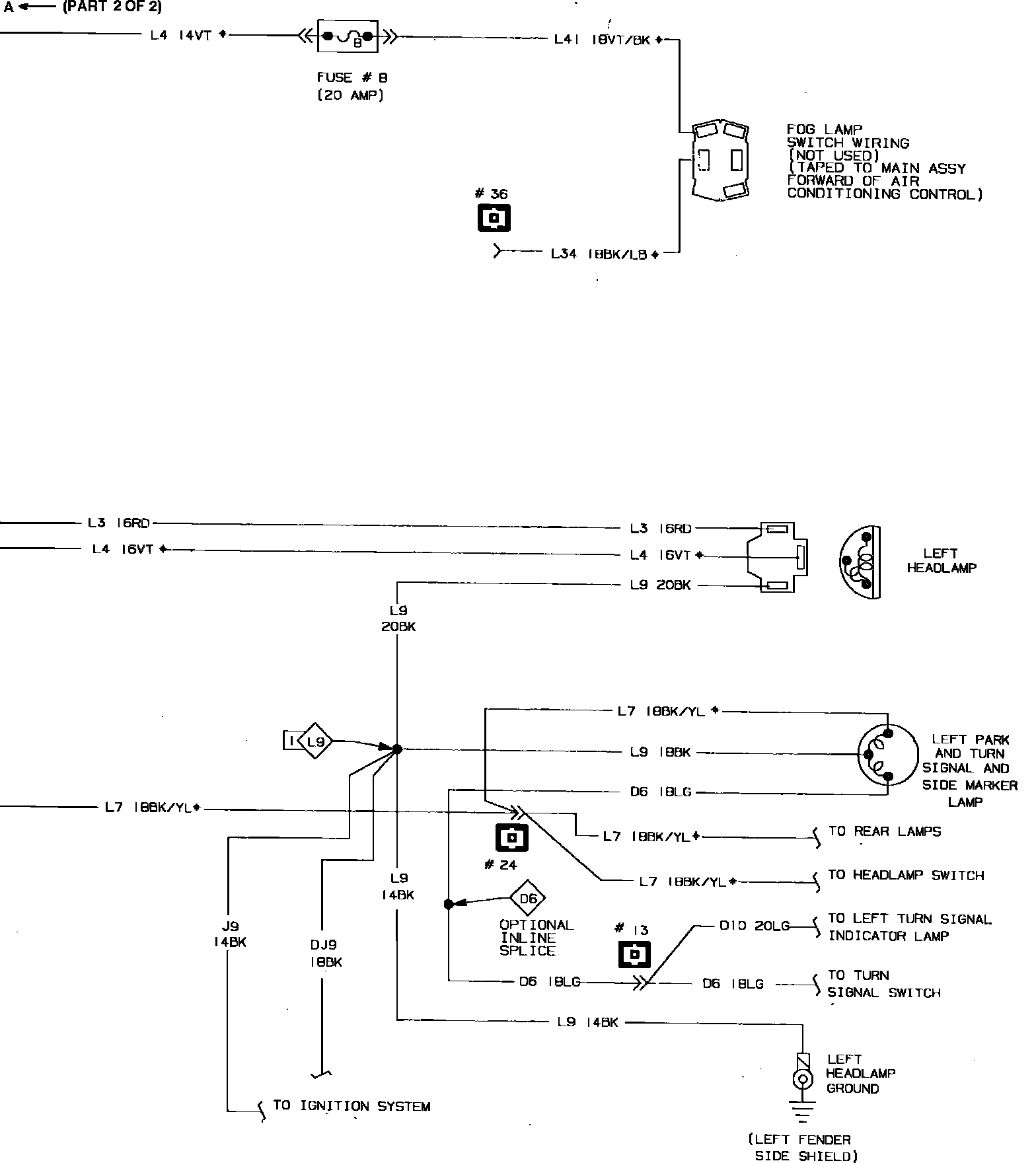

Fig. 19 Front End Lighting Wiring Circuit. Charger & Turismo:



Fig. 19 Front End Lighting Wiring Circuit. Charger & Turismo:

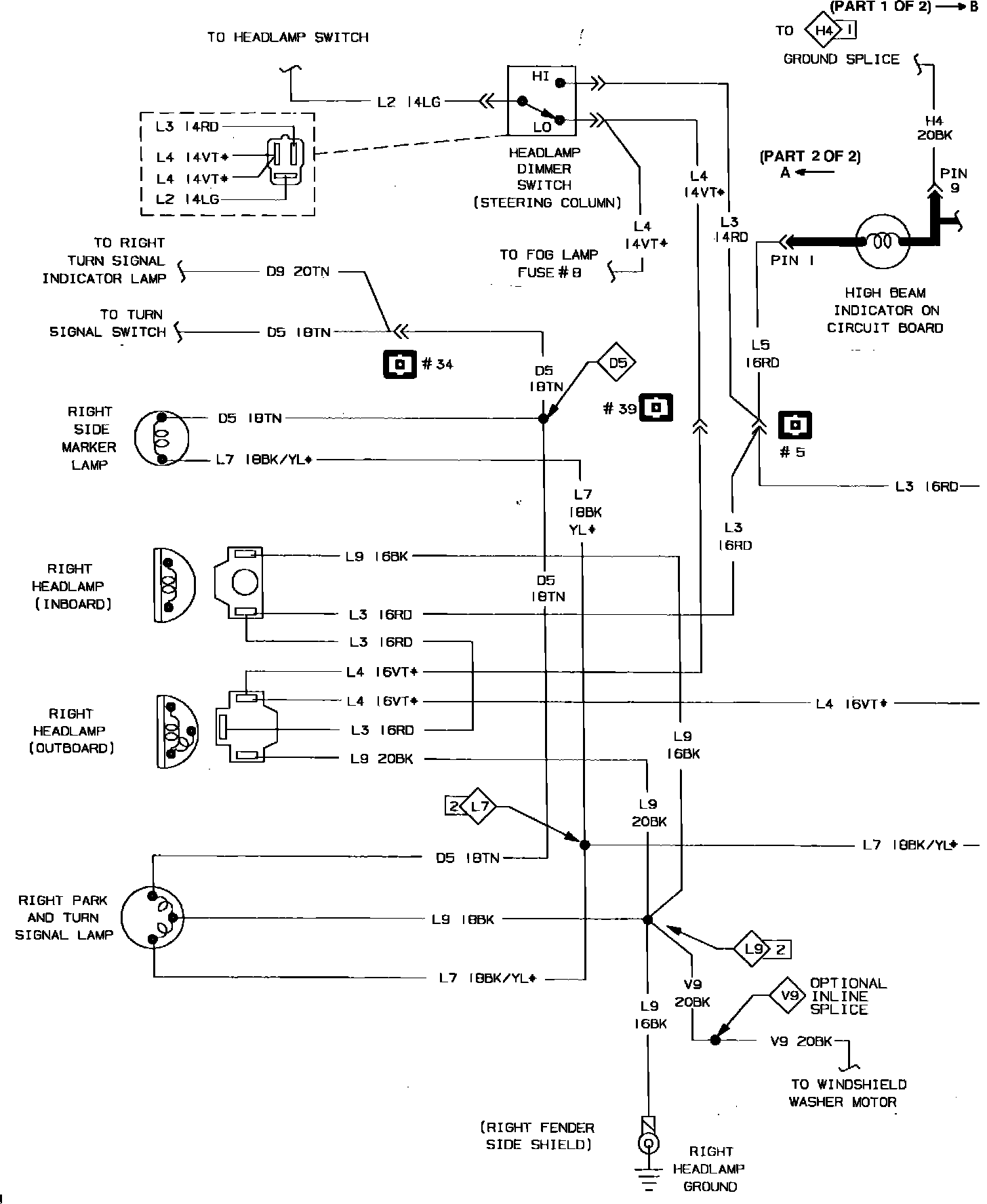

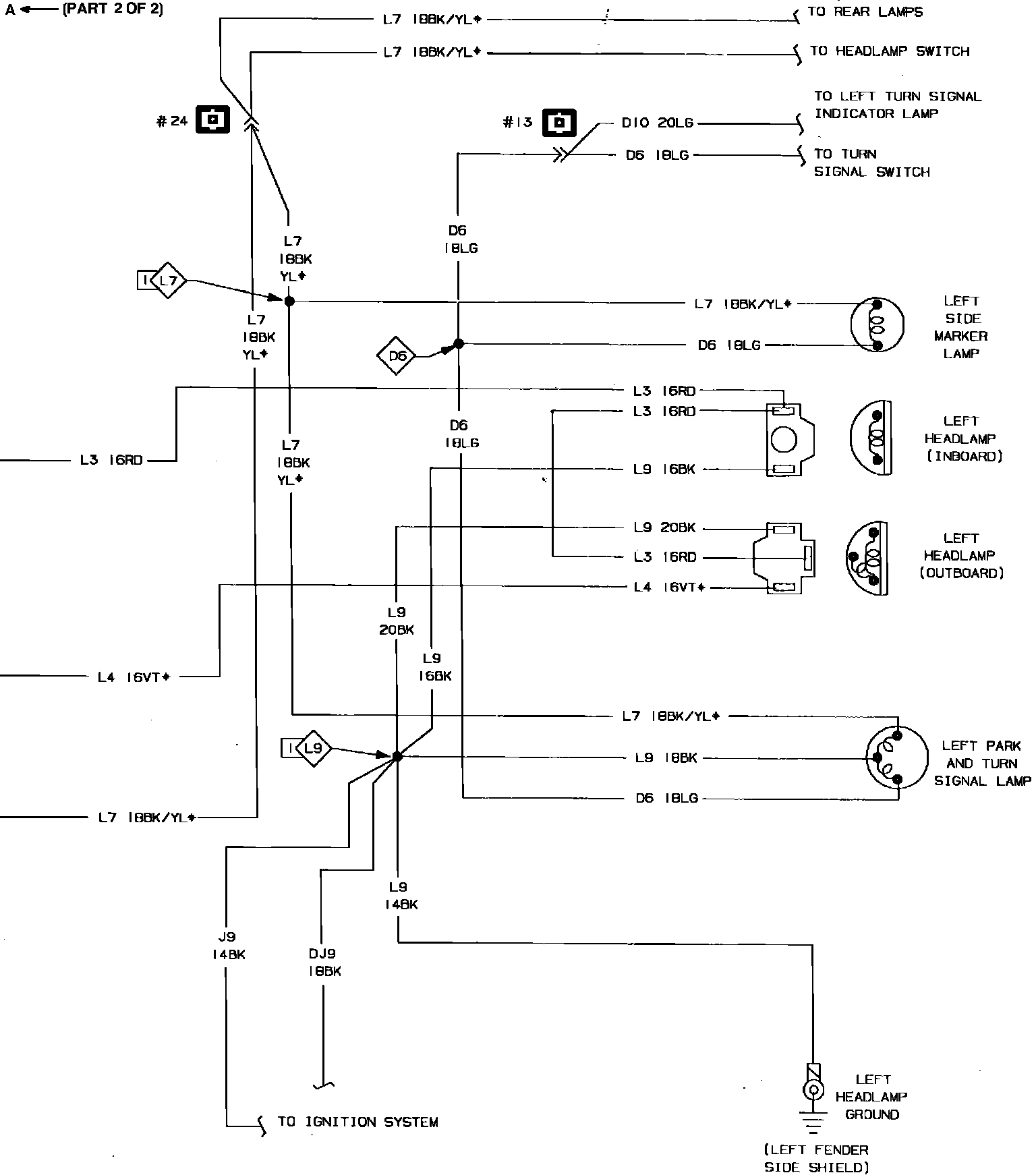

Fig. 20 Front Eng Lighting Wiring Circuit. Horizon & Omni:



Fig. 20 Front End Lighting Wiring Circuit. Horizon & Omni:
