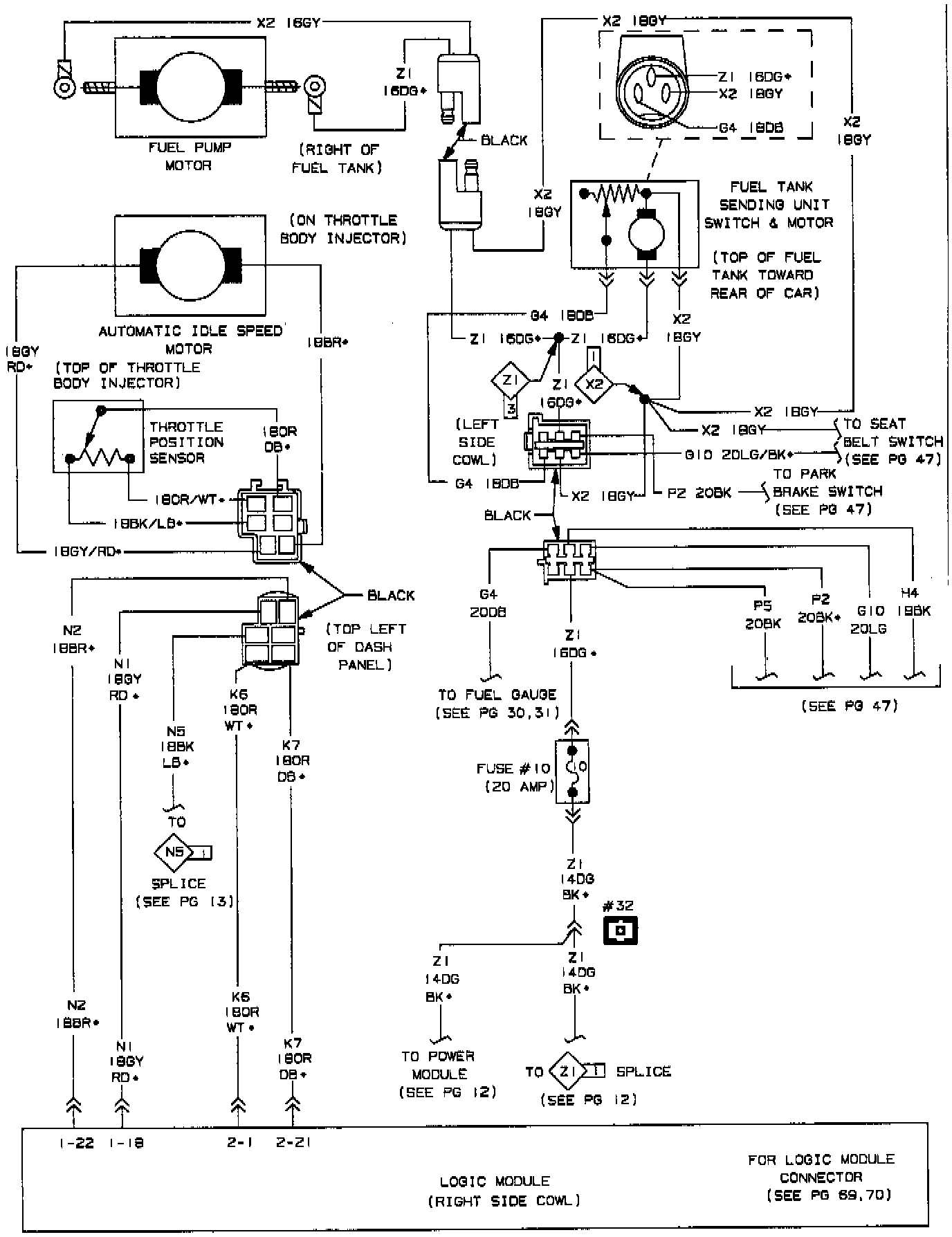

Home >> Plymouth >> 1987 >> Turismo L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 5

Part 5

Part 5 Of 5:
