Radiator Fan and Compressor Circuits

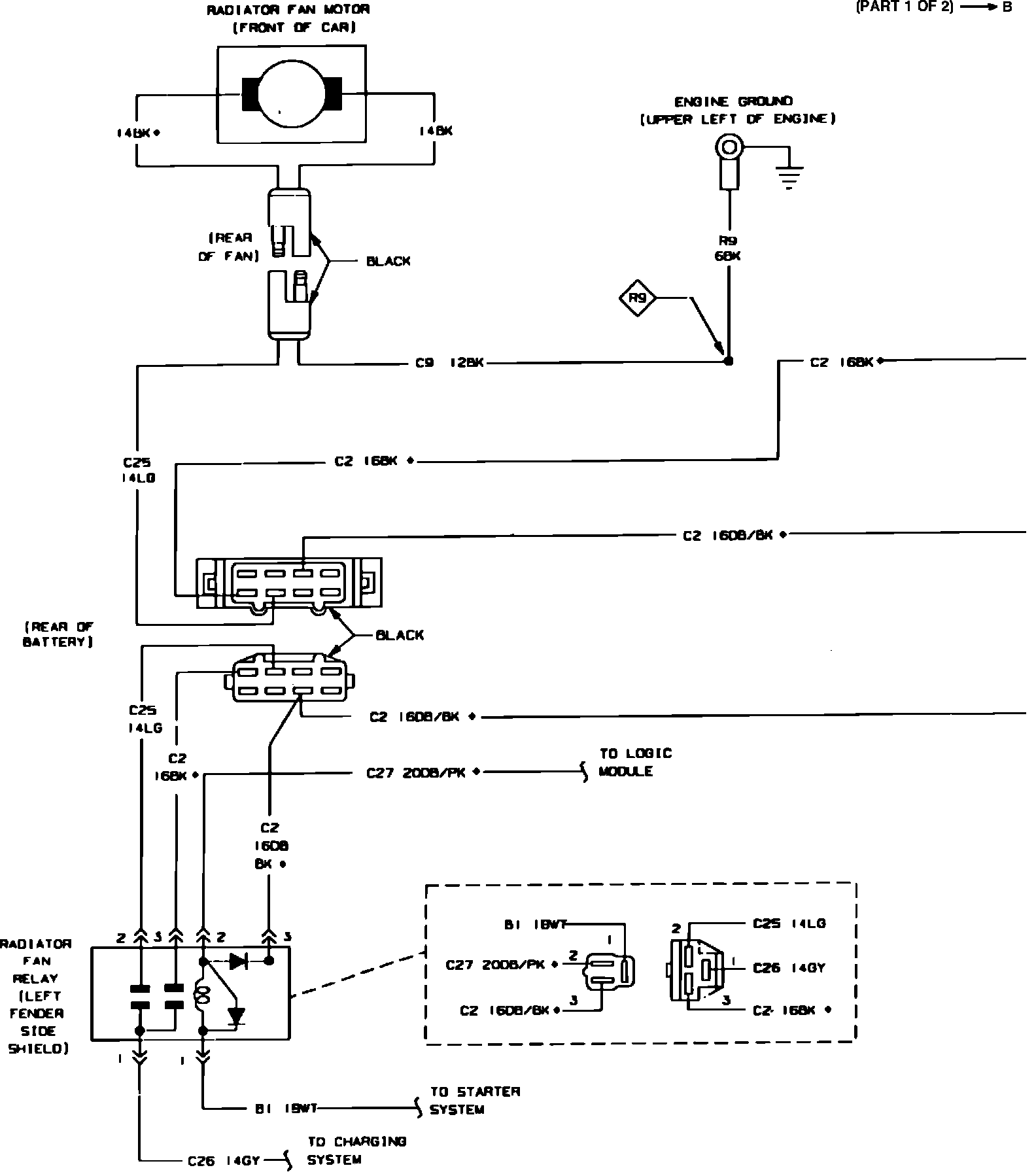

Radiator Fan And Compressor Circuits Part 1 Of 2:

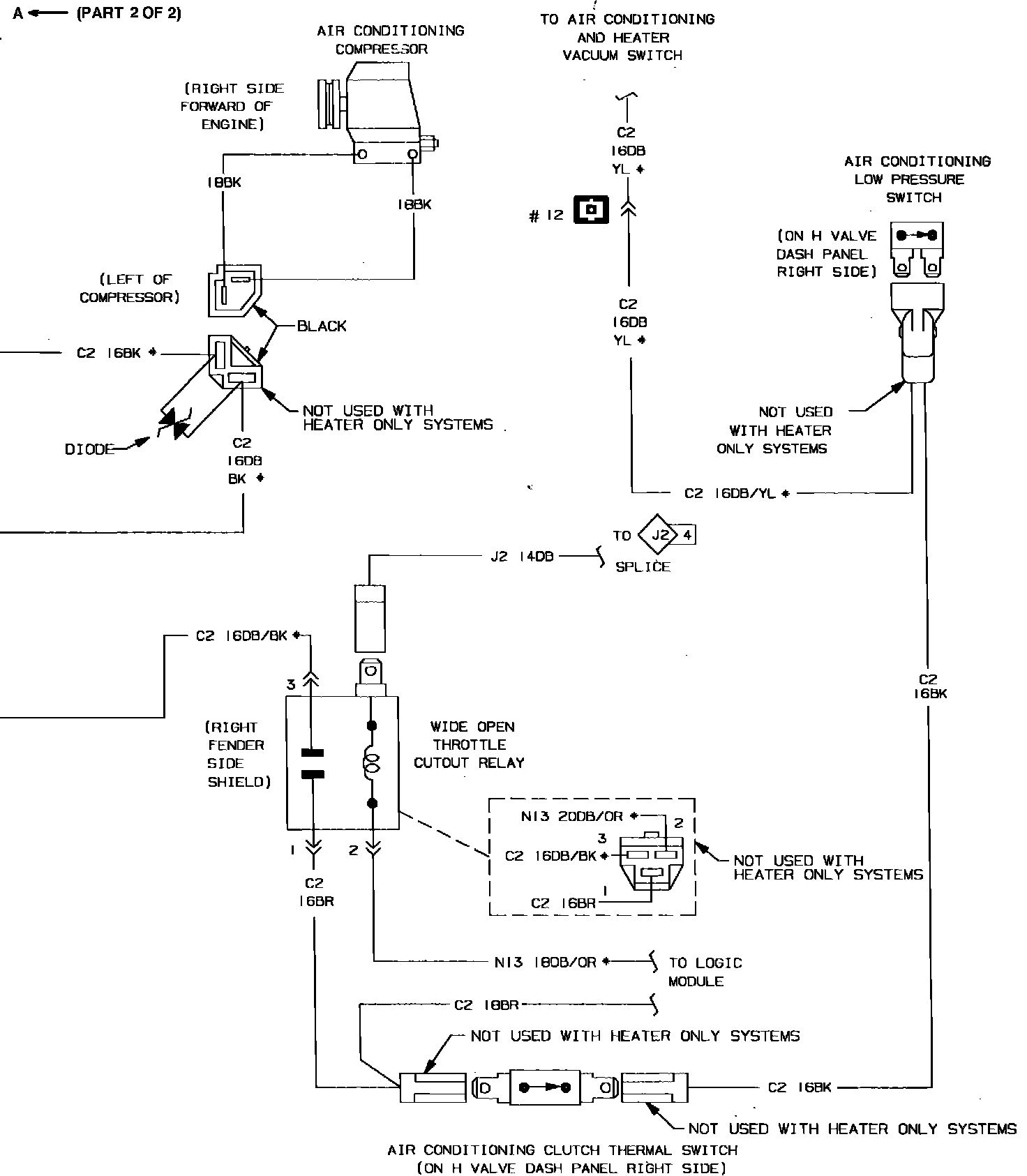

Radiator Fan And Compressor Circuits Part 2 Of 2:



Radiator Fan And Compressor Circuits Part 1 Of 2:



Radiator Fan And Compressor Circuits Part 2 Of 2:
