Oil Temperature Sensor/Switch, Engine

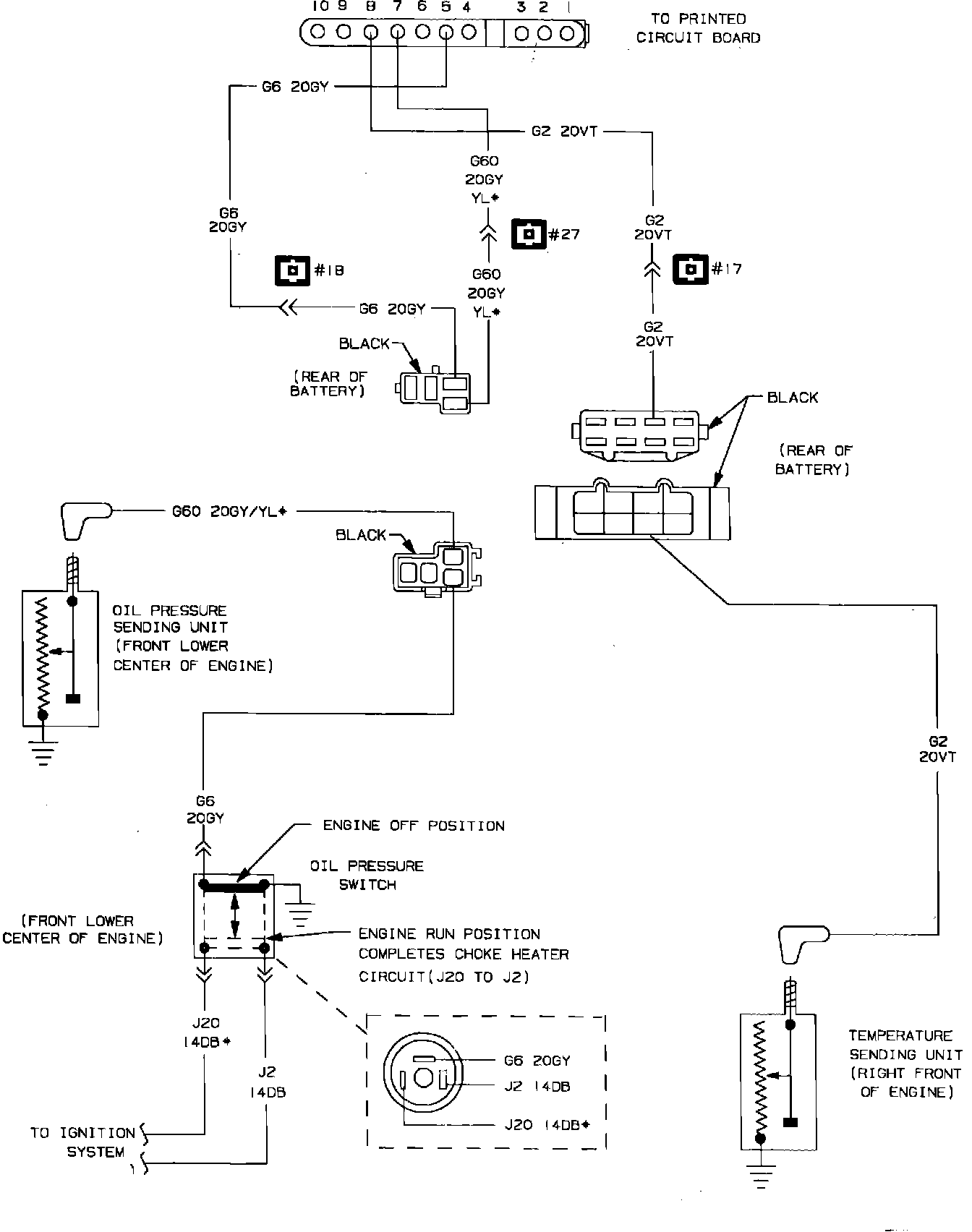

Fig. 35 Oil Pressure & Temperature Warning System Wiring Circuit:
