Automatic Temperature Control (ATC)
Automatic Temperature Control (ATC)

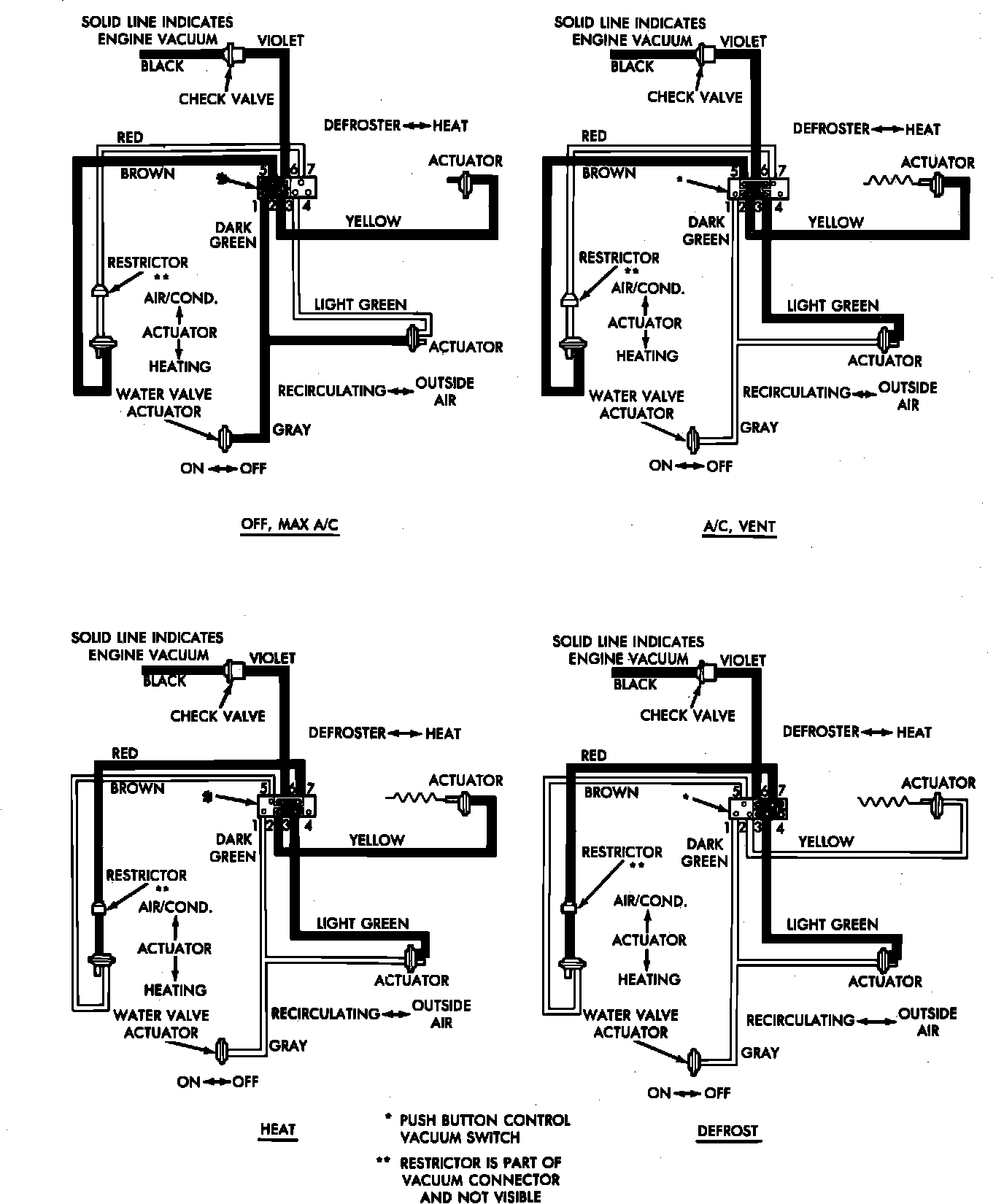

Air Conditioning & Heater Vacuum Hose Routing. 1987 Front Wheel Drive Charger, Horizon, Omni & Turismo:
