Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

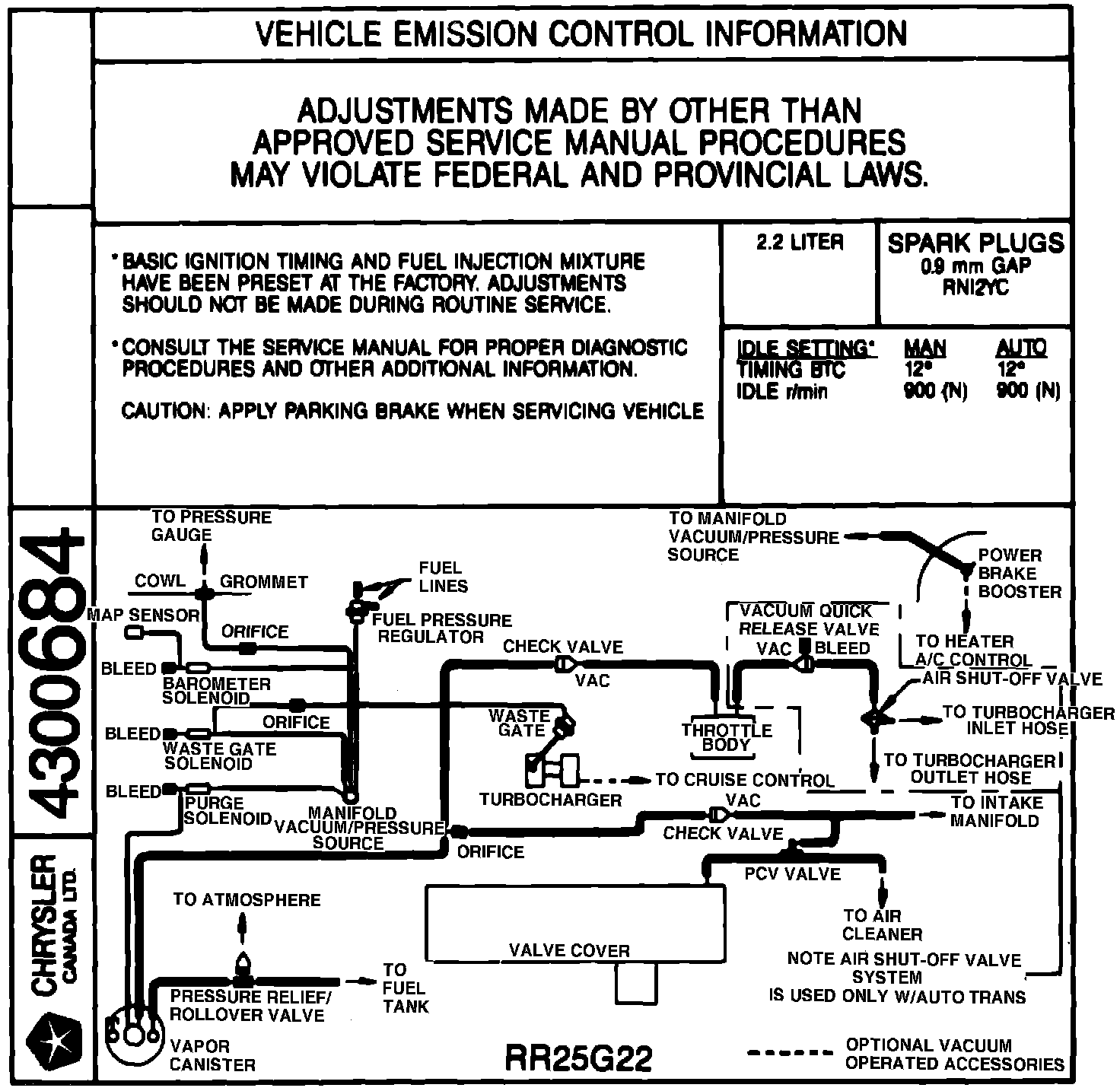

Fig. 3 Vacuum Hose Routing. 1988 Turbo I Models:
Fig. 4 Vacuum Hose Routing. 1988 Turbo II Models:
