Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1988
>>
Caravelle L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
Steering Column

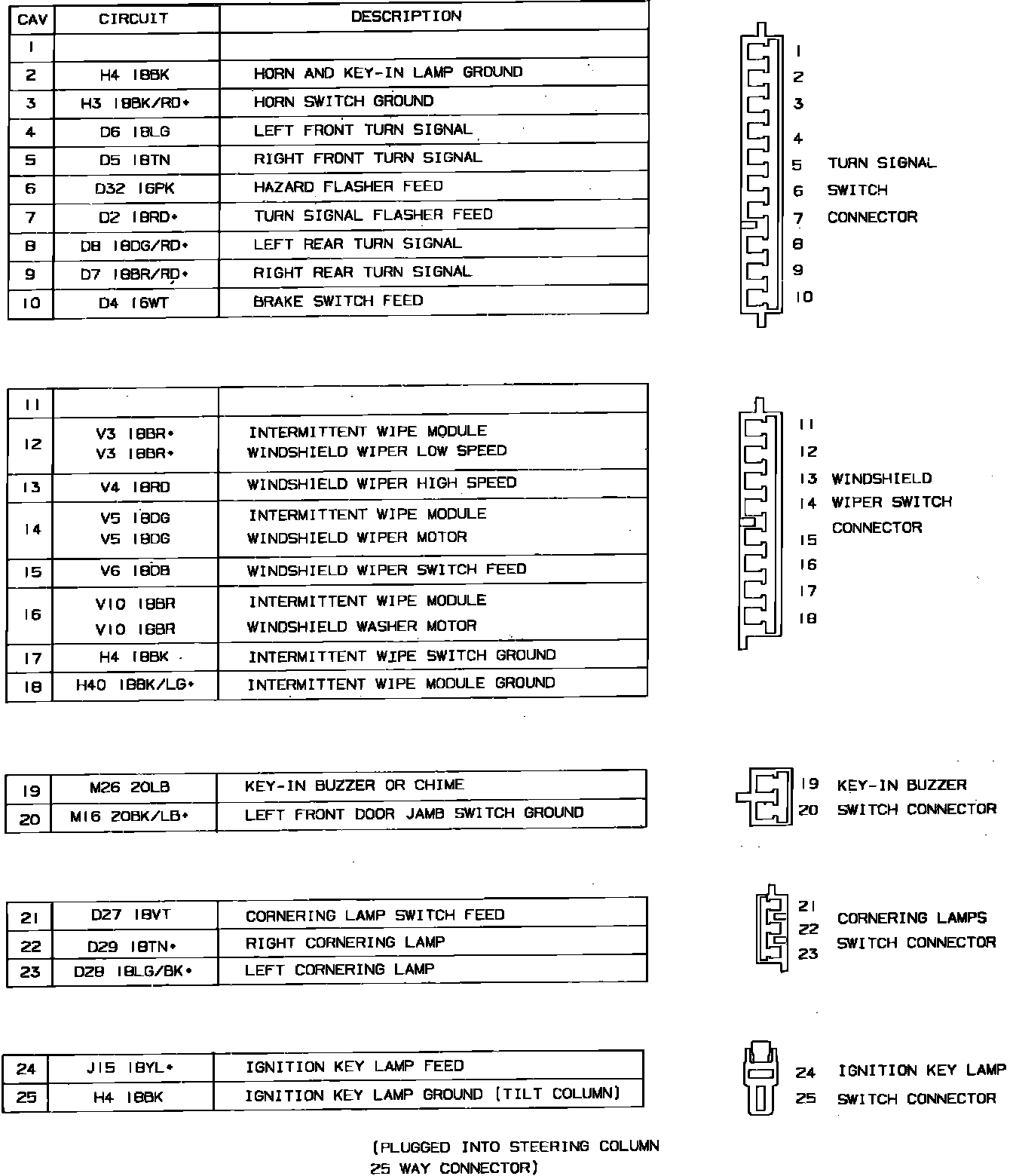

Instrument Panel To Steering Column Connectors:

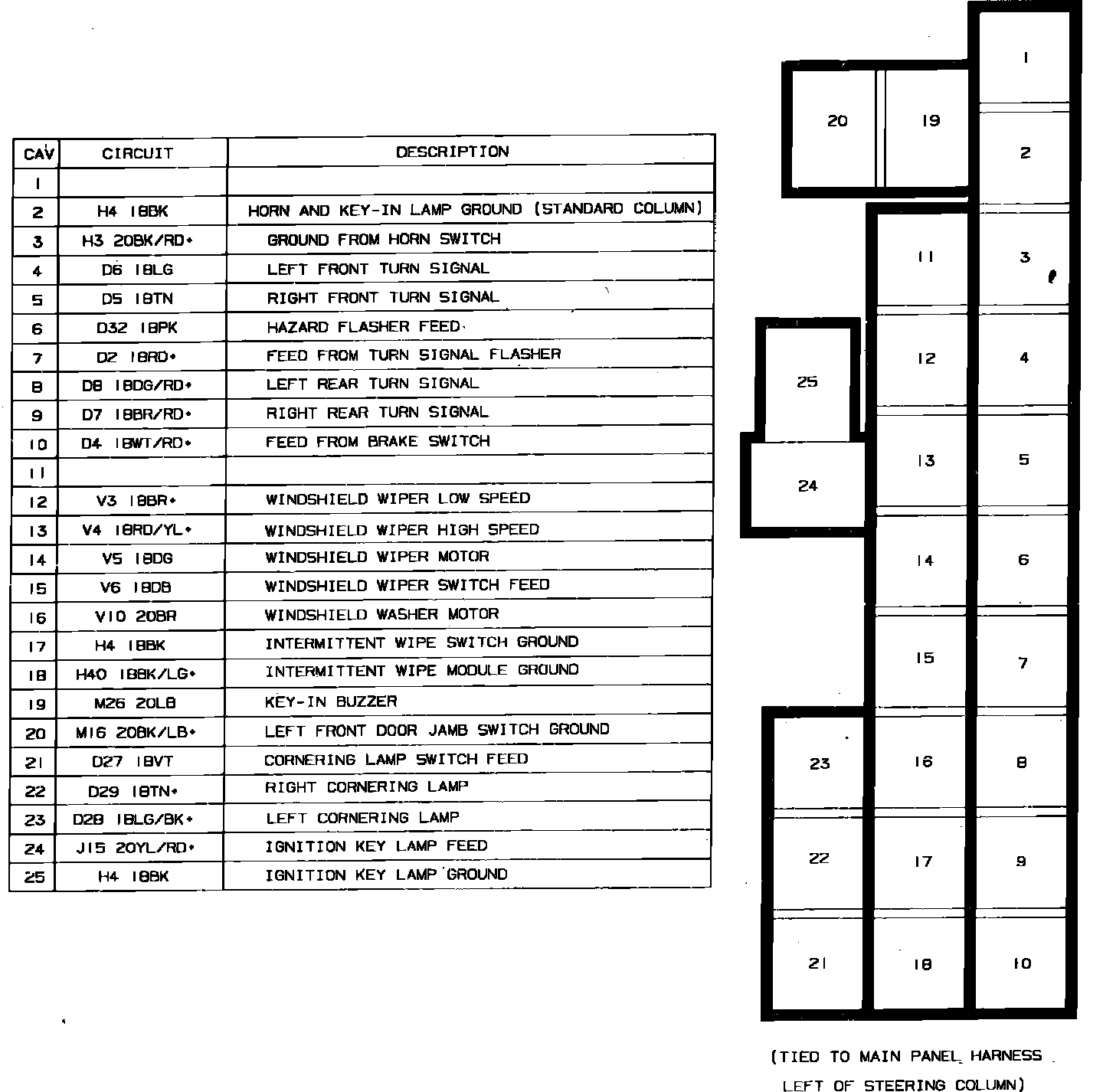

Instrument Panel To Steering Column Connectors:
