Home >> Plymouth >> 1988 >> Caravelle L4-153 2.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Relay >> Locations

Interior Lighting Relay: Locations

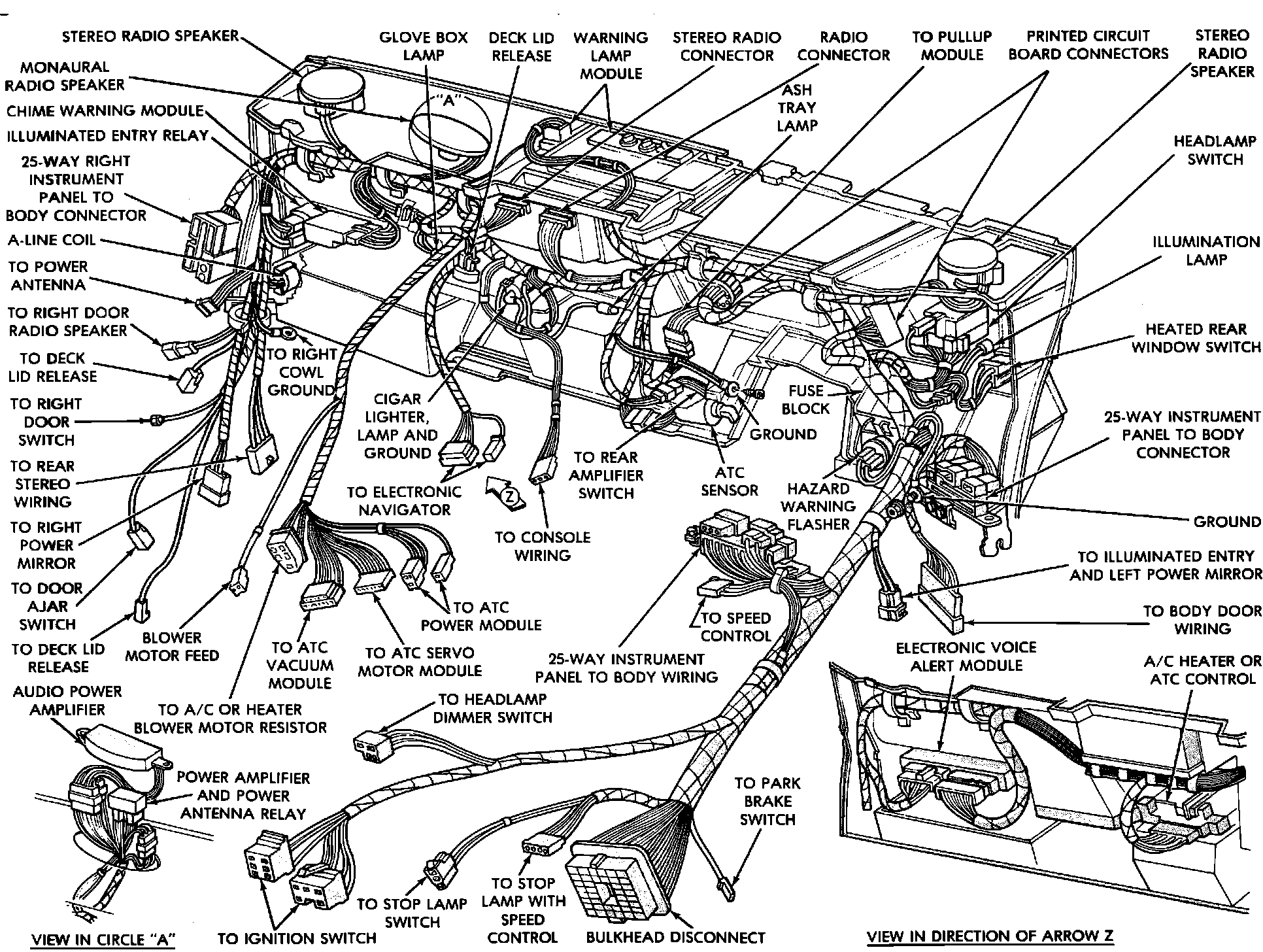

Instrument Panel Electrical Components:




Under RH Side Of I/P
