Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1988
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

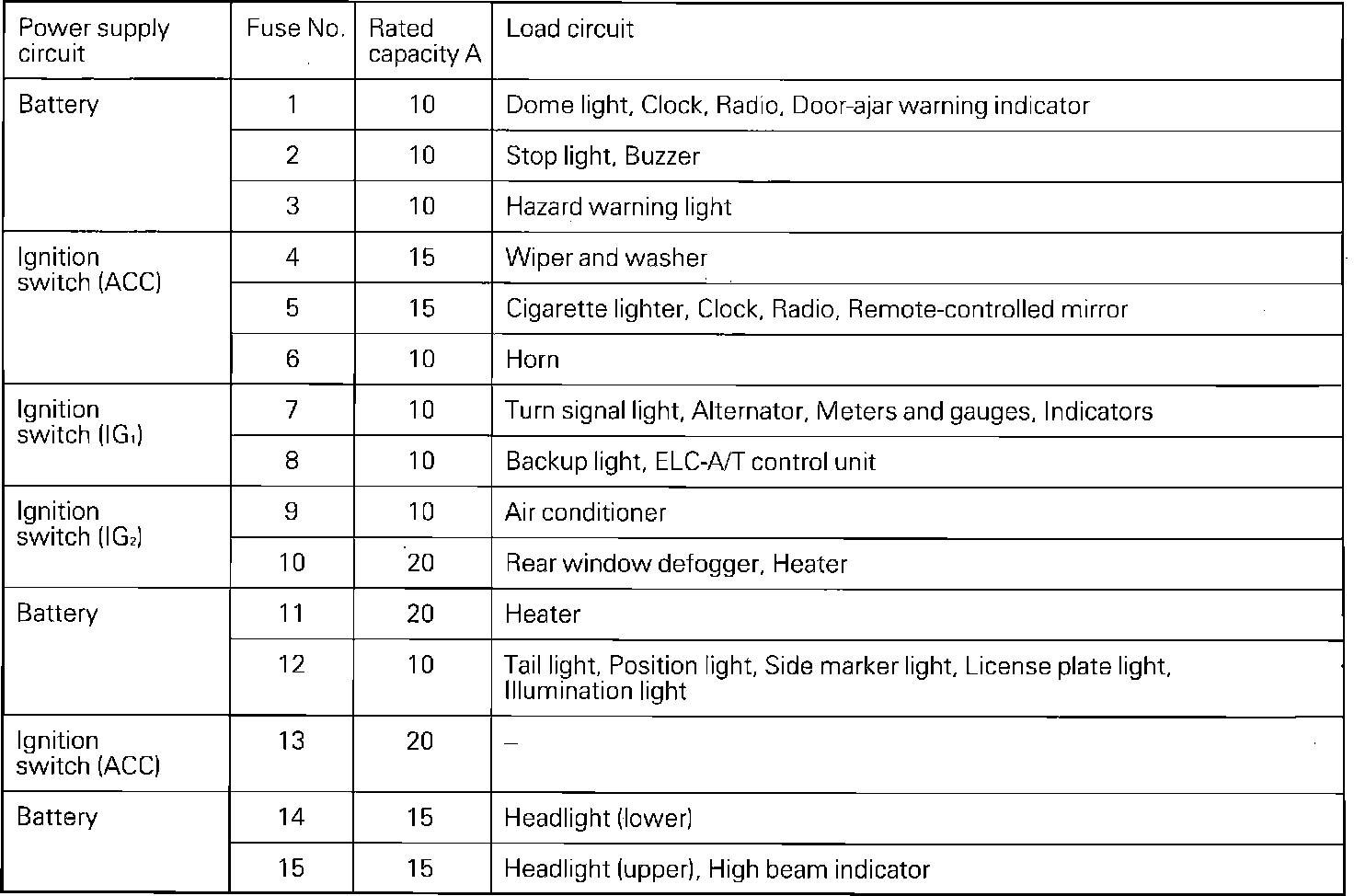

Fuse Panel Details:
Fuse Panel Details:
