Home >> Plymouth >> 1988 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Fuel Injected

Fuel Injected

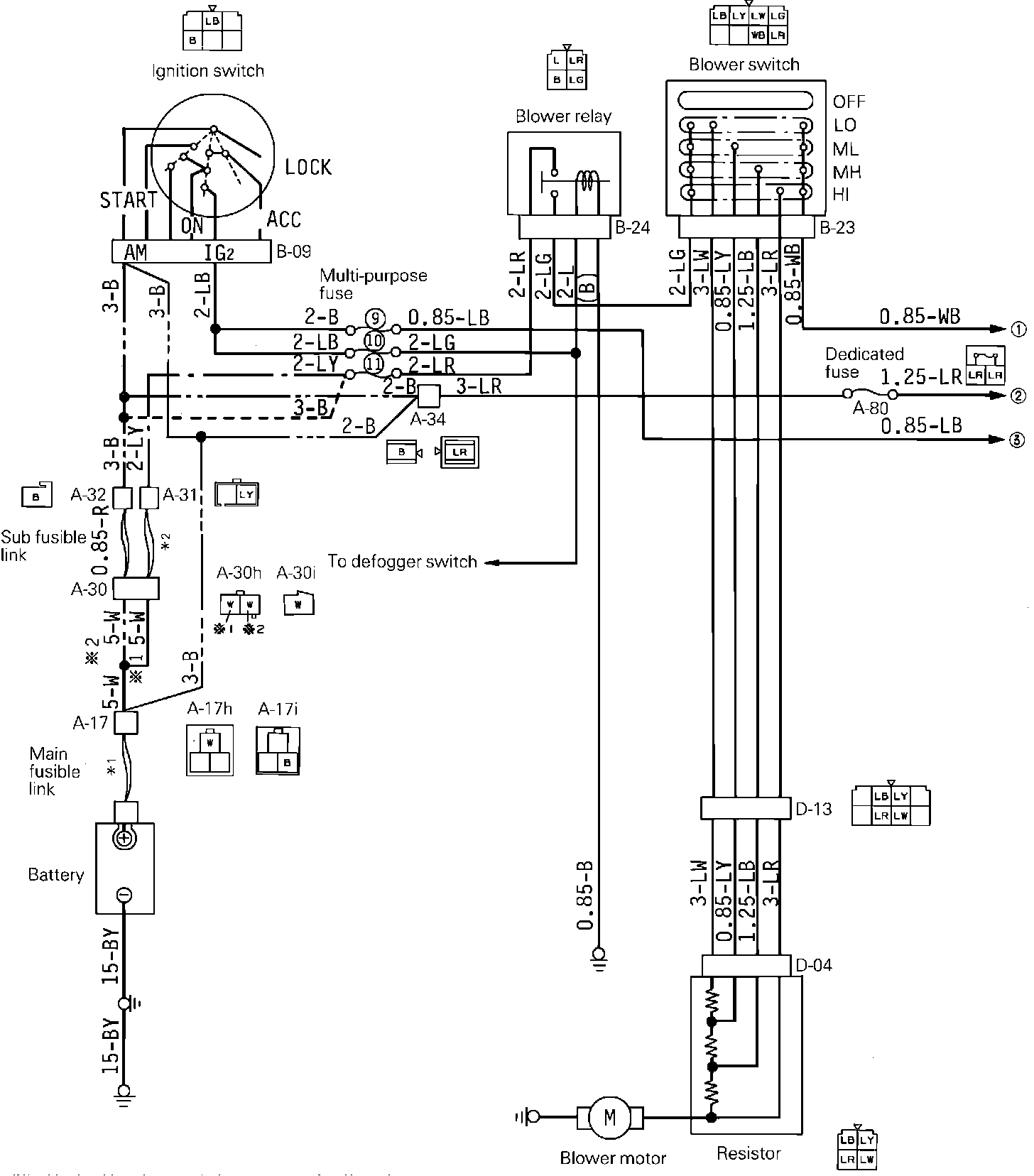

Air Conditioning - Fuel Injected:

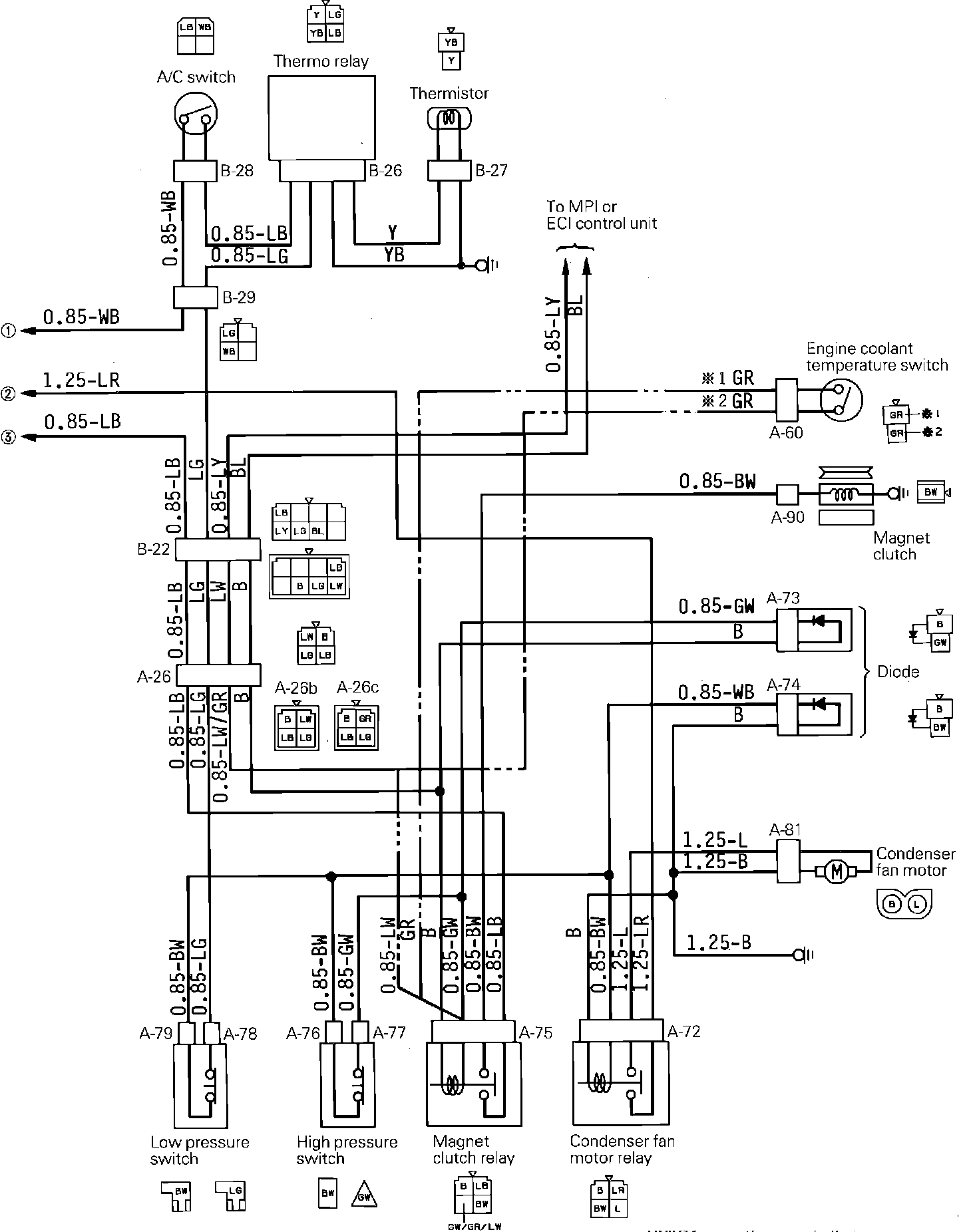

Air Conditioning - Fuel Injected:
