System Relay: Locations

Electronic Controlled Injection System Component Location (Part 1 Of 2).:

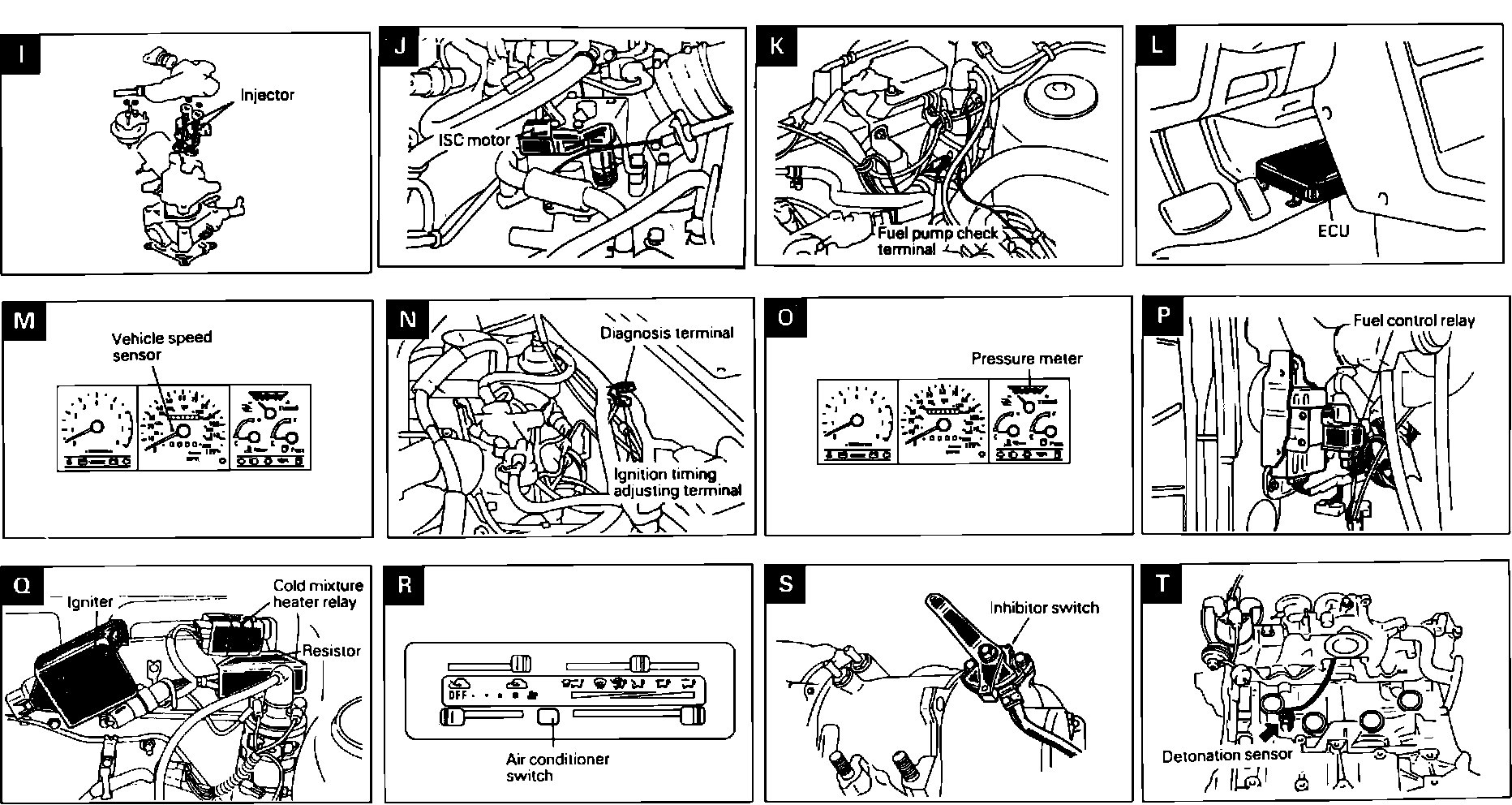

Electronic Controlled Injection System Component Location (Part 1 Of 2).:

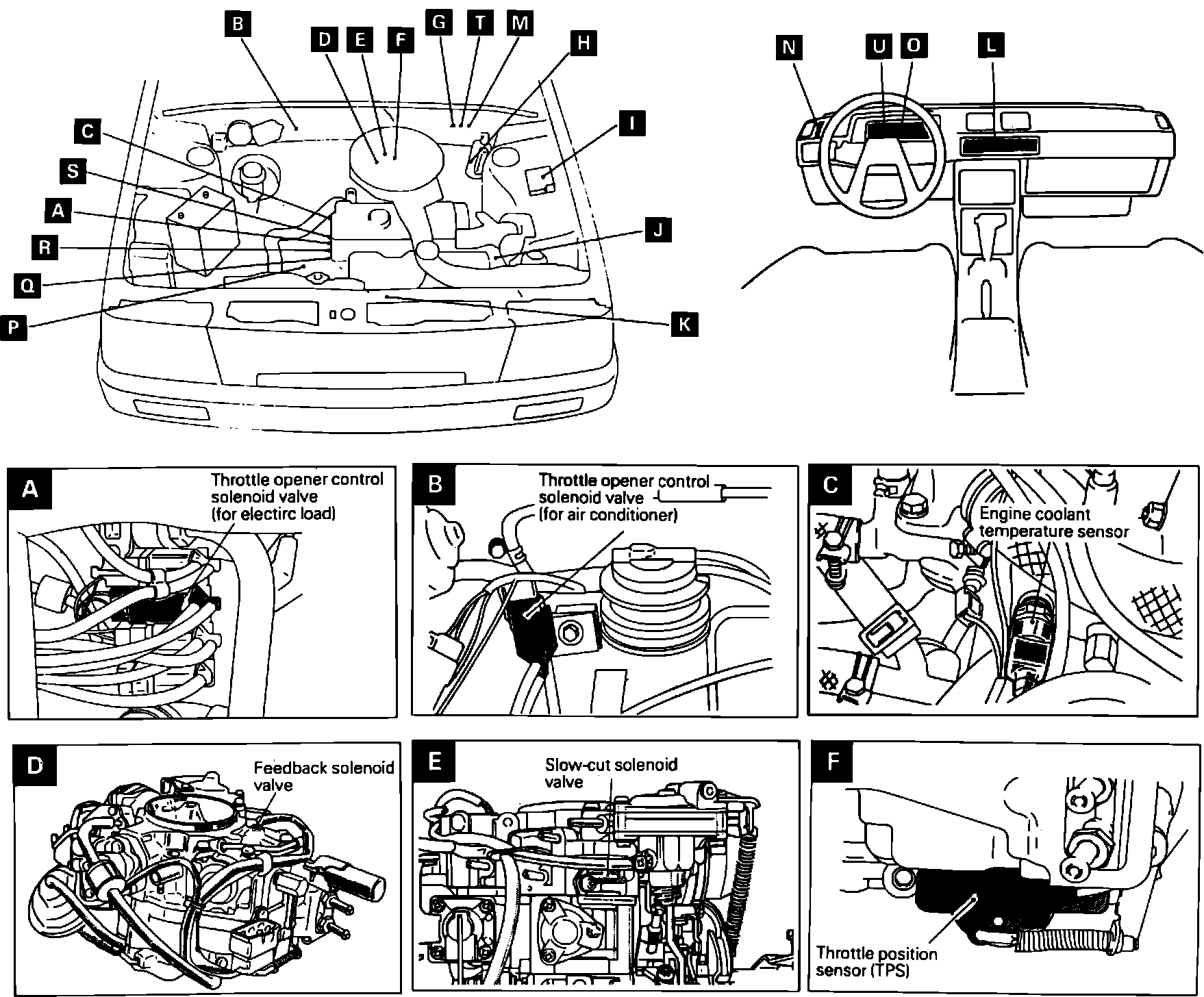

Feedback Carburetor System Component Location (Part 1 Of 2).:

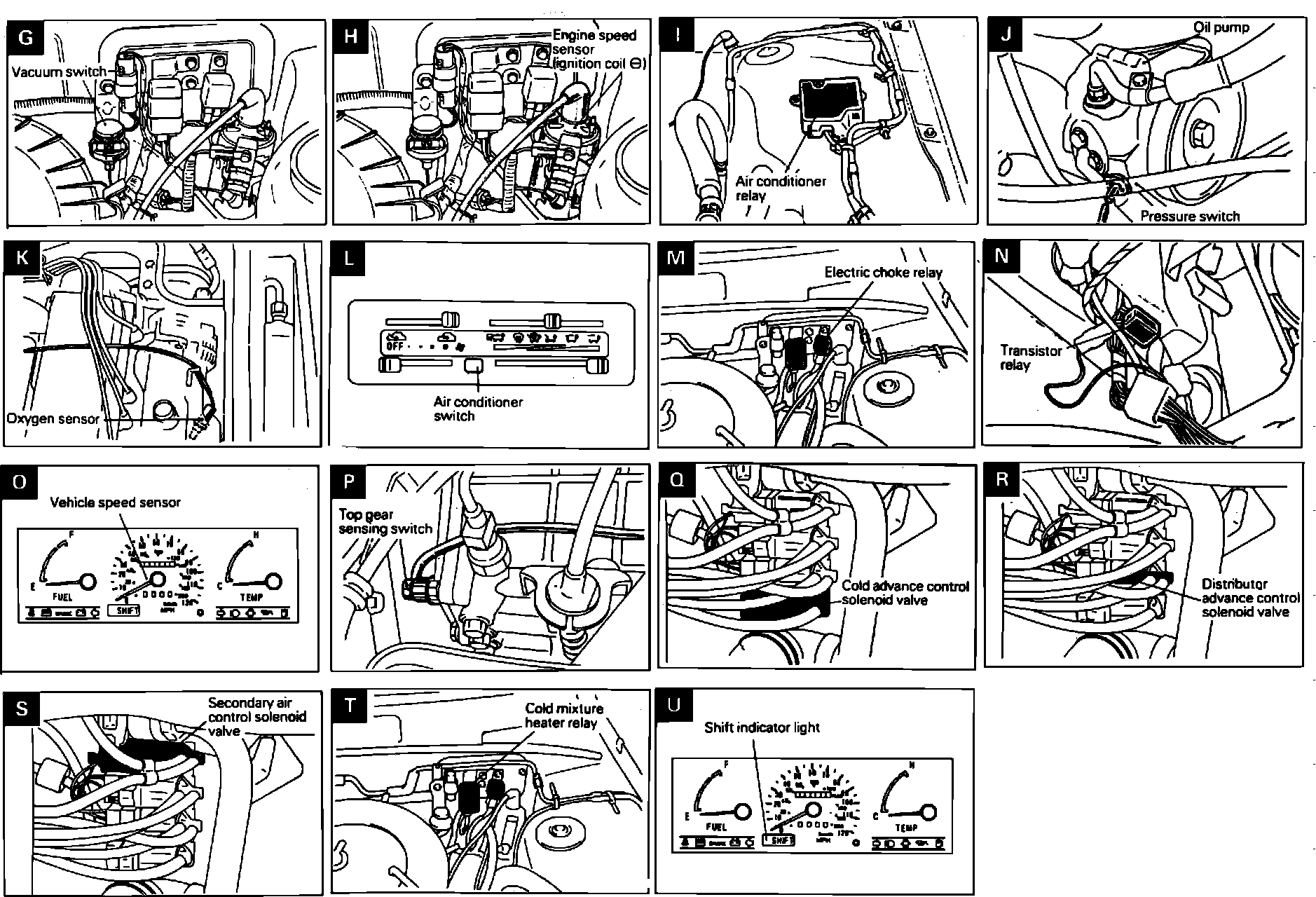

Feedback Carburetor System Component Location (Part 1 Of 2).:

Near LH Fender Apron

Applicable to: 1987-88 Colt

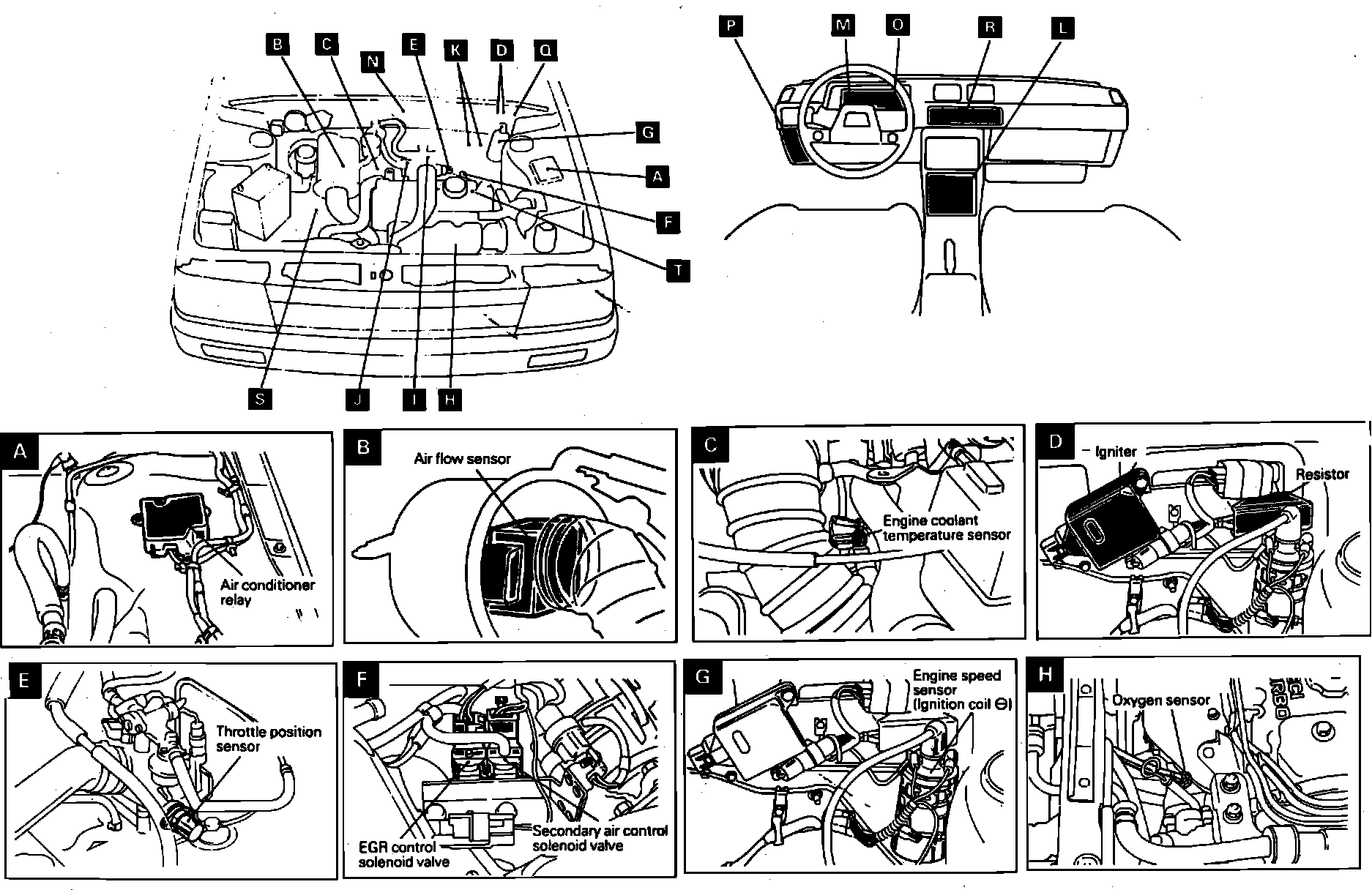

Multi-Point Injection System Component Location (Part 1 Of 2).:

Multi-Point Injection System Component Location (Part 1 Of 2).:

Near LH Fender Apron

Applicable to: 1988 Colt
