Home >> Plymouth >> 1988 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lighting

Interior Lighting

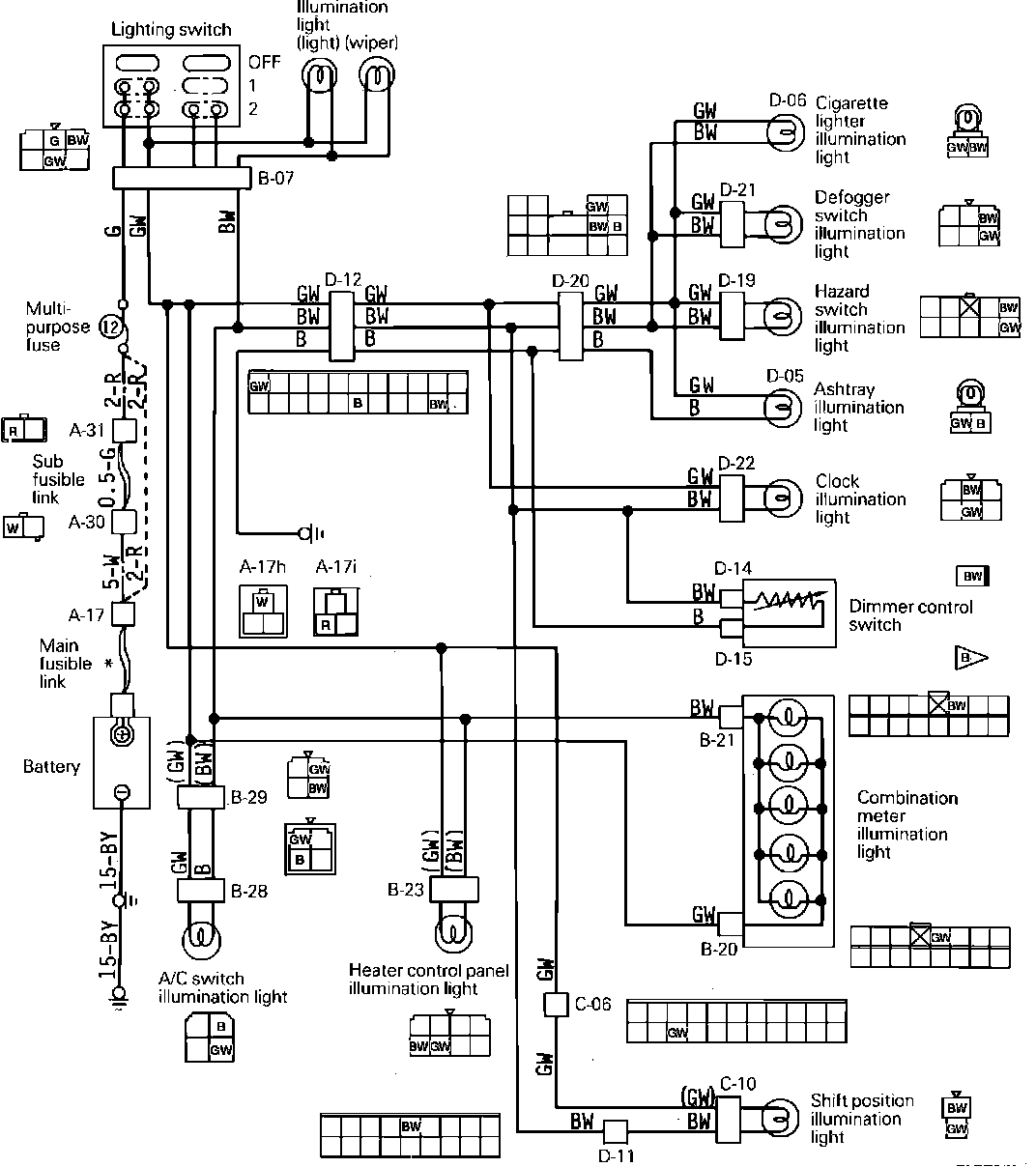

Instrument Panel & Interior Illumination:
