Plymouth
>>
1988
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
With EFI
With EFI

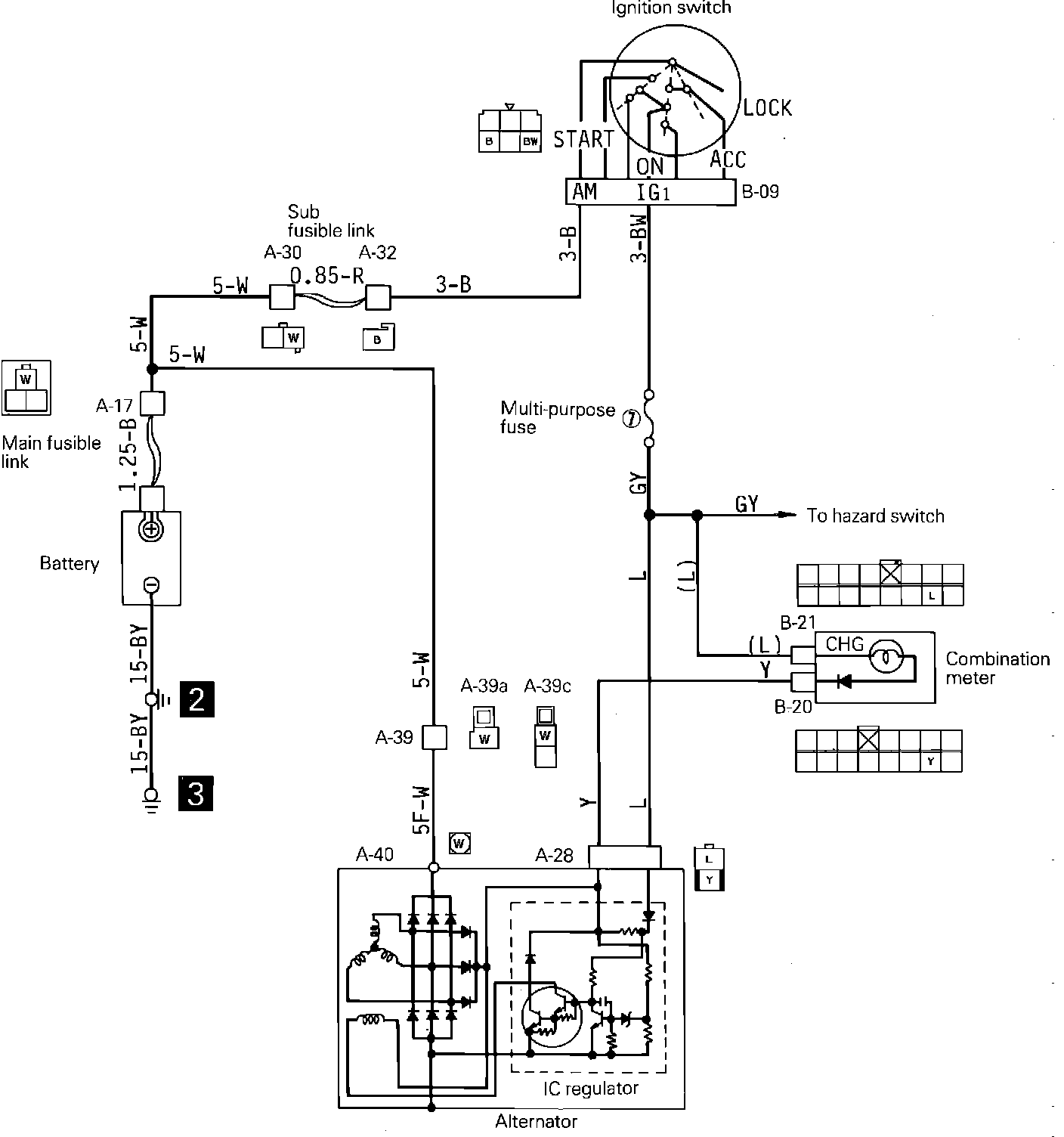

Charging System - Fuel Injected:
