Home >> Plymouth >> 1988 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Schematics

System Schematics

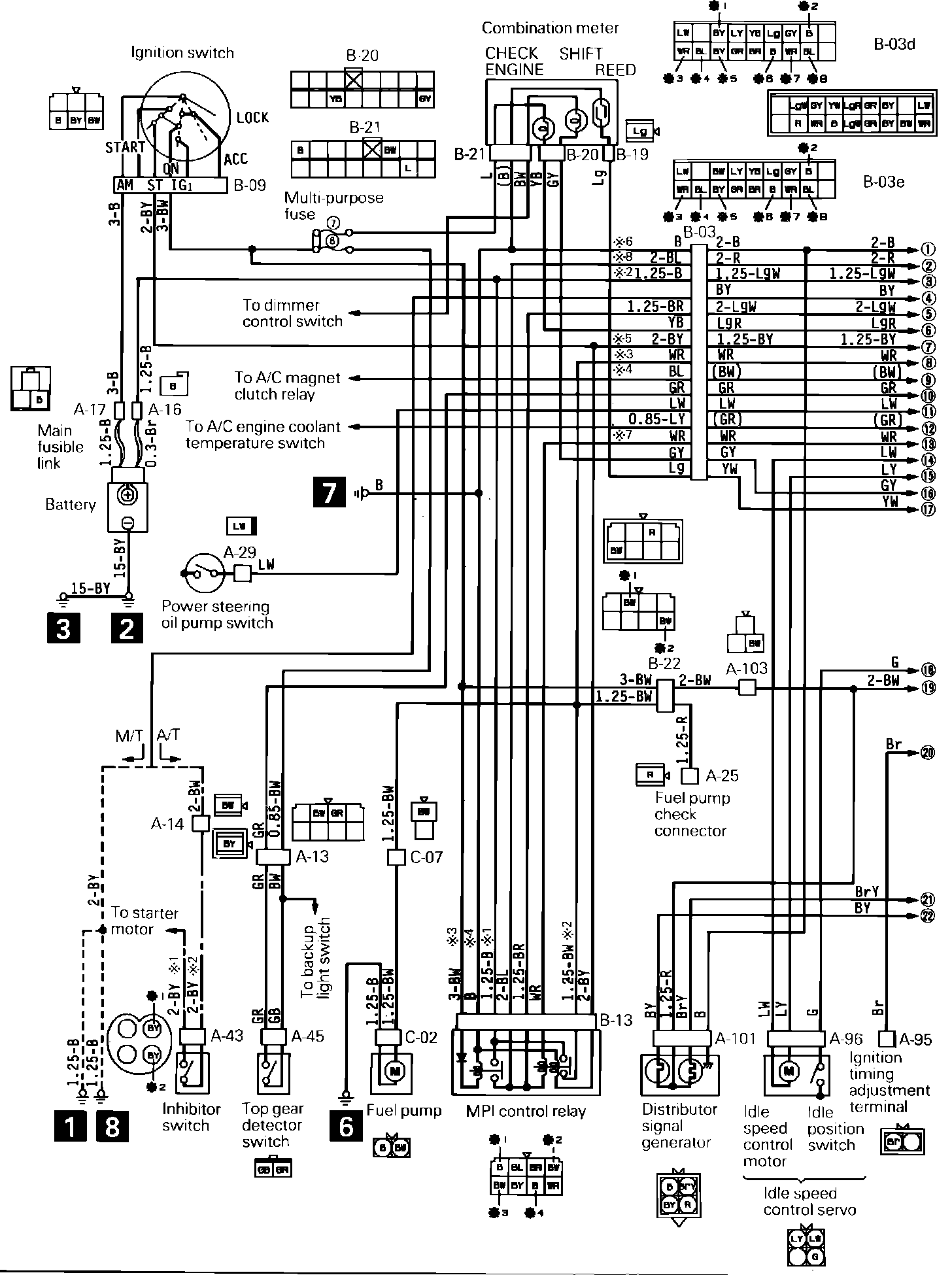

MPI wiring schematic (Part 1 of 2):

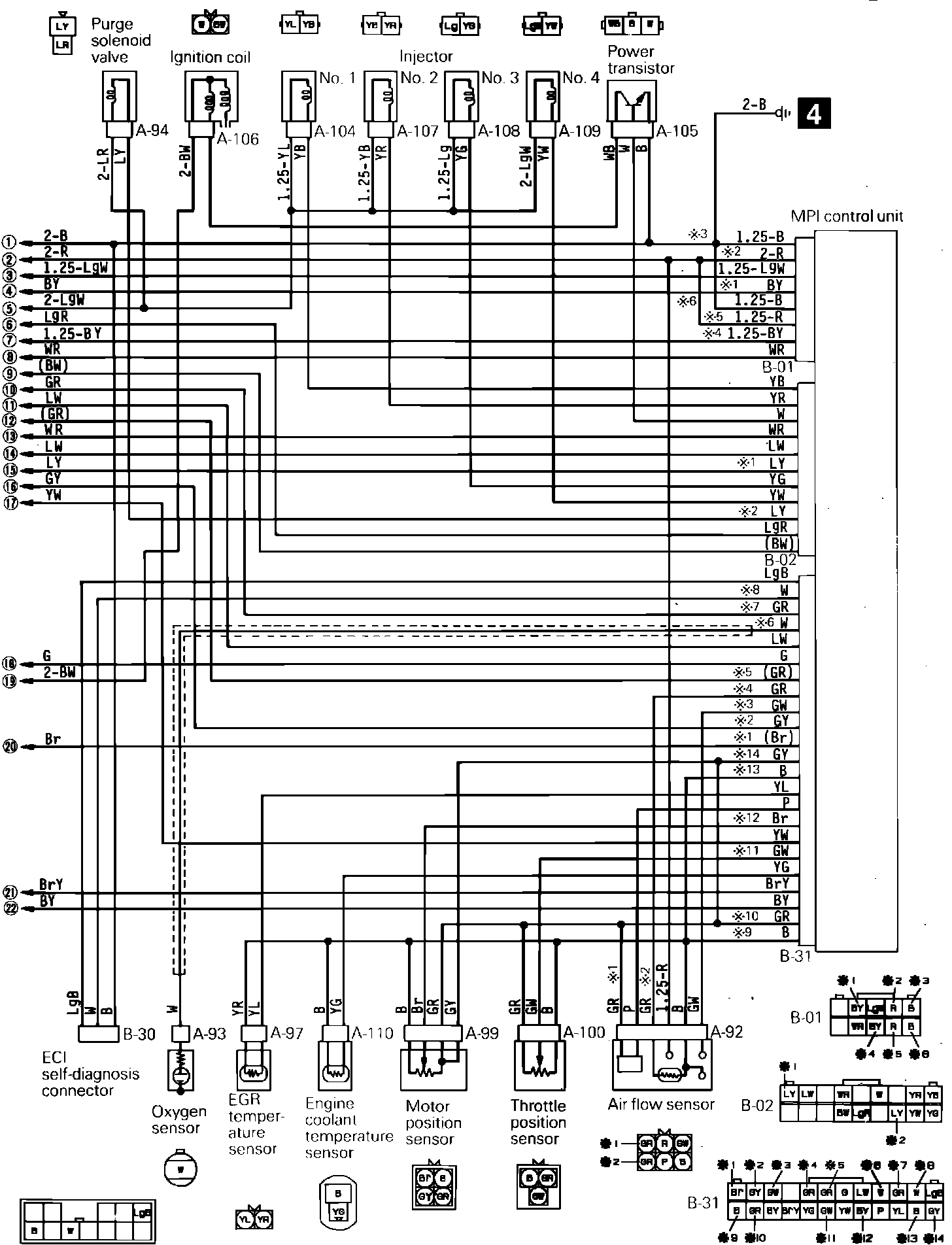

MPI wiring schematic (Part 2 of 2):
