Maintenance Required Lamp

This lamp will be illuminated at 50,000, 80,000, 100,000 and 150,000 miles to indicate interval for emission control system inspection.

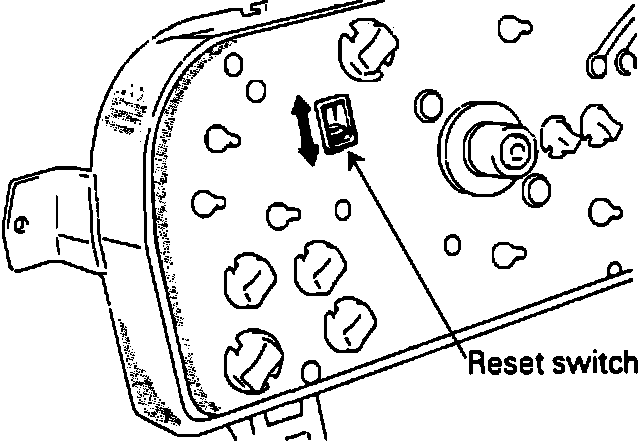

Fig. 1 EGR Or Maintenance Required Lamp Reset Switch Location:

RESET PROCEDURE
After performing emission control system inspection at the 50,000, 80,000 or 100,00 mile interval, the lamp can be reset by moving the reset switch lever located at the rear of the instrument cluster. At the 150,000 mile interval, after performing inspection, remove bulb from lamp socket.
