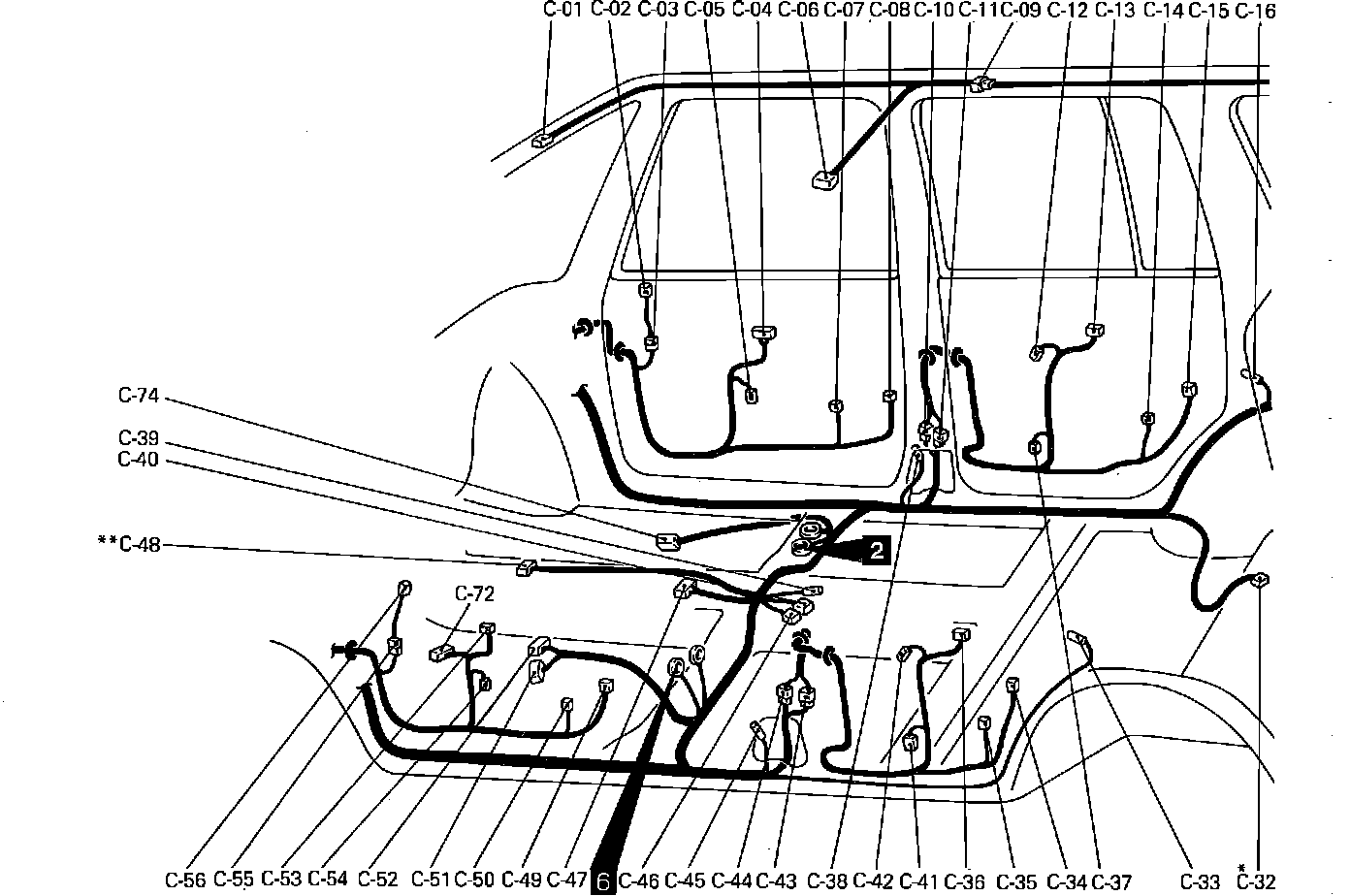

Connectors C01 - C30

C Connectors:

C01: Reading Light

C02: Remote Control Mirror

C03: Door Harness (Front) And Mirror Harness Connection

C04: Power Window Switch

C05: Power Window Motor

C06: Dome Light

C07: Door Light

C08: Door Lock Motor

C10: Body Harness (Rear) And Door Harness (Rear) Connection

C11: Body Harness (Rear) And Door Harness (Rear) Connection

C12: Speaker

C13: Power Window Switch

C14: Door Light

C15: Door Lock Motor

C16: Door Switch

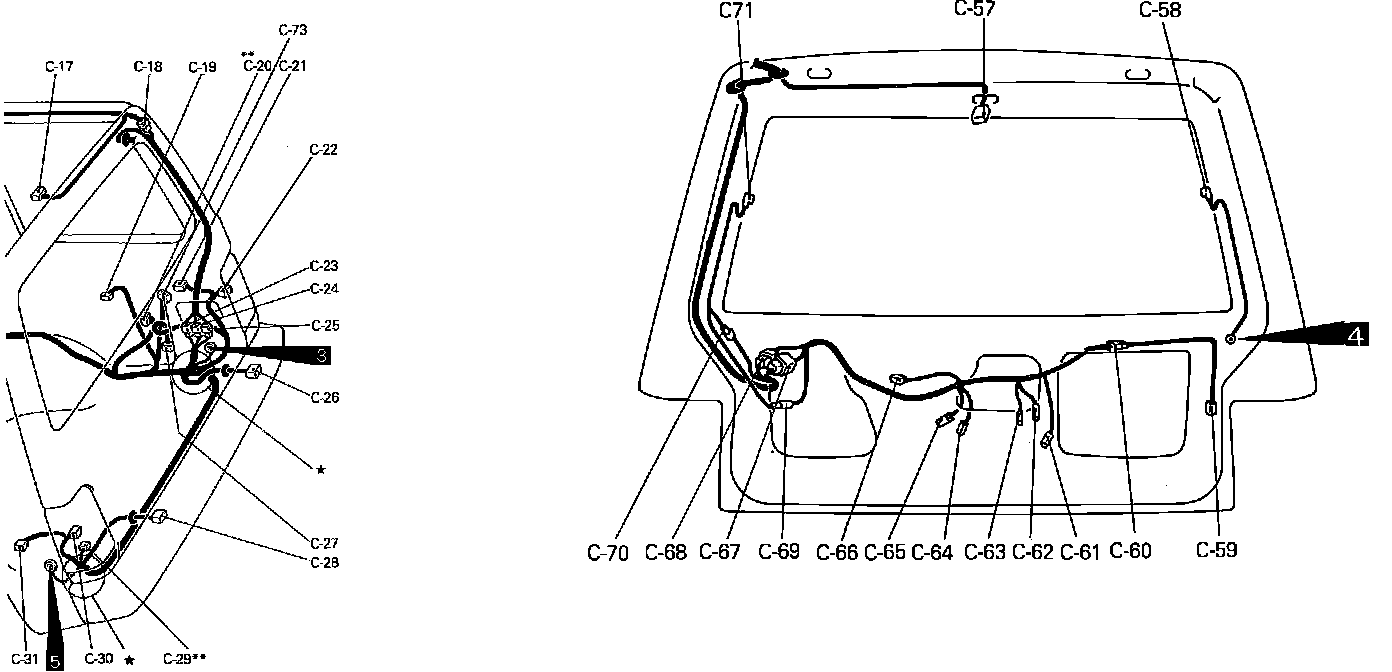

C17: Cargo Light

C18: Liftgate Harness A And Dome Light Harness Connection

C19: ASC Unit

C20: 4WD Control Unit

C21: Rear Side Marker Light

C22: Rear Combination Light

C23: Body Harness (Rear) And Liftgate Harness A

C24: Body Harness (Rear) And Liftgate Harness A

C25: Body Harness (Rear) And Liftgate Harness A

C26: Back Up Light

C27: Rear Window Washer Motor

C28: Back up Light

C29: Fuel Gauge Unit (4WD)

C30: Rear Combination Light
