D Connectors

D Connectors:

D Connectors:

D01: Liftgate Lock Switch

D02: Speaker (Front L.H.)

D03: Rear Wiper And Washer Switch

D04: Clock

D05: Defogger Switch

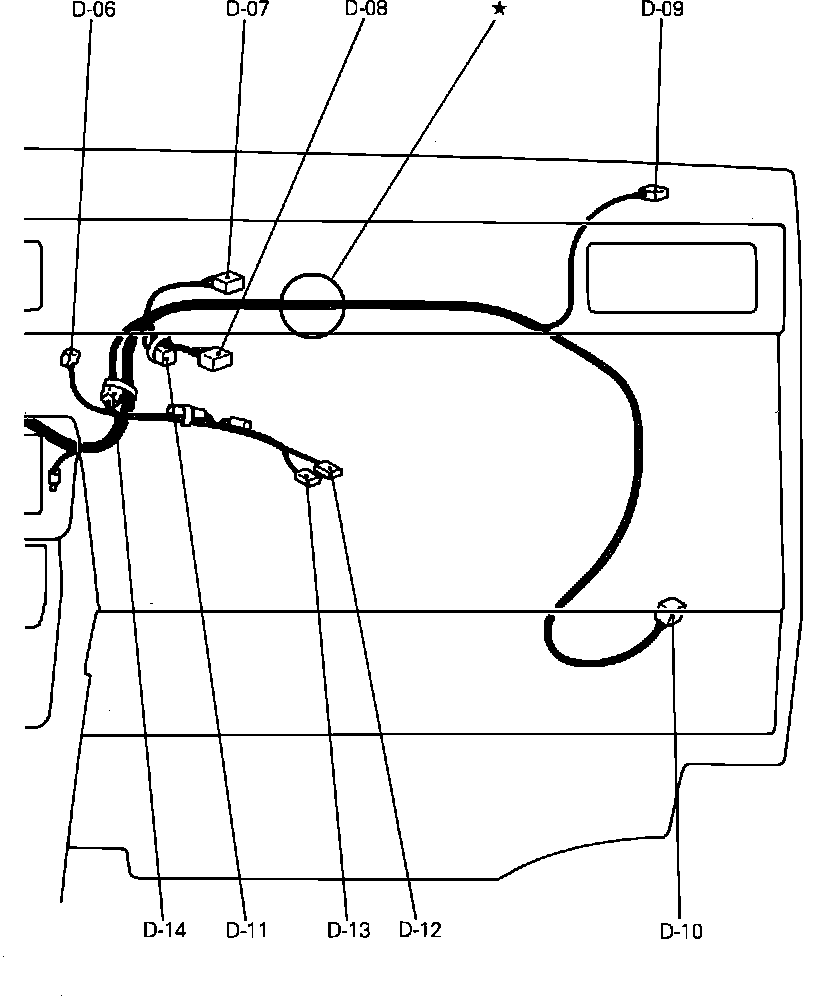

D06: Air Conditioner Switch

D07: Heater Relay

D08: Blower Motor Switch

D09: Speaker (Front L.H.)

D10: Blower Motor

D11: Auxiliary Terminal

D12: Thermo Switch

D13: Thermo Switch

D14: Instrument Harness And Air Conditioner Harness Connection

D15: Cigar Lighter

D16: Cigar Lighter

D17: Radio

D18: Radio

D19: Spare Terminal

D20: Dimmer Control Switch

D21: Dimmer Control Switch
