Home >> Plymouth >> 1988 >> Colt Vista 2WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Dome Lamp

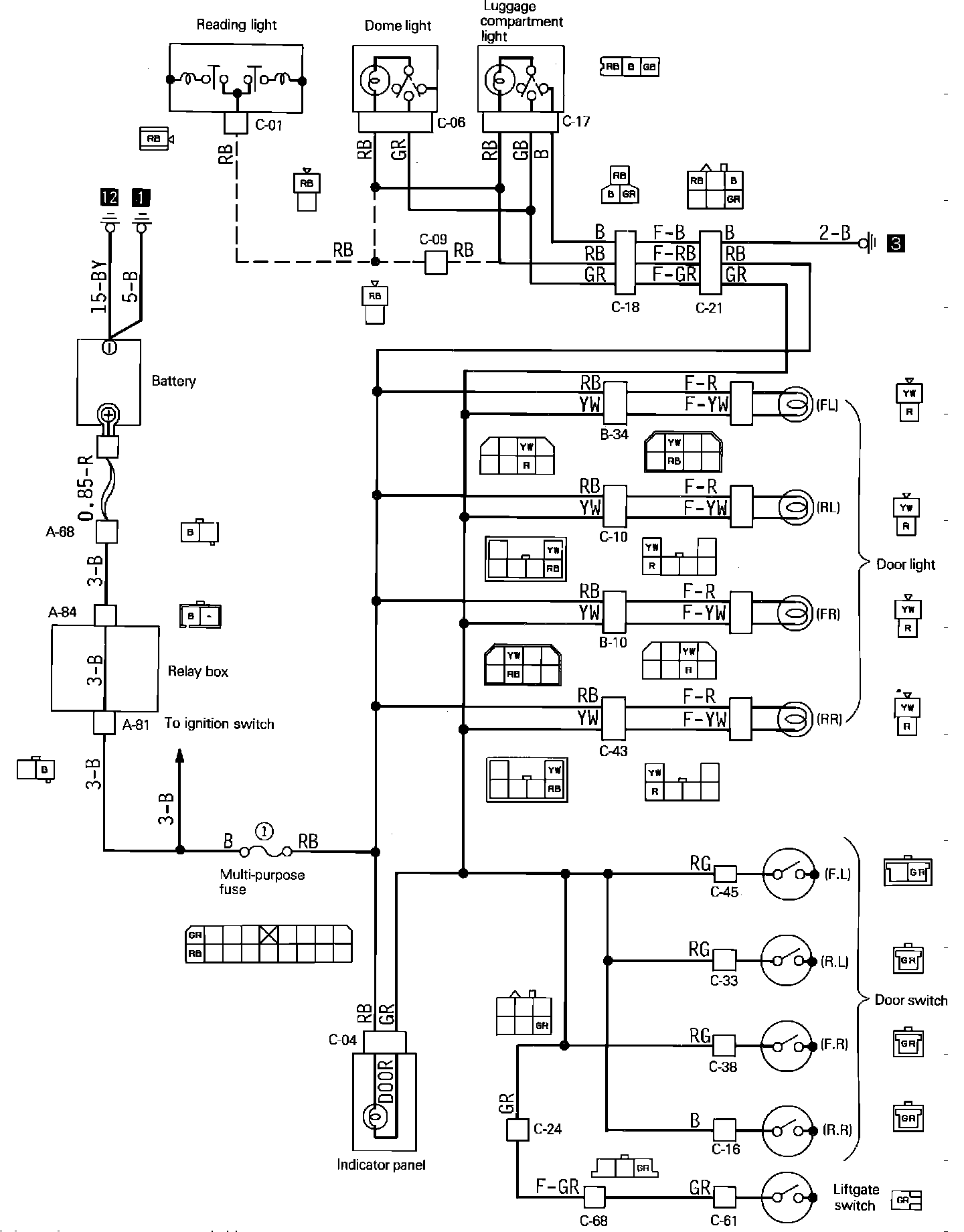

Dome Lamp

Dome Lamp & Other Interior Lights:
